NG6 (D03) Sub-Plate 1 Station without Relief Valve 315bar

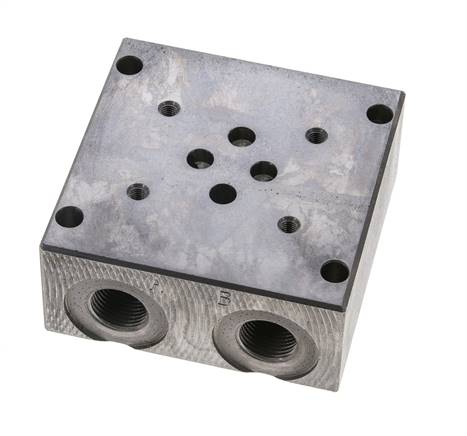

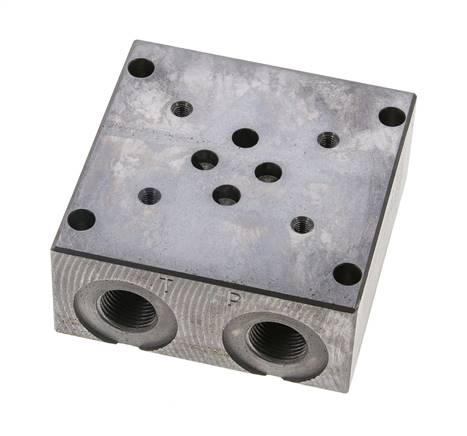

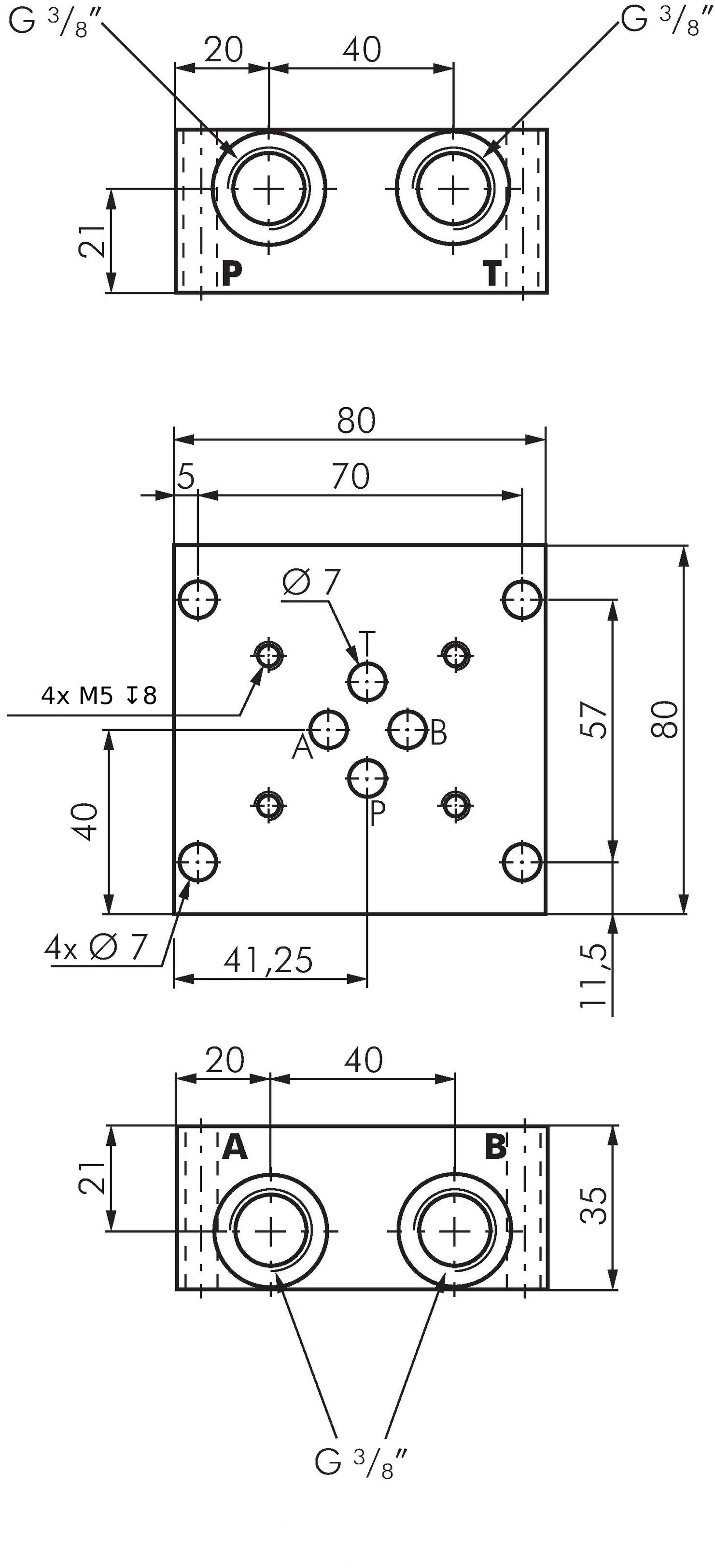

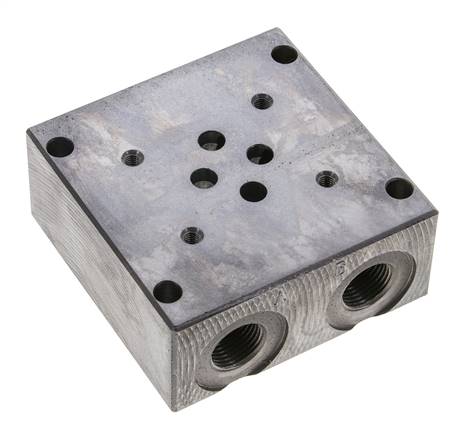

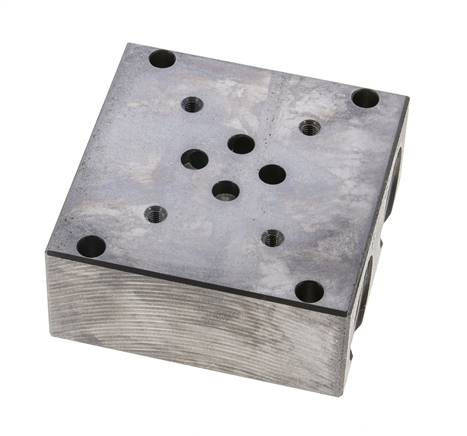

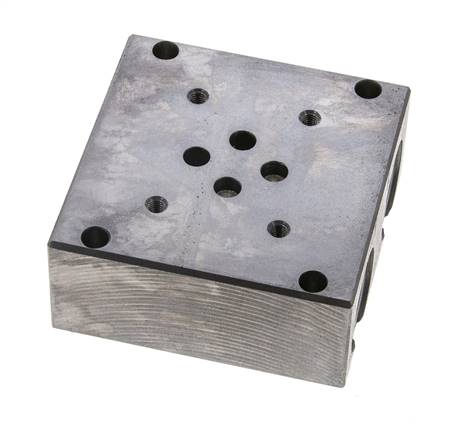

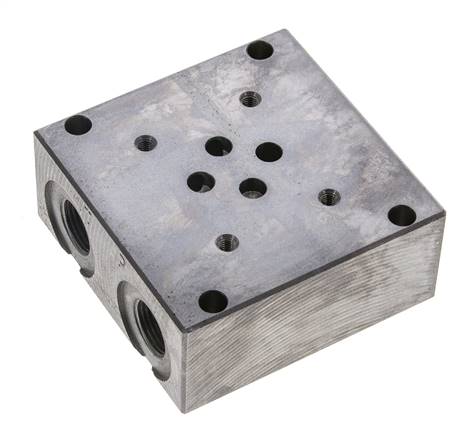

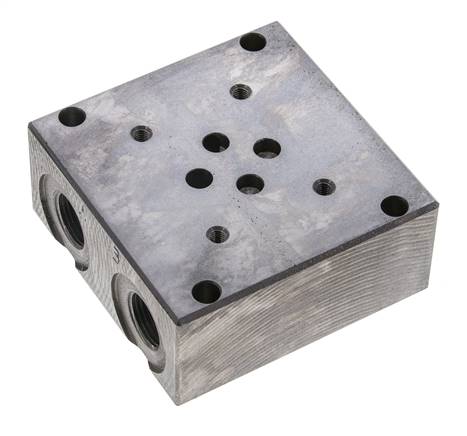

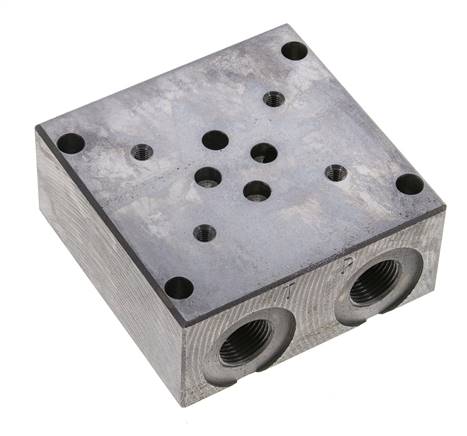

Single sub-plate for one NG6 / D03 valve, up to 315 bar and 50 l/min, without pressure relief valve. All four ports are G3/8: P and T on one side, A and B on the opposite side. Grey cast iron, length 80 mm.
- Regular price
- $219.74 USD
We sell only to registered businesses
Description
Unlike the multi-station plates, P and T are not drilled through, and the plate is fixed from above through four holes for M5 screws. It carries up to 50 l/min, more than the multi-station plates. Fix the valve or valve stack with four M5 socket head screws of property class 12.9, not included. Protect the circuit with a separate pressure relief valve, or choose the single sub-plate with relief valve.
Pros:
- Up to 50 l/min, more than the multi-station plates
- Compact single sub-plate, 80 mm long
- Mounts from above with four M5 screws
Cons:
- P and T not drilled through - for a through supply, choose a multi-station plate
- No relief valve - fit one in the circuit, or choose the plate with relief valve
- Valve fixing screws not included
Series:
Cast iron sub-plates for NG6 / D03 valves (DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03, NFPA D03), with one to eight stations. The valves or valve stacks sit on top. Each station has its own A and B ports (G3/8) on the side, while P and T (G1/2) run through the plate and can be used from either end. The plates mount with M8 threads on the end faces or through lengthwise holes for M5 screws. Two versions are available: with a built-in pressure relief valve adjustable from 100 to 315 bar, or without. Operating pressure up to 315 bar, nominal flow up to 30 l/min (single plate without relief valve: 50 l/min), -20 to +80 °C. Valves are fixed with M5 socket head screws of property class 12.9, tightened to 8.9 Nm.
