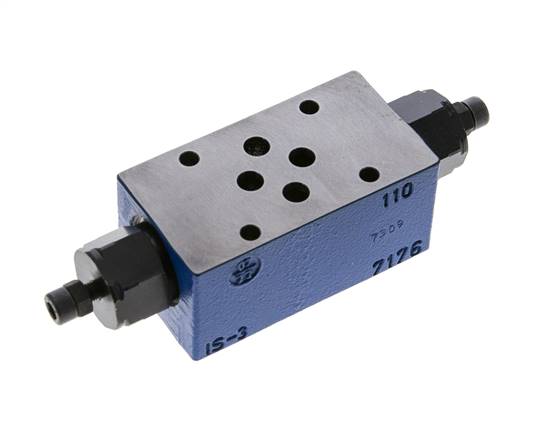

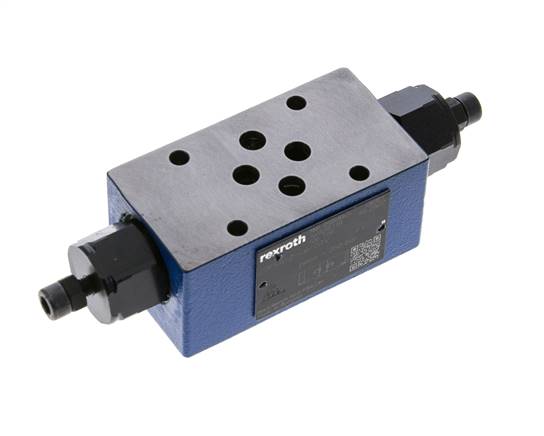

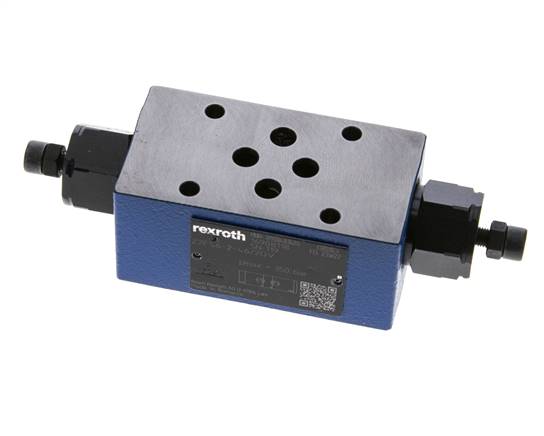

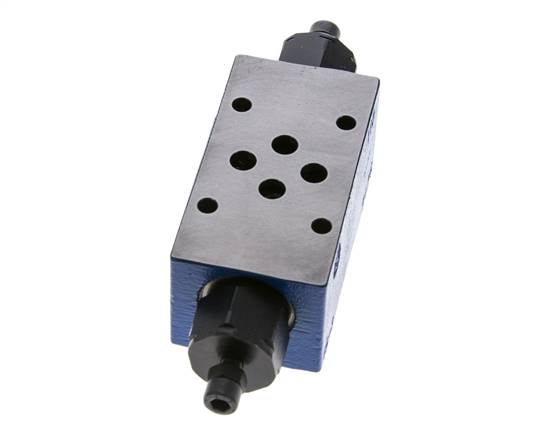

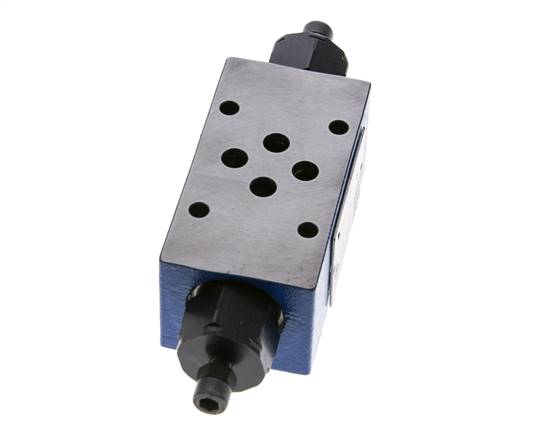

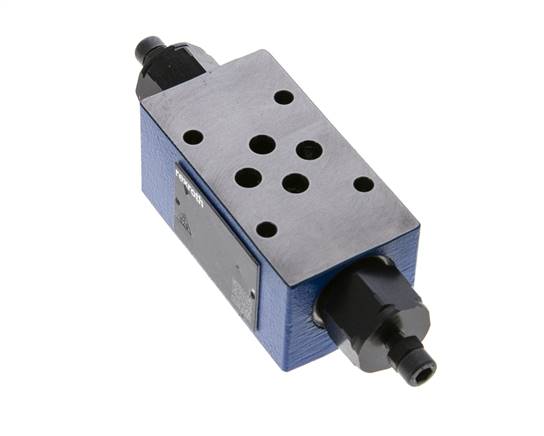

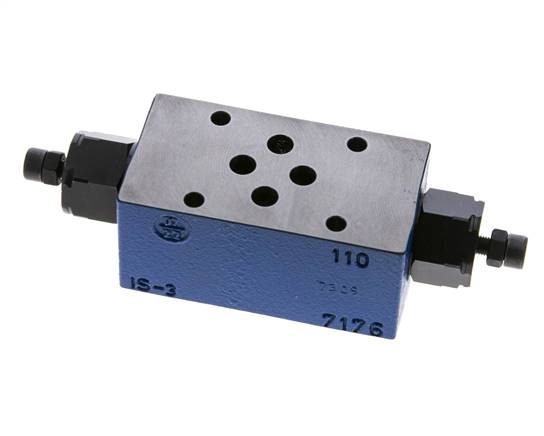

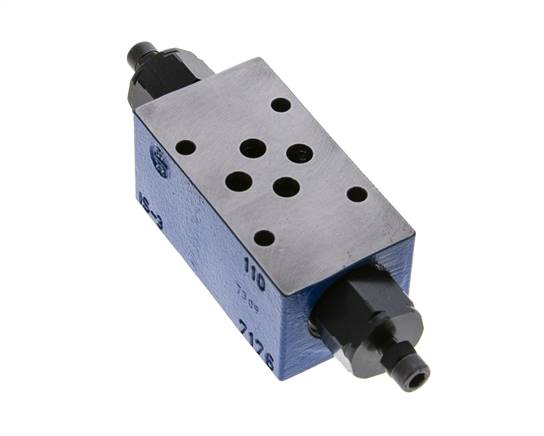

NG6 (D03) Sandwich Throttle Check Valve A & B - Rexroth

Use it to set the speed of a cylinder or motor in both directions, each set separately. The flow in the other direction passes freely through the check valves. Mounted for meter-out, it throttles the return flow and keeps the actuator under control even when the load pulls on it. Turn the plate over for meter-in. Operating pressure up to 315 bar. It is supplied with its seals, but without fixing screws. Fix the stack with four M5 socket head screws of property class 12.9.

Pros:

• Sets the speed in both directions, each separately
• Meter-in or meter-out: turn the plate over to change the throttle direction
• Standard NG6 / D03 interface, stacks between valve and sub-plate

Cons:

• Supplied without fixing screws
• Not pressure-compensated: the set speed changes when the load pressure changes

Series:

Bosch Rexroth Z2FS 6 sandwich throttle check valves for NG6 / D03 valve stacks (DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03, NFPA D03). Mounted between the directional valve and the sub-plate, they set the speed of a cylinder or motor with an adjustable throttle, while a check valve lets the flow in the other direction pass freely. Depending on which way round they are mounted, they throttle the flow into the actuator (meter-in) or out of it (meter-out). Versions with a throttle in line A, in line B, or in both lines. Ductile iron body, steel internals and FKM seals, for mineral-oil hydraulic fluids of 10 to 500 mm²/s from -20 to +80 °C. Operating pressure up to 315 bar, flow up to about 60 l/min with up to 40 l/min recommended. The valves are supplied with seals, without fixing screws; the stack is fixed with M5 socket head screws of property class 12.9.
