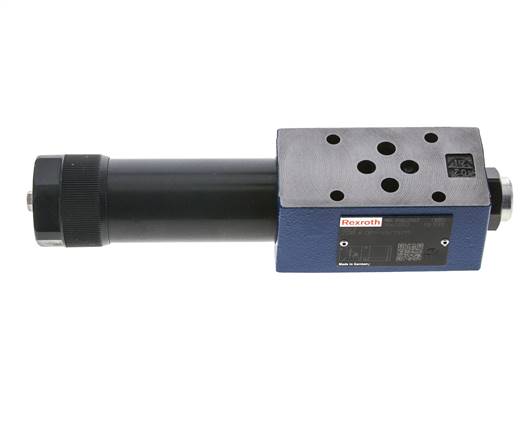

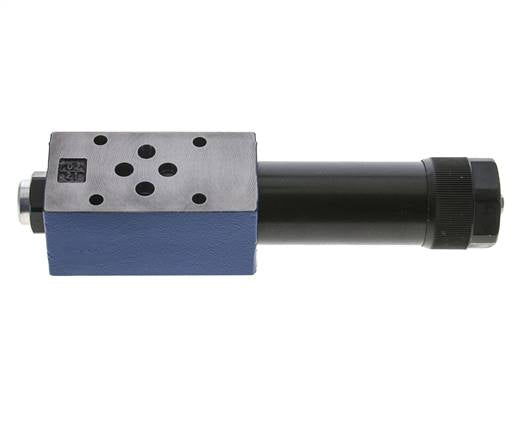

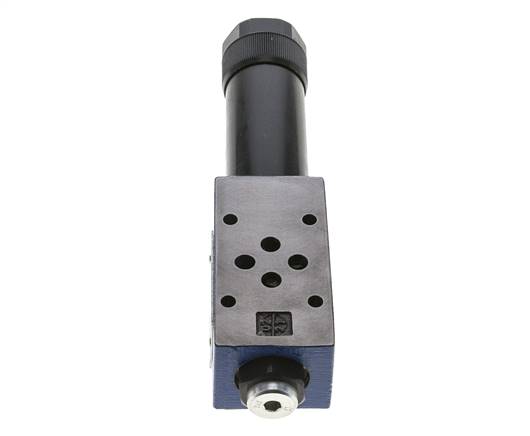

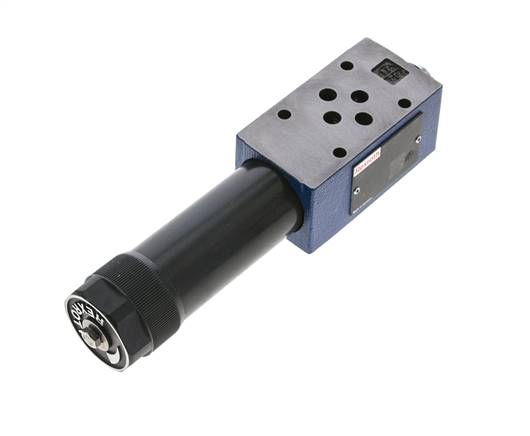

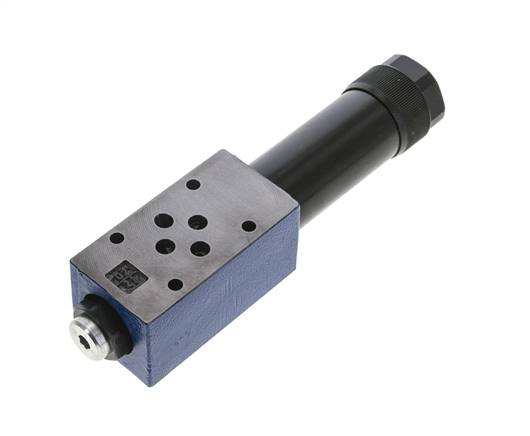

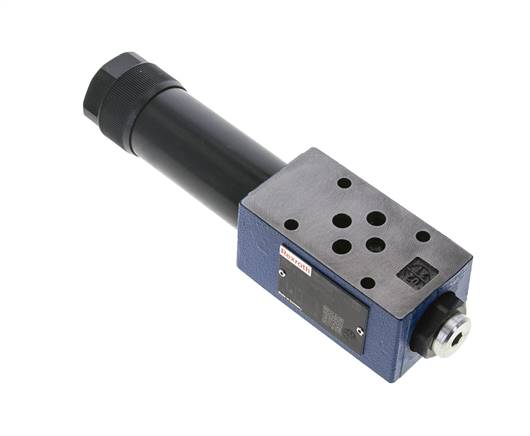

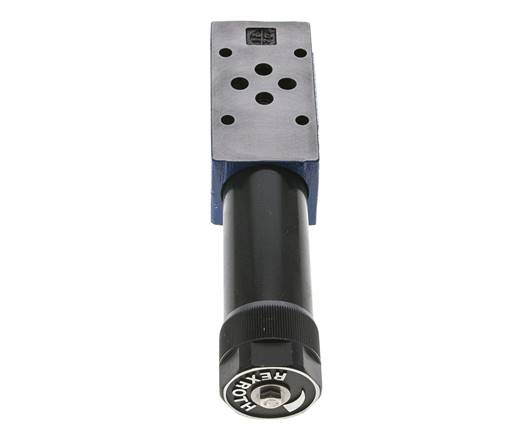

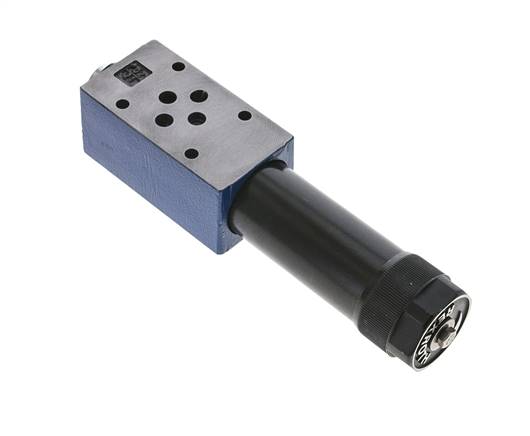

NG6 (D03) Sandwich Pressure Reducing Valve P 210bar - Rexroth
NG6 / D03 sandwich pressure reducing valve, version P, adjustable up to 210 bar. It reduces the pressure in port P to a constant, lower value for the directional valve above it. G1/4 gauge port for checking the set pressure. Recommended flow up to 40 l/min, maximum about 60 l/min. Ductile iron body and NBR seals, for mineral oil of 10 to 500 mm²/s from -30 to +80 °C.
- Regular price
- $586.78 USD
We sell only to registered businesses
Description
Use it where one valve station needs a lower pressure than the rest of the circuit. Stack it between the NG6 directional valve and the sub-plate; several sandwich valves can be combined at one station. Operating pressure up to 315 bar. It is supplied with its seals, but without fixing screws. Fix the stack with four M5 socket head screws of property class 12.9.
Pros:
- Lower, constant pressure for one valve station
- G1/4 gauge port for checking the set pressure
- Standard NG6 / D03 interface, stacks between valve and sub-plate
Cons:
- Supplied without fixing screws
Series:
Bosch Rexroth ZDR 6 sandwich pressure reducing valves for NG6 / D03 valve stacks (DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03, NFPA D03). Mounted between the directional valve and the sub-plate, they keep the pressure at one valve station or in one line at a constant, lower value. Version P reduces the pressure in P, version A reduces it in consumer line A with a check valve for free return flow, and version B reduces the pressure in P controlled by the pressure in line B. Each version is available in pressure stages up to 75 or 210 bar and has a G1/4 gauge port. Ductile iron body, steel internals and NBR seals, for mineral-oil hydraulic fluids of 10 to 500 mm²/s from -30 to +80 °C. Operating pressure up to 315 bar, flow up to about 60 l/min with up to 40 l/min recommended. The valves are supplied with seals, without fixing screws; the stack is fixed with M5 socket head screws of property class 12.9.
