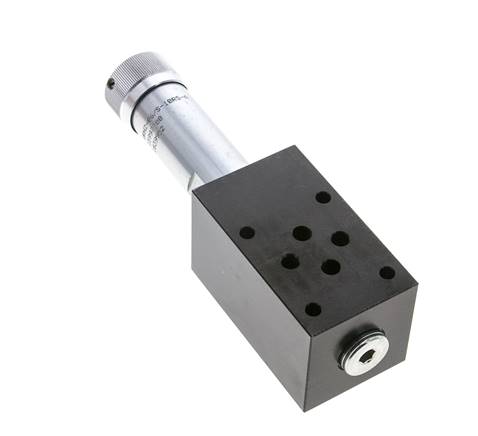

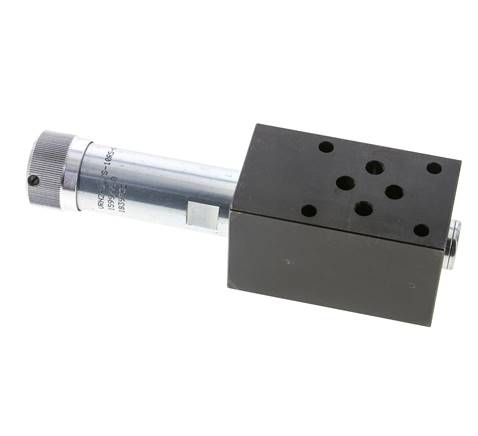

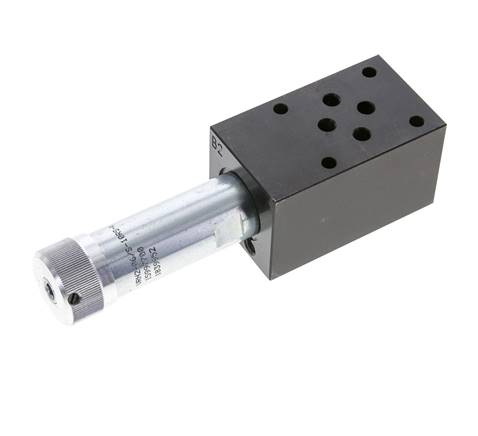

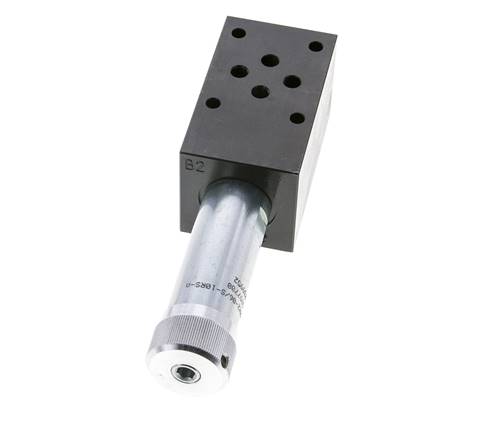

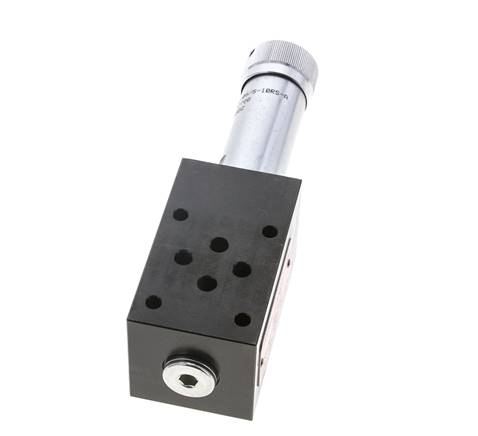

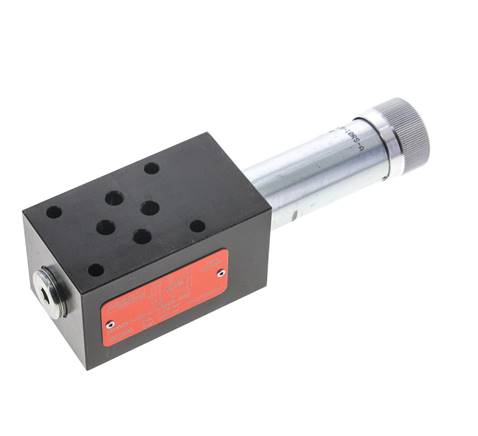

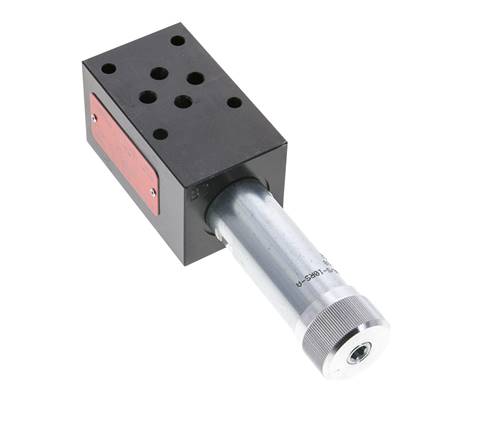

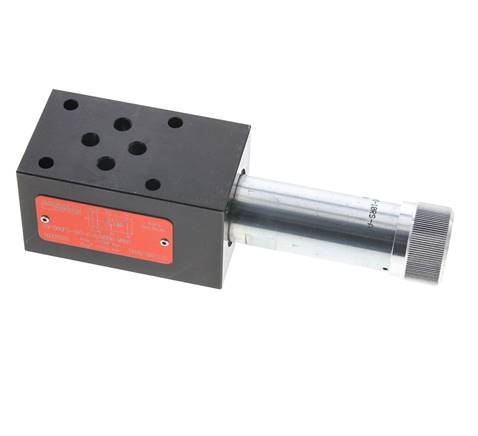

NG6 (D03) Sandwich Pressure Reducing Valve B 210bar

Use it where only the movement fed through port B needs a reduced pressure. Stack it between the NG6 directional valve and the sub-plate; several sandwich valves can be combined at one station. Operating pressure up to 320 bar. It is supplied with its seals, but without fixing screws. Fix the stack with four M5 socket head screws of property class 12.9.

Pros:

• Reduced pressure for the movement fed through port B
• G1/4 gauge port for checking the set pressure
• Standard NG6 / D03 interface, stacks between valve and sub-plate

Cons:

• Supplied without fixing screws

Series:

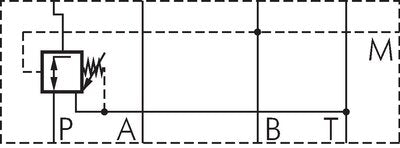

Tameson NG6 sandwich pressure reducing valves for NG6 / D03 valve stacks (DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03, NFPA D03). Mounted between the directional valve and the sub-plate, they keep the pressure at one valve station or in one line at a constant, lower value. Version P reduces the pressure in P, version A reduces it in consumer line A with a check valve for free return flow, and version B reduces the pressure in P controlled by the pressure in line B. Each version is available in pressure stages up to 100 or 210 bar and has a G1/4 gauge port. Ductile iron body, steel internals and NBR seals, for mineral-oil hydraulic fluids of 20 to 400 mm²/s from -30 to +80 °C. Operating pressure up to 320 bar, flow up to about 60 l/min with up to 40 l/min recommended. The valves are supplied with seals, without fixing screws; the stack is fixed with M5 socket head screws of property class 12.9.
