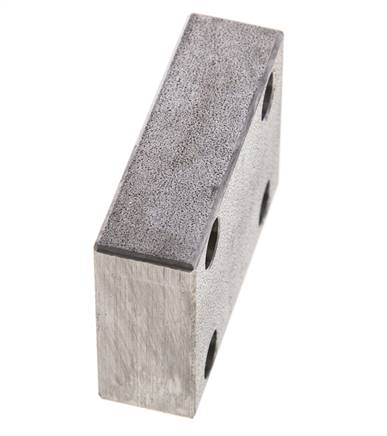

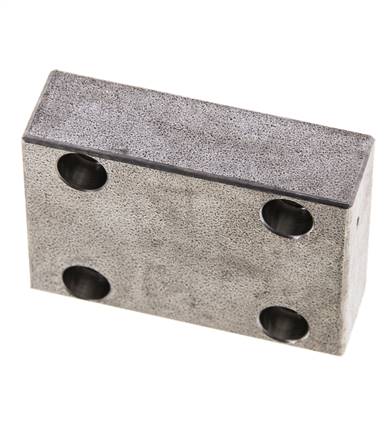

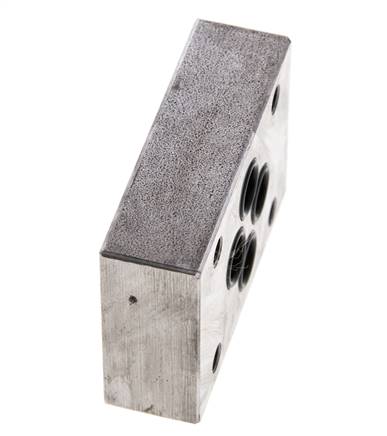

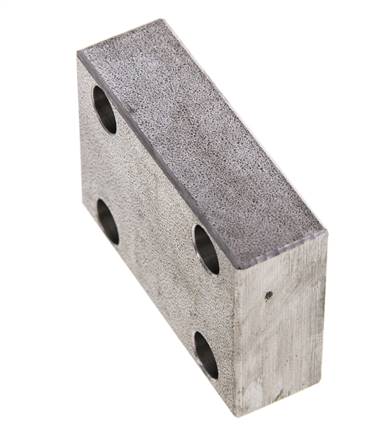

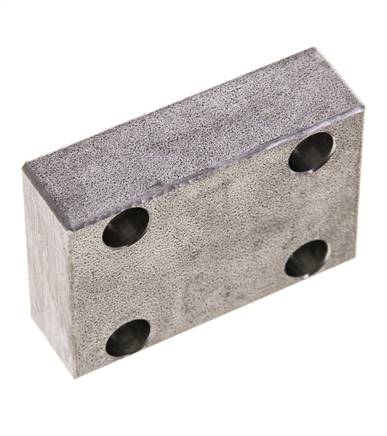

NG6 (D03) Blanking Plate for Unused Valve Stations

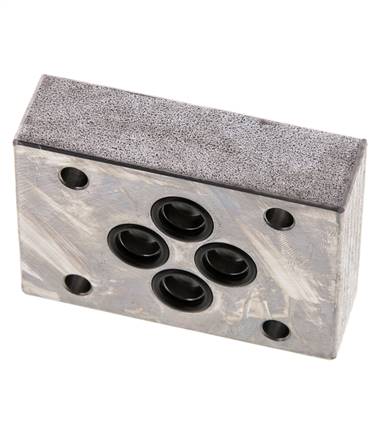

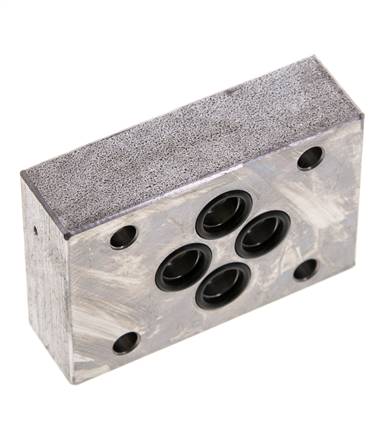

Blanking plate for NG6 / D03 sub-plates and manifolds (ISO 4401-03, CETOP 3, NFPA D03). Closes an unused valve station: the ports P, T, A and B are sealed with O-rings. Steel plate with NBR seals, fixed with four M5 socket head screws of property class 12.9.
- Regular price
- $124.23 USD
We sell only to registered businesses
Description
On a multi-station sub-plate, every station is connected to the common P and T channels. Where a station has no valve, fit this plate to seal its ports and keep the circuit closed. A valve can be added to the station later by simply swapping the plate for it. The fixing screws are ordered separately.
Pros:
- Seals an unused station without changing the sub-plate
- Standard NG6 / D03 pattern, fits any NG6 sub-plate or manifold
- Station stays ready for a valve to be added later
Cons:
- Fixing screws not included
Series:
Spare parts and accessories for NG6 (D03) solenoid directional valves. Replacement solenoid coils are available in 12 V DC, 24 V DC and 230 V AC for Bosch Rexroth 4WE6 valves, and in 12 V DC for Argo-Hytos RPE3 valves. Choose the coil that matches the make and the voltage of the valve. The DC coils draw 30 W and the Bosch Rexroth AC coil 50 VA; all tolerate ±10 % voltage and are rated IP65 with the connector fitted. A pole tube seal kit renews the solenoid seals of Bosch Rexroth 4WE6 valves. A blanking plate closes unused valve stations on NG6 sub-plates and manifolds. Connectors and fixing screws are ordered separately.
