MURR Sensor/Actor Cable With Connector - 7000-12221-2140500

MURR Sensor/Actor Cable With Connector - 7000-12221-2140500
MURR Sensor/Actor Cable With Connector - 7000-12221-2140500

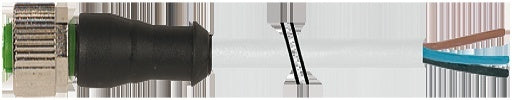

Image may vary slightly
See specifications for accurate information.
Reference: E33K3
Brand: MURR
Mfr. Part: 7000-12221-2140500

Murr sensor/actor cable with connector, cable entry position field side straight, cable entry position box side other, cable length 5m, cable jacket gray, 4 poles, according to standard IEC 61076-2-101, cable jacket polyvinyl chloride (PVC), nom. (measuring) current In 4A, cable type PVC cable. 4x 0.34mm².

View all
$17.04
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Murr sensor/actor cable with connector, cable entry position field side straight, cable entry position box side other, cable length 5m, cable jacket gray, 4 poles, according to standard IEC 61076-2-101, cable jacket polyvinyl chloride (PVC), nom. (measuring) current In 4A, cable type PVC cable. 4x 0.34mm².

Downloads

Specifications

Number of poles
4
Type of electrical connection, field-sided
M12
Type of plug-in contact, field sided
Female (bus)
Positioning cable feed, field-sided
Straight
Type of electrical connection, box-sided
Free conductor end
Type of plug-in contact, box-sided
Male (plug)
Positioning cable feed, box-sided
Other
Cable length (m)
5
Material of cable sheath
Polyvinyl chloride (PVC)
Halogen free
No
Colour cable sheath
Grey
With LED indication
No
Screened
No
Cable type
Multi-core
Vulcanize
Yes
Material contact body
CuZn
Material of contact surface
Gold
Permitted cable outer temperature after assembling without vibration (°C)
-30 °C to 80 °C
Permitted cable outer temperature during assembling/handling (°C)
-5 °C to 80 °C
Rated current In (A)
4
Rated voltage (V)
250
Continuity resistor (mOhm)
0
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP67
