Image may vary slightly
See specifications for accurate information.
Reference: P2638
Brand: Knocks
Mfr. Part: L.55 N M12

This G 1 inch pneumatic lubricator introduces a fine mist of oil into the air to reduce internal friction in components. Suitable for a 16.0 bar (232 psi) max input and temperatures between -10 and 60 °C (14 and 140 °F). The min flow for oil drip is 800 l/min. The oil capacity is 450 cm3.

View all
$424.79
excl VAT
In stock +12 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 12 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 14 - 15 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

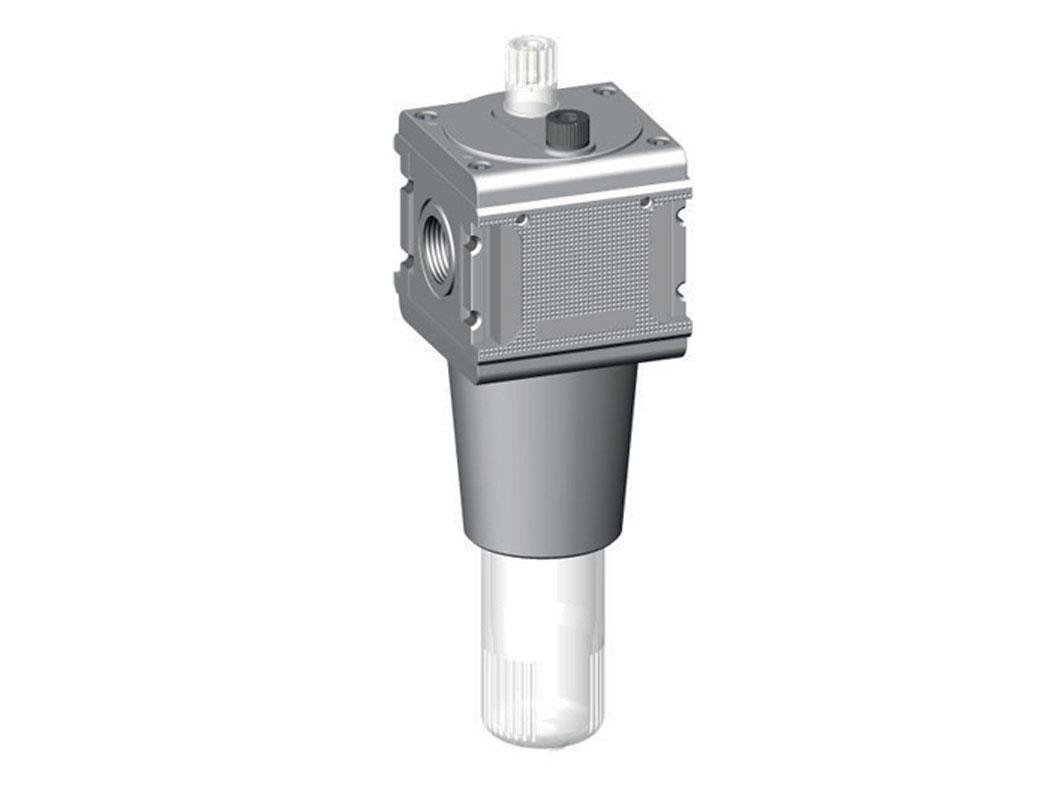

The lubricator introduces a fine mist of oil into the pneumatic air to reduce internal friction of pneumatic parts. Most modern pneumatic equipment doesn't need lubrication, only use a lubricator if downstream equipment requires it. The recommended lubricating oil type is ISO-VG32 turbine oil. This model has G 1 inch ports.

The maximum input pressure is 16.0 bar (232 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). The lubricator requires a minimal flow rate of 800 l/min and can hold 450 cm3 of oil. The housing material is made out of zinc die-cast and the lubricator has a bowl made of polycarbonate (PC). It has a position indicator to see the bowl level.

Mounting brackets need to be ordered separately.

Downloads

Manual Multifix
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1 inch

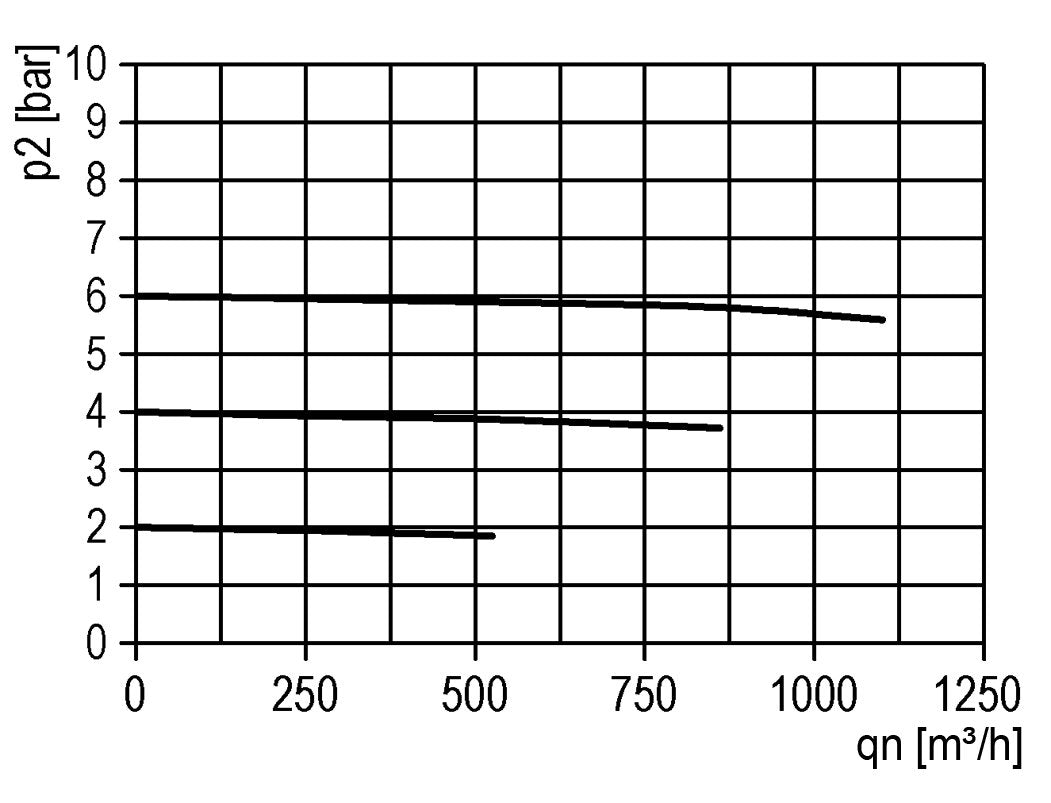

Max flow rate (l/min)
18000
Max. pressure difference at 20 °C (bar)
Maximum pressure difference between output and input at room temperature.
16
Min pressure (bar)
0
Connection type
Inner thread cylindrical BSPP-G

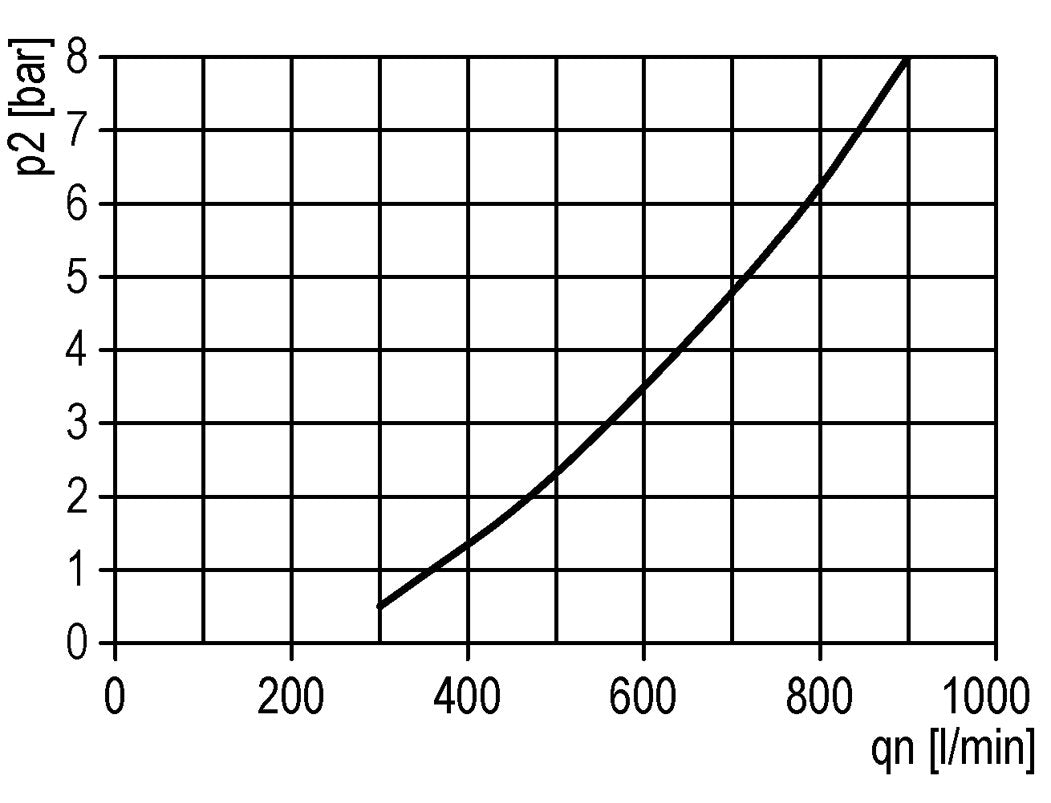

Min. flow for oil drip (l/min)
800
Lubricating oil capacity (cm³)
450
FRL feature
With electronic level monitoring, Micro oil-fog lubricator
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Zinc die-cast
With mounting bracket
No
Model
Multifix 5
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
60

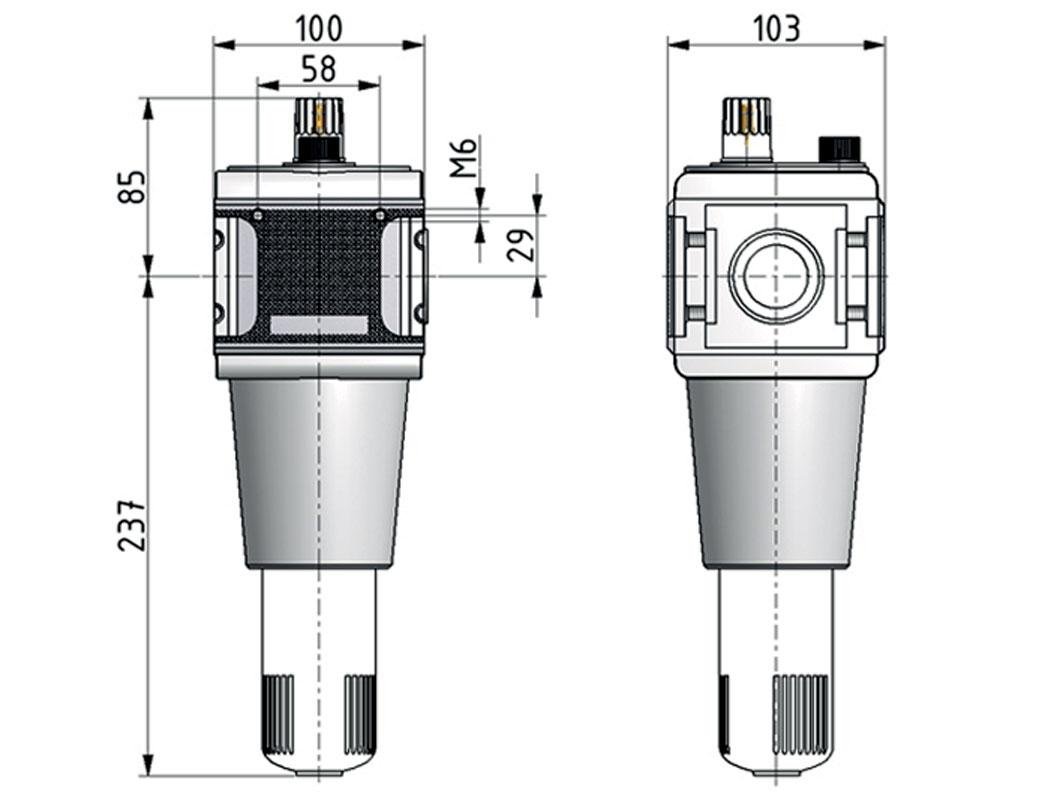

Height (mm)
The product's height without packaging.
323
Length (mm)
The product's length without packaging.
100
Container material
Polycarbonate (PC)
