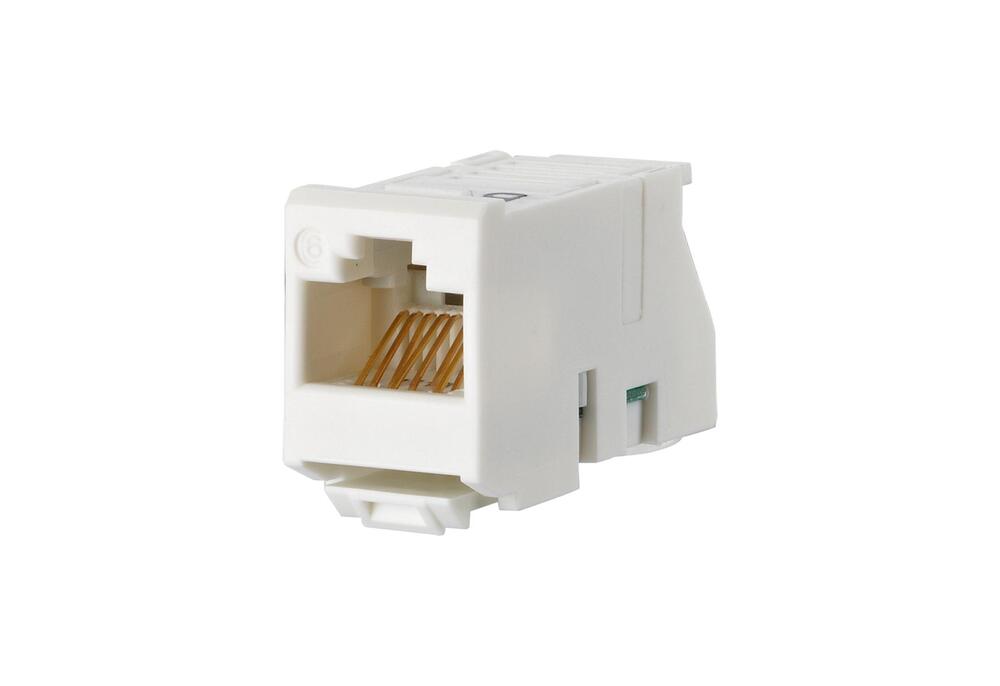

Metz Connect Modular Connector - 130909-I [2 Pieces]
![Metz Connect Modular Connector - 130909-I [2 Pieces]](http://tameson.com/cdn/shop/files/e2gth-00.802b7403.jpg?v=1730591075)
![Metz Connect Modular Connector - 130909-I [2 Pieces]](http://tameson.com/cdn/shop/files/e2gth-00.802b7403.jpg?height=232&v=1730591075&width=232)
Unshielded cat.6 class e uae module. For gigabit ethernet. Compliance with class e to iso/iec 11801 ed.2.2:2011-06, din en 50173-1:2011-09. Suitable for remote powering (poe, poe plus and upoe) and hdbaset. Easy to install connection of 2 to 4-pair data lines awg 24/1 - 22/1 and stranded wires with 7 copper conductors awg 26/7 to btr 8-fold insulation displacement connectors (idc). Optional strain relief with cable tie at uae module. Installation shape: module. Variants: designation of conductor colors marking to t568a, t568b.
Contains 2 pieces
- Regular price
- $6.90 USD
We sell only to registered businesses
Description
Unshielded cat.6 class e uae module. For gigabit ethernet. Compliance with class e to iso/iec 11801 ed.2.2:2011-06, din en 50173-1:2011-09. Suitable for remote powering (poe, poe plus and upoe) and hdbaset. Easy to install connection of 2 to 4-pair data lines awg 24/1 - 22/1 and stranded wires with 7 copper conductors awg 26/7 to btr 8-fold insulation displacement connectors (idc). Optional strain relief with cable tie at uae module. Installation shape: module. Variants: designation of conductor colors marking to t568a, t568b.
