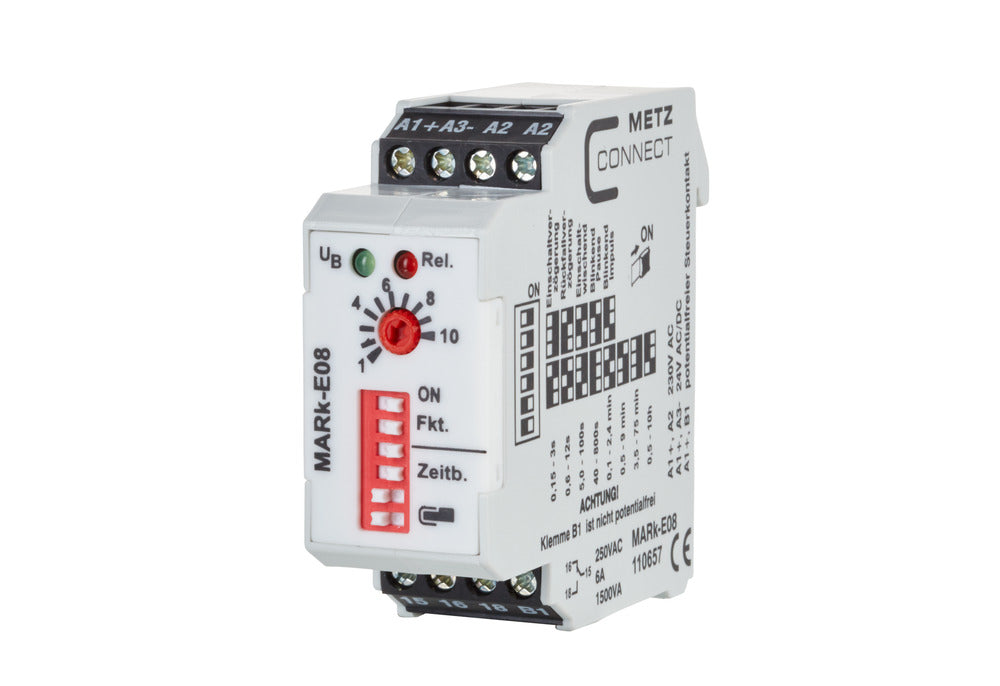

Metz Connect MARk-E08 Multifunction Timer Relay - 110657

Metz Connect MARk-E08 Multifunction Timer Relay - 110657
Metz Connect MARk-E08 Multifunction Timer Relay - 110657
Reference: E3TYM
Brand: Metz Connect
Mfr. Part: 110657

Professional multifunction timer relay featuring integrated coding switches for function selection and linear potentiometer time adjustment. Offers eight adjustable time ranges from 0.15s to 10h with five programmable modes: on-delay, off-delay, making-pulse interval, pause-start flashing, and pulse-start flashing. Connects via screw terminal blocks for reliable installation.

View all
$37.14 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

Professional multifunction timer relay featuring integrated coding switches for function selection and linear potentiometer time adjustment. Offers eight adjustable time ranges from 0.15s to 10h with five programmable modes: on-delay, off-delay, making-pulse interval, pause-start flashing, and pulse-start flashing. Connects via screw terminal blocks for reliable installation.

Pros:

  • Wide time range from 0.15s to 10h
  • Five versatile operating modes
  • Simple linear potentiometer adjustment
  • Secure screw terminal connectivity

Specifications

Electrical connectioni
Screw connection
Function delay-on energization
Yes
Function delay on de-energization
Yes
Function floating contact on energization
Yes
Clock function, starting with pause, variable
Yes
Clock function, starting with pulse, variable
Yes
Remote operation possible
No
Suitable as remote control
No
Rated control supply voltage Us at AC 50HZ (V)
24 V to 230 V
Rated control supply voltage Us at DC (V)
24 V to 24 V
Voltage type for actuating
AC/DC
Nominal current (A)
6
Time range (s)
540 s to 36000 s
Number of outputs, undelayed, change-over contact
1
Outputs, reversible delayed/undelayed
No
With semiconductor output
No
Suitable for DIN rail (top hat rail) mounting
Yes
