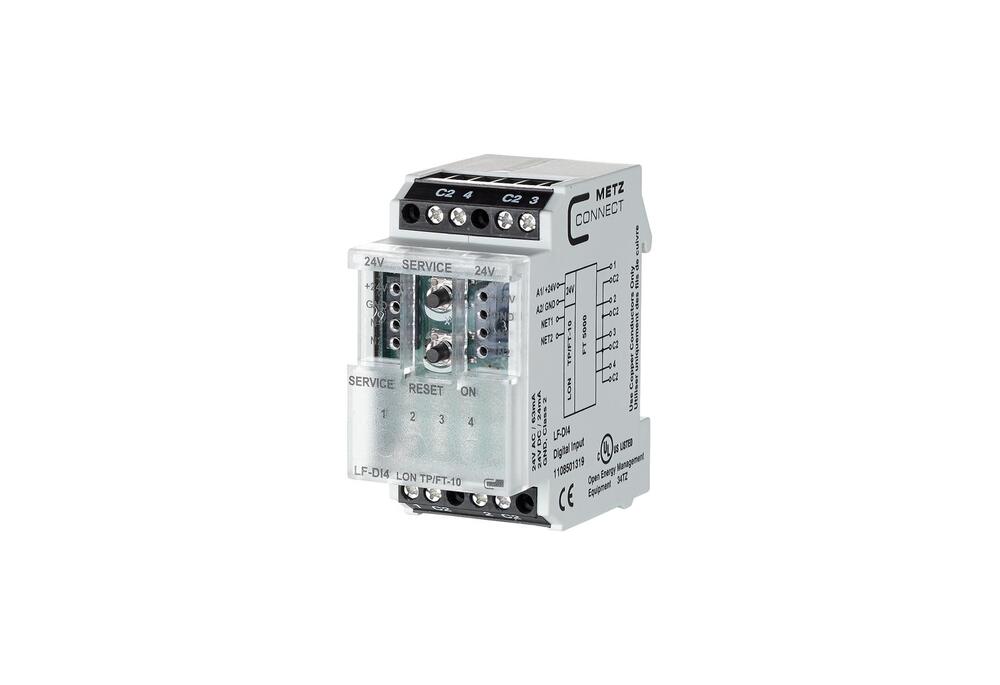

Metz Connect LON I/O Module Bus System - 1108501319
Notice: This product is discontinued
The lon module with 4 digital inputs was developed for decentralized switching tasks. It is suitable for detecting potential-free switch states, for example electrical limit switches on vent valves or auxiliary contacts of power contactors. The input terminals 1 to 4 are wired with the c2 terminals to potential-free switches or contacts. The inputs can be scanned individually or simultaneously by snvt network variables. Suitable for decentralized mounting on din th35 rail according to iec 60715 in electrical distribution cabinets. Connection with screw type terminal blocks.
Notice: This product is discontinued
Description
The lon module with 4 digital inputs was developed for decentralized switching tasks. It is suitable for detecting potential-free switch states, for example electrical limit switches on vent valves or auxiliary contacts of power contactors. The input terminals 1 to 4 are wired with the c2 terminals to potential-free switches or contacts. The inputs can be scanned individually or simultaneously by snvt network variables. Suitable for decentralized mounting on din th35 rail according to iec 60715 in electrical distribution cabinets. Connection with screw type terminal blocks.
