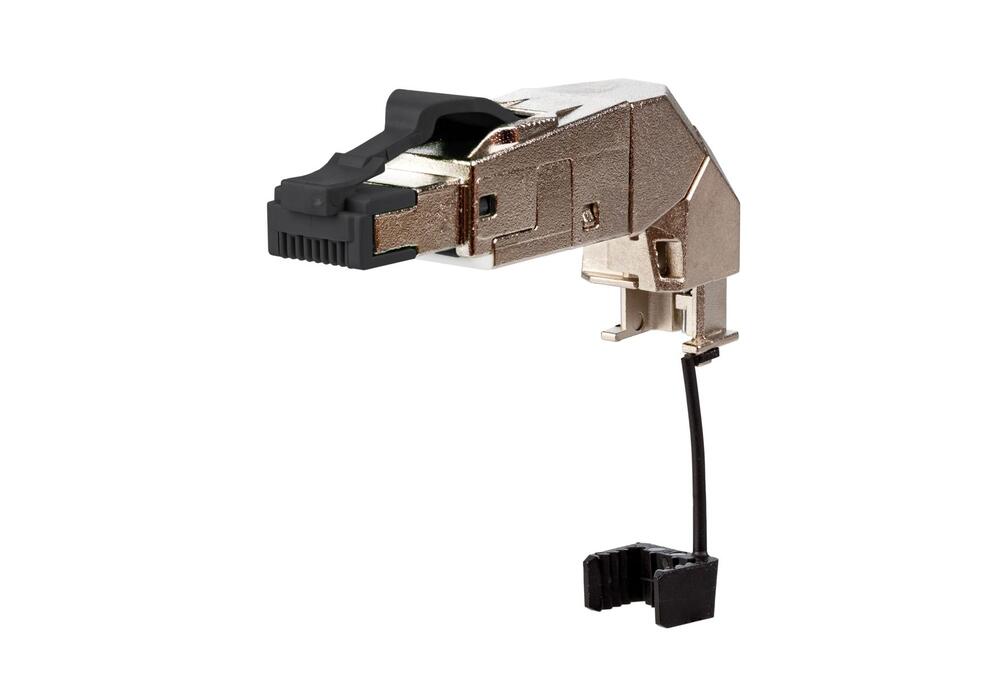

Metz Connect Industry Modular Connector - 130E405042-E
Cat.6a class ea rj45 plug to be assembled in the field. Fully shielded and multi-port capable. Variable (360°) cable feed, freely selectable. Easy assembly - connection without special tools. Wire connection: stranded wire awg 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm. Wire connection: solid wire awg 26/1 to 22/1, wire diameter from 0.4 to 0.64 mm. Transmission characteristics cat.6a per iso/iec 11801 ed.2.2:2011-06. Compliance with class ea to iso/iec 11801. Ed.2.2:2011-06, din en 50173-1:2011-09. Suitable for 10 gbit ethernet (ieee 802.3an), remote powering (poe, poe plus, upoe and 4p.
- Regular price
- $18.23 USD
We sell only to registered businesses
Description
The Cat.6, A class EA RJ45 plug is a highly capable device that can be assembled in the field. It is fully shielded and multi-port capable and comes with a variable (360°) cable feed that can be freely selected. The assembly connection is simple and does not require any special tools. The wire connection can range from stranded wire AWG 27/7 to 22/7, with a wire diameter from 0.46 to 0.76 mm. Additionally, the device can accommodate a solid wire connection of AWG 26/1 to 22/1, with a wire diameter from 0.4 to 0.64 mm.
The plug's transmission characteristics are Cat.6, A per ISO/IEC 11801 Ed.2.2:2011-06. It complies with class E, A to ISO/IEC 11801 Ed.2.2:2011-06, and DIN EN 50173-1:2011-09. The plug is suitable for use with a range of applications and standards, including 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE, and 4PPoE), and HDBaseT. It has an IP20 degree of protection.
The plug can accommodate a cable jacket ranging from 5.5 to 10.5 mm. It is housed in a zinc die-cast shell, making it suitable for industrial use. It provides strain relief with a latching clip directly on the stuffer cap. Furthermore, it features a protected locking hook and can be reconnected as needed.
