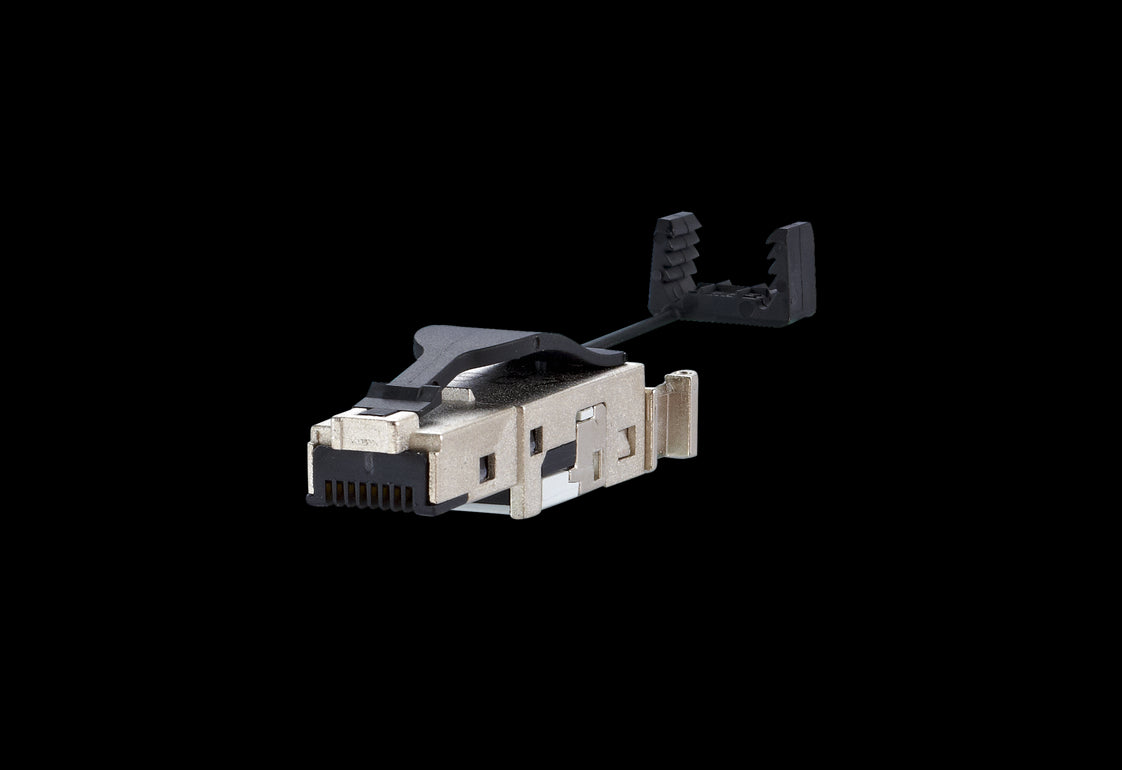

Metz Connect E-DAT Modular Connector - 1401405012-I
Multi-port cat.6 class ea plug to be assembled in the field. Compliance with class ea to iso/iec 11801 ed.2.2:2011-06, din en 50173-1:2011-09. Suitable for 10 gbit ethernet (ieee 802.3an), remote powering (poe, poe plus, upoe and 4ppoe) and hdbaset. 8-wire rj45 plug for awg 22 to be assembled in the field. Connection of awg 26/7 - 22/7, awg 26/1 - 22/1 possible. Solid copper wire diameter from 0.4 to 0.64 mm. Stranded copper wire diameter from 0.48 to 0.76 mm. Conductor diameter up to 1.6 mm. Cable jacket from 5.5 to 8.5 mm. Easy assembly - connection without special tools.
- Regular price
- $15.92 USD
We sell only to registered businesses
Description
Multi-port cat.6 class ea plug to be assembled in the field. Compliance with class ea to iso/iec 11801 ed.2.2:2011-06, din en 50173-1:2011-09. Suitable for 10 gbit ethernet (ieee 802.3an), remote powering (poe, poe plus, upoe and 4ppoe) and hdbaset. 8-wire rj45 plug for awg 22 to be assembled in the field. Connection of awg 26/7 - 22/7, awg 26/1 - 22/1 possible. Solid copper wire diameter from 0.4 to 0.64 mm. Stranded copper wire diameter from 0.48 to 0.76 mm. Conductor diameter up to 1.6 mm. Cable jacket from 5.5 to 8.5 mm. Easy assembly - connection without special tools.
