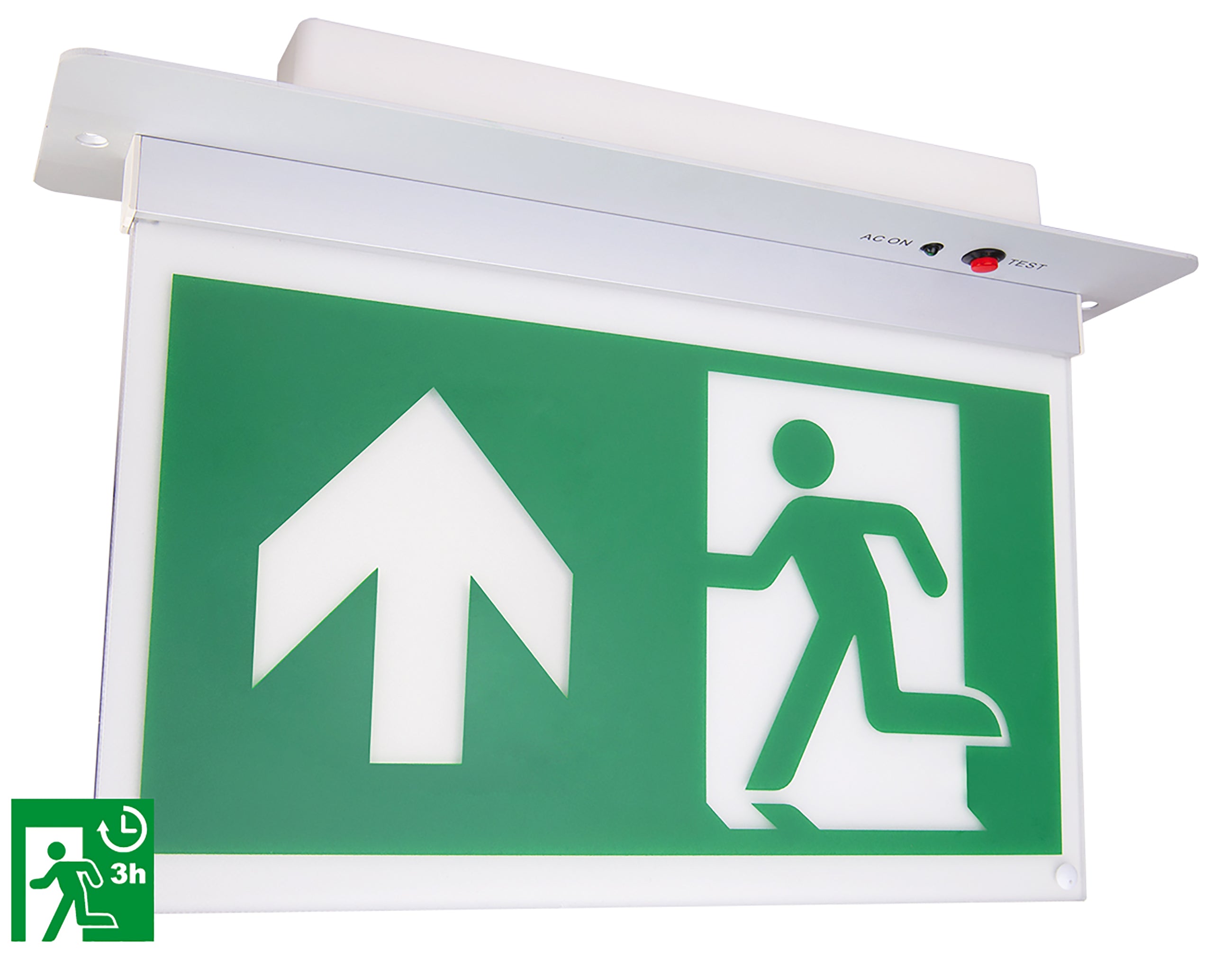

Megaman TEMPUS Emergency Lighting Fixture - MM10978

Megaman TEMPUS Emergency Lighting Fixture - MM10978
Megaman TEMPUS Emergency Lighting Fixture - MM10978
Megaman TEMPUS Emergency Lighting Fixture - MM10978
Megaman TEMPUS Emergency Lighting Fixture - MM10978
Image may vary slightly
See specifications for accurate information.
Reference: E3CR9
Brand: Megaman
Mfr. Part: MM10978

Megaman TEMPUS emergency lighting fixture, (lxw) 316x75mm, temperature 6500K, system power 3.5W, recessed, power system decentralized (individual b, housing white, degree of protection (IP) IP20, rated voltage 220 - 240V, application indicator single side, rated operating time 0 - 3h, voltage type AC.

View all
Note: product cannot be returned
$109.53
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 13 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

Megaman TEMPUS emergency lighting fixture, (lxw) 316x75mm, temperature 6500K, system power 3.5W, recessed, power system decentralized (individual b, housing white, degree of protection (IP) IP20, rated voltage 220 - 240V, application indicator single side, rated operating time 0 - 3h, voltage type AC.

Downloads

Specifications

Mounting method
Built-in
Function
Escape route lighting/signage
Suitable for labelling type
Sticker
Type of indicator
Double-sided
With pictogram
Yes
Monitoring equipment
Test button
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
With remote control
No
Power supply system
Peripheral (individual battery)
Battery quality
NiMH
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of lamps
1
Lamp holder
Other
Number of lighting heads
1
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Colour housing
White
Material cover
Other
Voltage-type
AC
Nominal voltage (V)
220 V to 240 V
LED nominal current at constant current (mA)
25 mA to 25 mA
Type of control gear
Not required
Exchangeable control gear
No
Light distributor
Diffuser lens/optic/panel
Max. number of luminaires per miniature circuit breaker B16
20
Energy efficiency class of the built-in lamp
Other
Max. number of luminaires per miniature circuit breaker C16
40
Rated life time L70/B50 at 25 °C (h)
50000
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
70
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) (%)
50
Constant light output (CLO)
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Impact strength
IK02
Protection class
I
Luminaire with limited surface temperature, sign "D“
No
Rated ambient temperature according to IEC62722-2-1 (°C)
0 °C to 40 °C
Max. system power (W)
2.8
Rated luminous flux according to IEC 62722-2-1 (lm)
35
Luminous flux in standby mode (lm)
35
Colour temperature (K)
6500 K to 6500 K
Power factor
0.4
Recognition distance (m)
0
Nominal operation time (h)
3 h to 3 h
Flickering value Pst LM
1

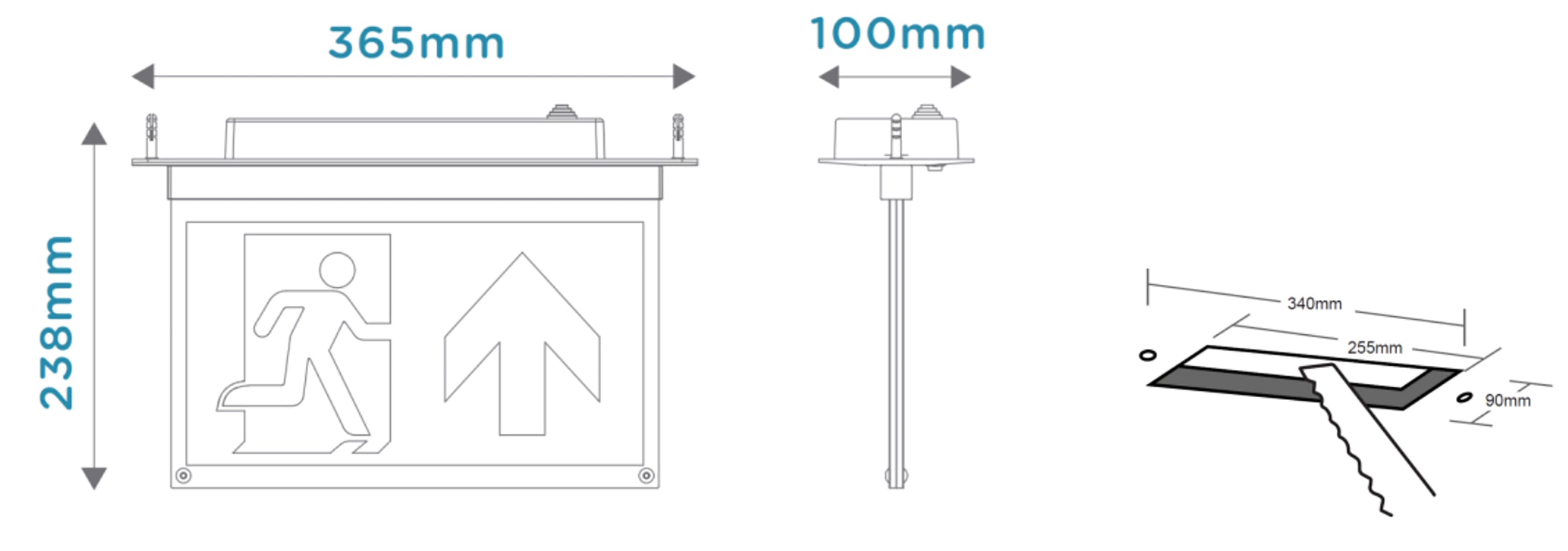

Width (mm)
The product's width without packaging.
365
Height/depth (mm)
196
Length (mm)
100
Built-in width (mm)
255
Built-in height/depth (mm)
50
Built-in length (mm)
90
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
0.75
Connection type
Other
