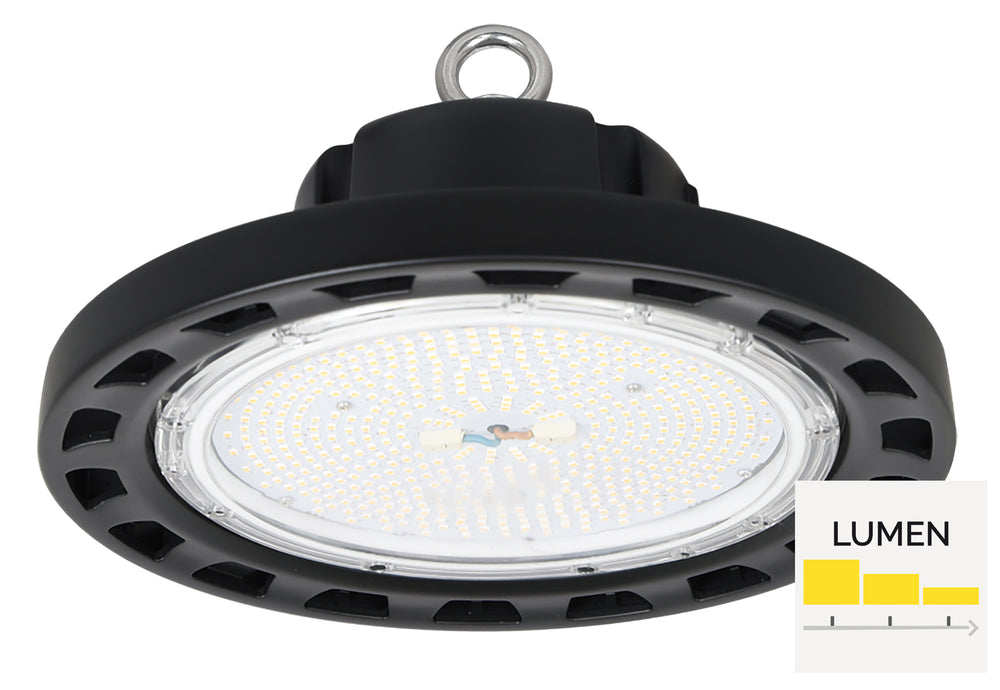

Megaman GEO Hall beam - MM10931

Megaman GEO Hall beam - MM10931
Megaman GEO Hall beam - MM10931
Megaman GEO Hall beam - MM10931
Megaman GEO Hall beam - MM10931
Image may vary slightly
See specifications for accurate information.
Reference: E3C8W
Brand: Megaman
Mfr. Part: MM10931

Megaman GEO hall spotlight, width 136mm, effective luminous flux according to IEC 21000lm, specific luminous flux luminaire 140lm/W, temperature 4000K, light color white, suitable for lamp power 70 - 150W, system power 150W, beam angle extremely wide beam >80, pendant, degree of protection (IP) IP65.

View all
Note: product cannot be returned
$313.22
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Megaman GEO hall spotlight, width 136mm, effective luminous flux according to IEC 21000lm, specific luminous flux luminaire 140lm/W, temperature 4000K, light color white, suitable for lamp power 70 - 150W, system power 150W, beam angle extremely wide beam >80, pendant, degree of protection (IP) IP65.

Downloads

Specifications

Mounting method
Pendant
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of lamps
1
Suitable for auxiliary lamp
No
Lamp holder
Other
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Colour housing
Black
Voltage-type
AC
Nominal voltage (V)
220 V to 240 V
LED nominal current at constant current (mA)
330 mA to 720 mA
Type of control gear
Not required
Exchangeable control gear
No
With control gear
Yes
Dimming 0-10 V
Yes
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Light distributor
None
Light sharing
Symmetric
Reflector
None
Material reflector
Plastic
Beam angle
Extreme wide beam >80°
Colour consistency (McAdam ellipse)
SDCM6
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Rated life time L70/B50 at 25 °C (h)
50000
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP65
Impact strength
IK08
Ball-proof
No
Protection class
I
Luminaire with limited surface temperature, sign "D“
No
Rated ambient temperature according to IEC62722-2-1 (°C)
-30 °C to 50 °C
Emergency power supply integrated
No
Suitable for emergency lighting
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power (W)
70 W to 150 W
Max. system power (W)
150
Rated luminous flux according to IEC 62722-2-1 (lm)
21000
Luminaire efficacy (lm/W)
140
Colour of light
White
Colour temperature (K)
4000 K to 4000 K
Colour rendering index CRI
80-89
Total harmonic distortion
20
Power factor
0.9
Constant light output (CLO)
No
Colour temperature adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
Positions

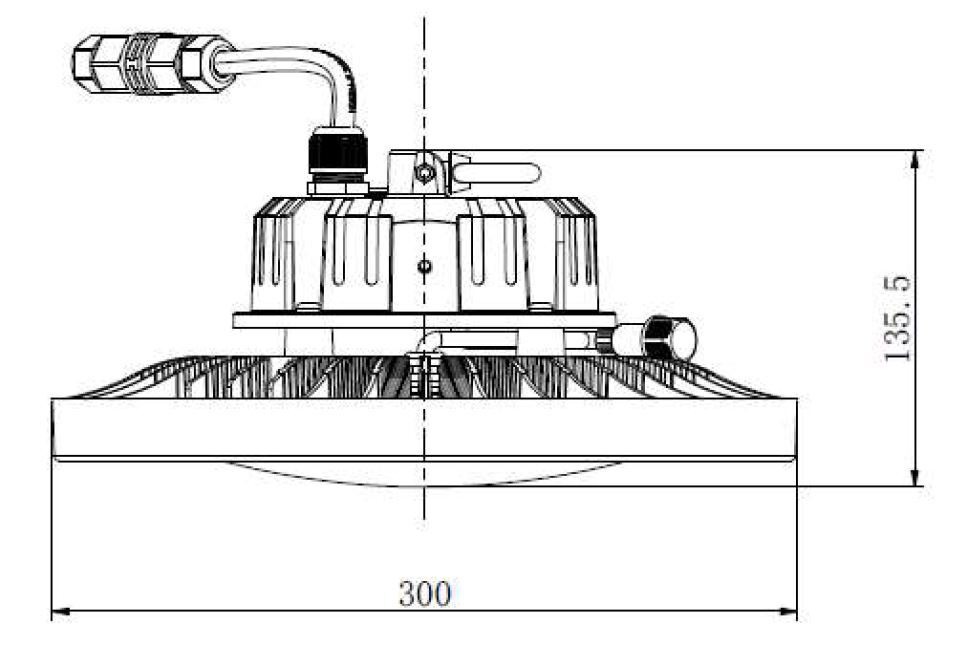

Height/depth (mm)
136
Length (mm)
136
Outer-diameter (mm)
Outer diameter of the component.
300
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
0.75
Connection type
Push-in clamp
With protective cover
No
Max. number of luminaires per miniature circuit breaker B16
5
Max. number of luminaires per miniature circuit breaker C16
9
