Martin Kaiser 12-Pole Terminal Junction Box Flexible 10mm2 Blue - 610/bl [60 Pieces]

Martin Kaiser 12-Pole Terminal Junction Box Flexible 10mm2 Blue - 610/bl [60 Pieces]
Martin Kaiser 12-Pole Terminal Junction Box Flexible 10mm2 Blue - 610/bl [60 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3RMN-X60
Brand: Martin Kaiser
Mfr. Part: 610/bl

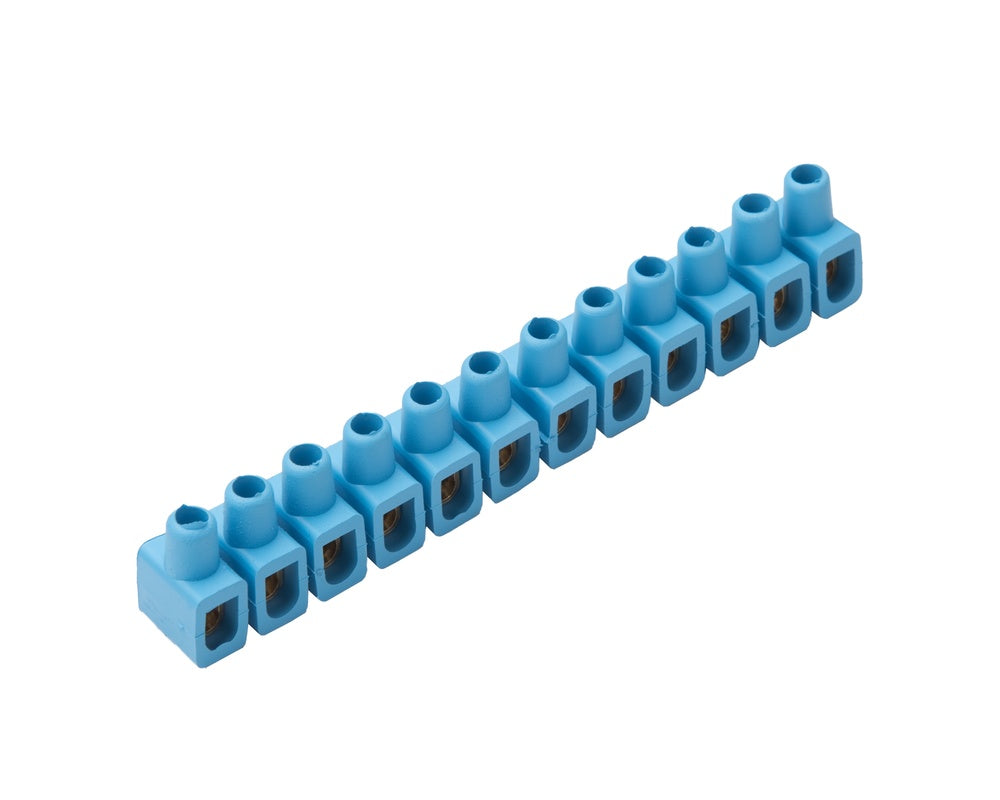

The Martin Kaiser terminal block is a 12-pole terminal with a 10mm2 cross-section, featuring a screw connection. The maximum voltage and current it can handle are 400V and 16A respectively. Made out of thermoplastic material (PVC), this terminal block comes in a blue color. Its degree of protection conforms to IP20 standards, making it safe for general usage.

Contains 60 pieces

View all
Note: product cannot be returned
$154.98
excl VAT
In stock +16 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 18 - 19 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Martin Kaiser terminal block is a 12-pole terminal with a 10mm2 cross-section, featuring a screw connection. The maximum voltage and current it can handle are 400V and 16A respectively. Made out of thermoplastic material (PVC), this terminal block comes in a blue color. Its degree of protection conforms to IP20 standards, making it safe for general usage.

Contains 60 pieces

Downloads

Specifications

Drill hole distance centrically (mm)
12
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
6 mm² to 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
6 mm² to 10 mm²
Connectable conductor cross section solid-core (mm²)
6 mm² to 10 mm²
Connectable conductor cross section multi-wired (mm²)
6 mm² to 10 mm²
Rated current In (A)
16
Rated voltage (V)
400
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of poles
12
Number of clamp positions per pole
1
Mounting method
Direct mounting
Material insulation body
Thermoplastic
Operating temperature (°C)
-5 °C to 40 °C
Halogen free
Yes
Width (mm)
The product's width without packaging.
136
Height (mm)
The product's height without packaging.
26
Depth (mm)
The product's depth without packaging.
17
Closing plate required
No
Color
Blue
