Martin Kaiser 12-Pole Terminal Block 4-6mm2 Pack Of 10 - 723/SW [500 Pieces]

Martin Kaiser 12-Pole Terminal Block 4-6mm2 Pack Of 10 - 723/SW [500 Pieces]
Martin Kaiser 12-Pole Terminal Block 4-6mm2 Pack Of 10 - 723/SW [500 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3JWK-X500
Brand: Martin Kaiser
Mfr. Part: 723/SW

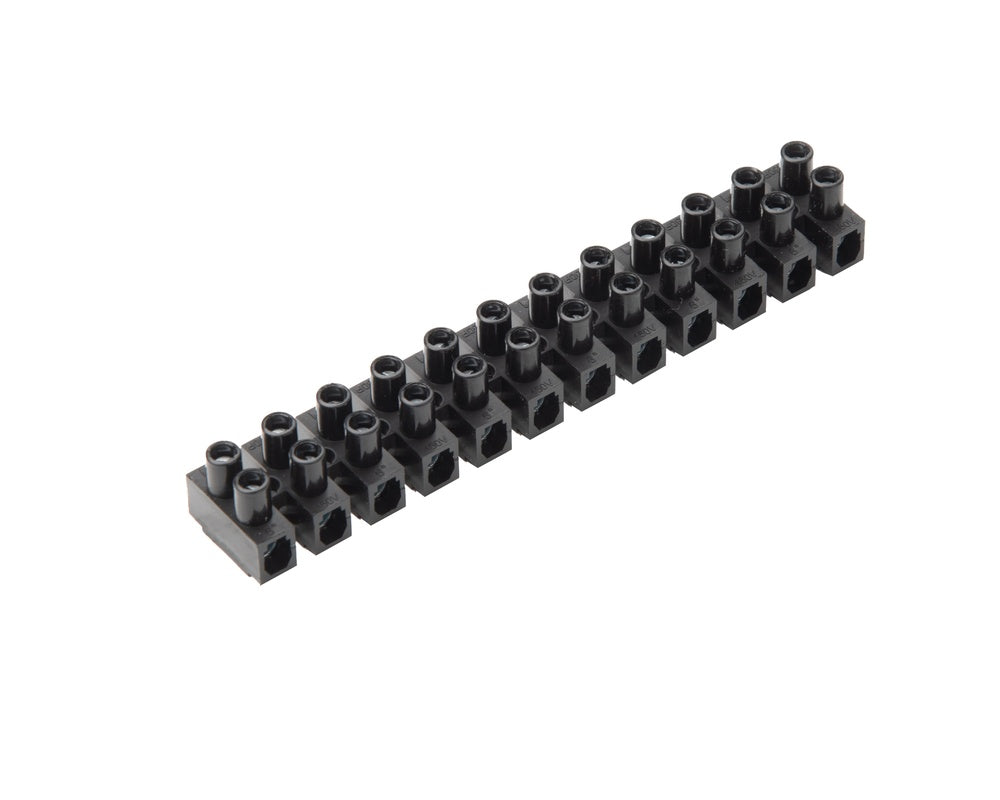

The Martin Kaiser terminal strip is a 12-pole, 4mm2 device, IP20 rated, and divisible type. Fastened by screw connections, it can handle up to 450V/32A. Designed with durability in mind, it is made of thermoplastic polypropylene. To maintain a standard, professional appearance in any setup, it is available in black.

View all
Note: product cannot be returned
$477.00
excl VAT
In stock +24 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 24 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 26 - 27 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Martin Kaiser terminal strip is a 12-pole, 4mm2 device, IP20 rated, and divisible type. Fastened by screw connections, it can handle up to 450V/32A. Designed with durability in mind, it is made of thermoplastic polypropylene. To maintain a standard, professional appearance in any setup, it is available in black.

Downloads

Specifications

Drill hole distance centrically (mm)
10
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
4 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
4 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²)
4 mm² to 4 mm²
Connectable conductor cross section multi-wired (mm²)
4 mm² to 4 mm²
Rated current In (A)
32
Rated voltage (V)
450
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of poles
12
Number of clamp positions per pole
2
Mounting method
Direct mounting
Material insulation body
Thermoplastic
Operating temperature (°C)
-5 °C to 85 °C
Halogen free
Yes
Width (mm)
The product's width without packaging.
117
Height (mm)
The product's height without packaging.
20
Depth (mm)
The product's depth without packaging.
17
Closing plate required
No
Color
Black
