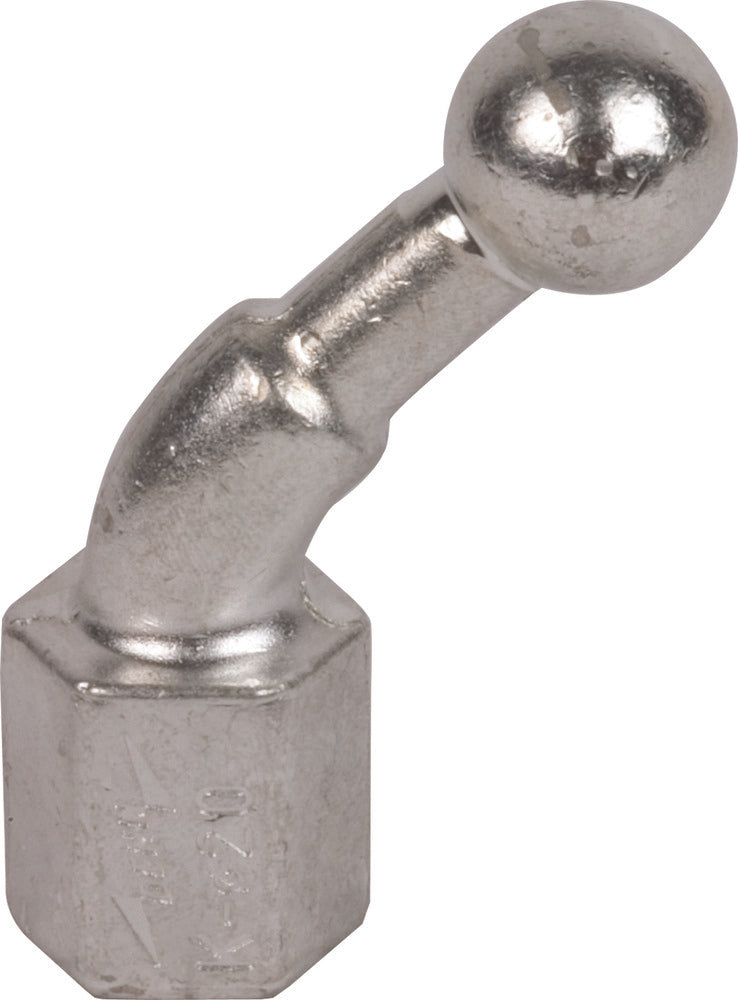

M12 Threaded Fixed Ball Point D 20mm Angled 45 Degrees - 706200

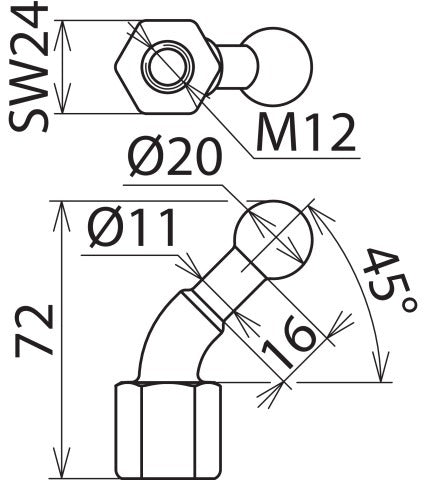

This is a 45° angled fixed ball point with an internal thread, used as a line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system. It boasts high mechanical strength due to the female thread and is suitable for fixing cable lugs or connecting busbars per DIN 43673-1. The maximum short-circuit current it can handle is 19.5kA and the ball point is 20mm in diameter. It can accommodate a maximum copper wire cross-section of 70mm².
- Regular price
- $37.07 USD
We sell only to registered businesses
Description
This is a 45° angled fixed ball point with an internal thread, used as a line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system. It boasts high mechanical strength due to the female thread and is suitable for fixing cable lugs or connecting busbars per DIN 43673-1. The maximum short-circuit current it can handle is 19.5kA and the ball point is 20mm in diameter. It can accommodate a maximum copper wire cross-section of 70mm².
