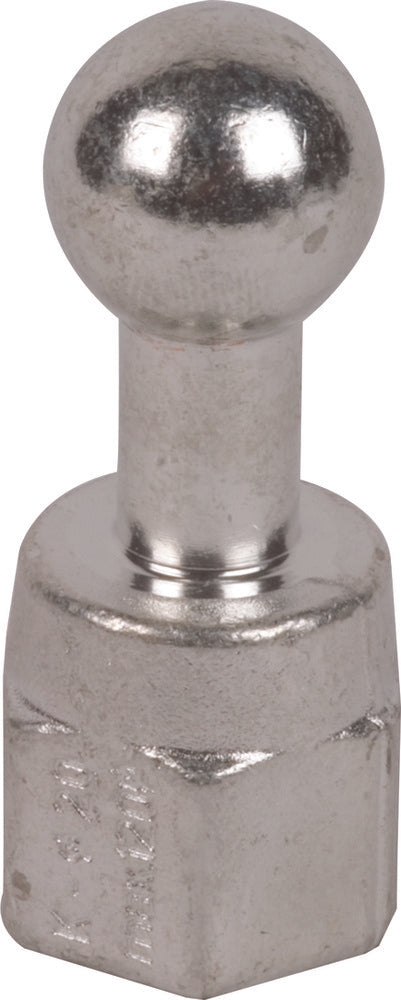

M12 Fixed Ball Point D 20mm Straight Female Thread - 754200

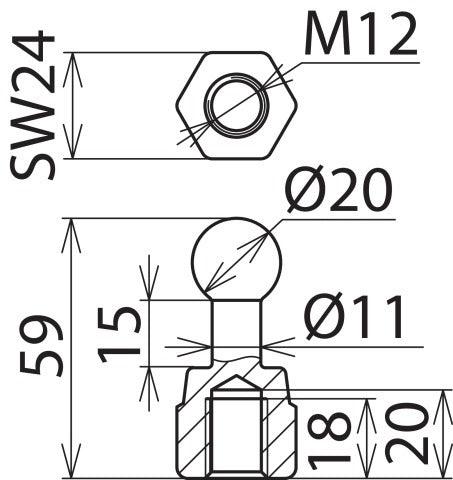

This item is a straight fixed ball point equipped with a female thread, designed for use as both a phase-side and earth-side point of connection. It adheres to the standards outlined in EN/IEC 61230 (DIN VDE 0683-100) and can be utilized on both the conductor and the earthing system. Its high mechanical strength is due to the thread not being cut, which makes it suitable to fix cable lugs or connect busbars according to DIN 43673-1. The item can handle a maximum short circuit current of 33.5kA, includes a right angle design and a thread size of 20mm. It also supports a maximum wire cross section of 120mm² for copper, with a point diameter of 20mm.
- Regular price
- $26.23 USD
We sell only to registered businesses
Description
This item is a straight fixed ball point equipped with a female thread, designed for use as both a phase-side and earth-side point of connection. It adheres to the standards outlined in EN/IEC 61230 (DIN VDE 0683-100) and can be utilized on both the conductor and the earthing system. Its high mechanical strength is due to the thread not being cut, which makes it suitable to fix cable lugs or connect busbars according to DIN 43673-1. The item can handle a maximum short circuit current of 33.5kA, includes a right angle design and a thread size of 20mm. It also supports a maximum wire cross section of 120mm² for copper, with a point diameter of 20mm.
