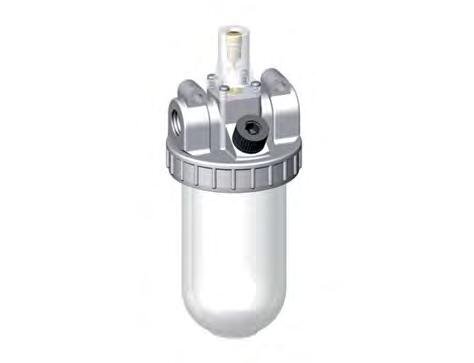

Lubricator G3/8'' Metal Standard 2
This G 3/8 inch pneumatic lubricator introduces a fine mist of oil into the air to reduce internal friction in components. Suitable for a 25.0 bar (363 psi) max input and temperatures between -10 and 60 °C (14 and 140 °F). The min flow for oil drip is 50 l/min. The oil capacity is 110 cm3.
- Regular price
- $86.51
Description
The lubricator introduces a fine mist of oil into the pneumatic air to reduce internal friction of pneumatic parts. Most modern pneumatic equipment doesn't need lubrication, only use a lubricator if downstream equipment requires it. The recommended lubricating oil type is ISO-VG32 turbine oil. This model has G 3/8 inch ports.

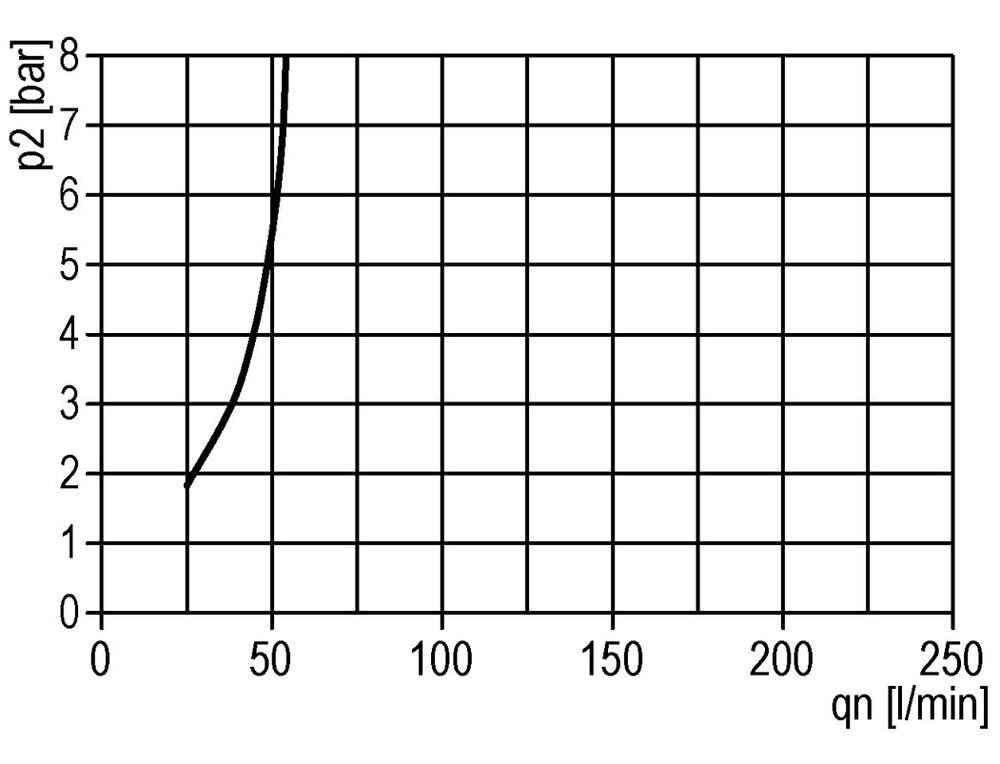

The maximum input pressure is 25.0 bar (363 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). The lubricator requires a minimal flow rate of 50 l/min and can hold 110 cm3 of oil. The housing material is made out of zinc die-cast and the lubricator has a bowl made of metal.
Mounting brackets need to be ordered separately.
