Image may vary slightly
See specifications for accurate information.
Reference: P262R
Brand: Knocks
Mfr. Part: L.12

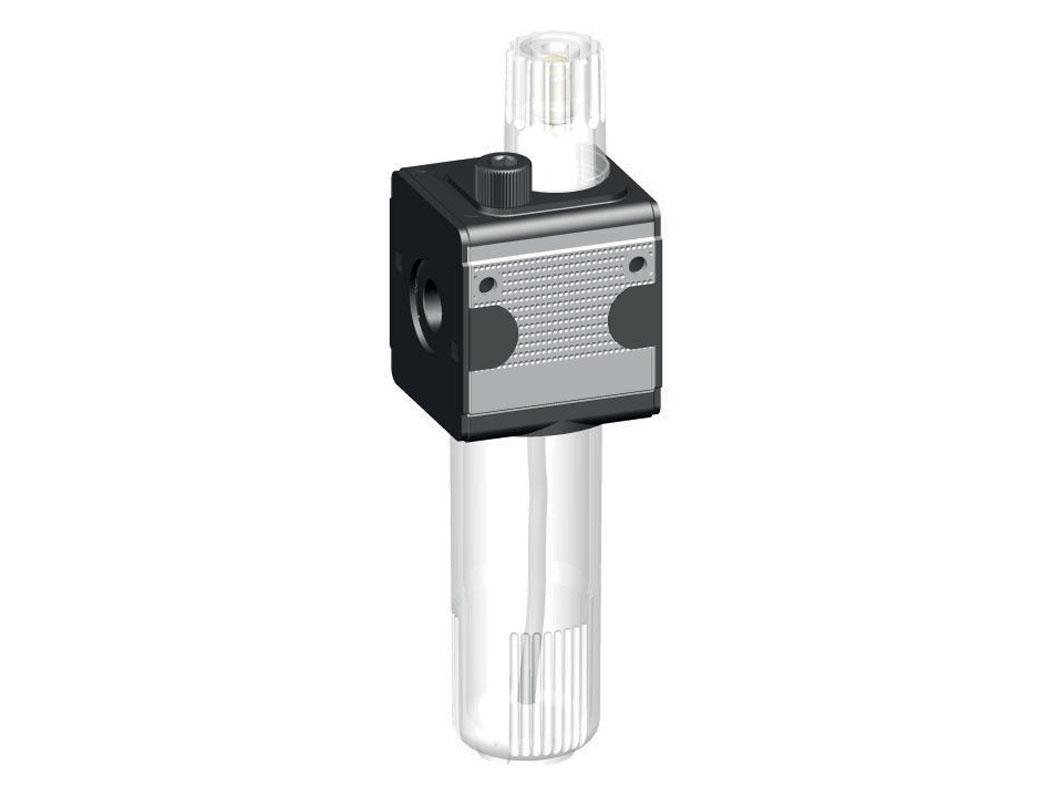

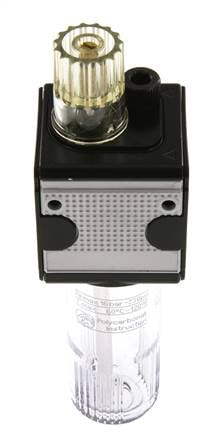

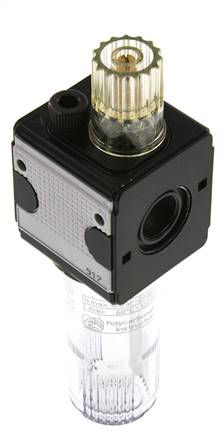

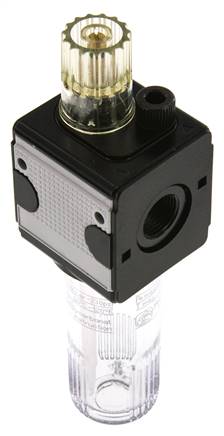

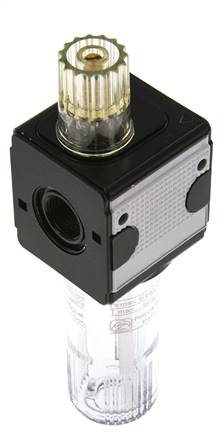

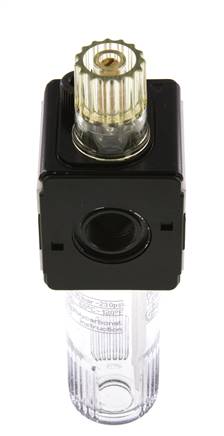

This G 3/8 inch pneumatic lubricator introduces a fine mist of oil into the air to reduce internal friction in components. Suitable for a 16.0 bar (232 psi) max input and temperatures between -10 and 60 °C (14 and 140 °F). The min flow for oil drip is 60 l/min. The oil capacity is 50 cm3.

View all
Regular price
$35.41 USD
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 14 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

Description
Specifications
Downloads
Related products

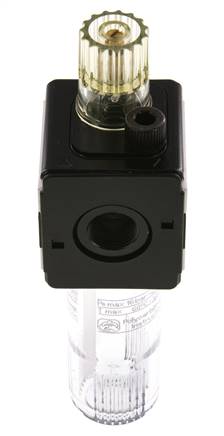

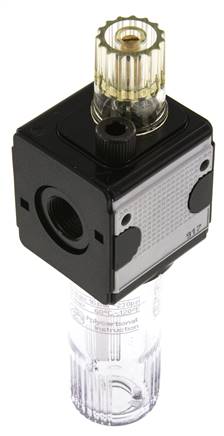

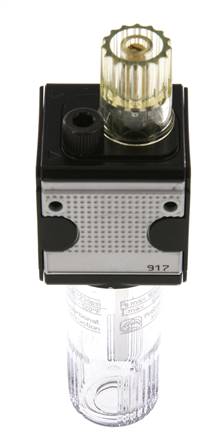

The lubricator introduces a fine mist of oil into the pneumatic air to reduce internal friction of pneumatic parts. Most modern pneumatic equipment doesn't need lubrication, only use a lubricator if downstream equipment requires it. The recommended lubricating oil type is ISO-VG32 turbine oil. This model has G 3/8 inch ports.

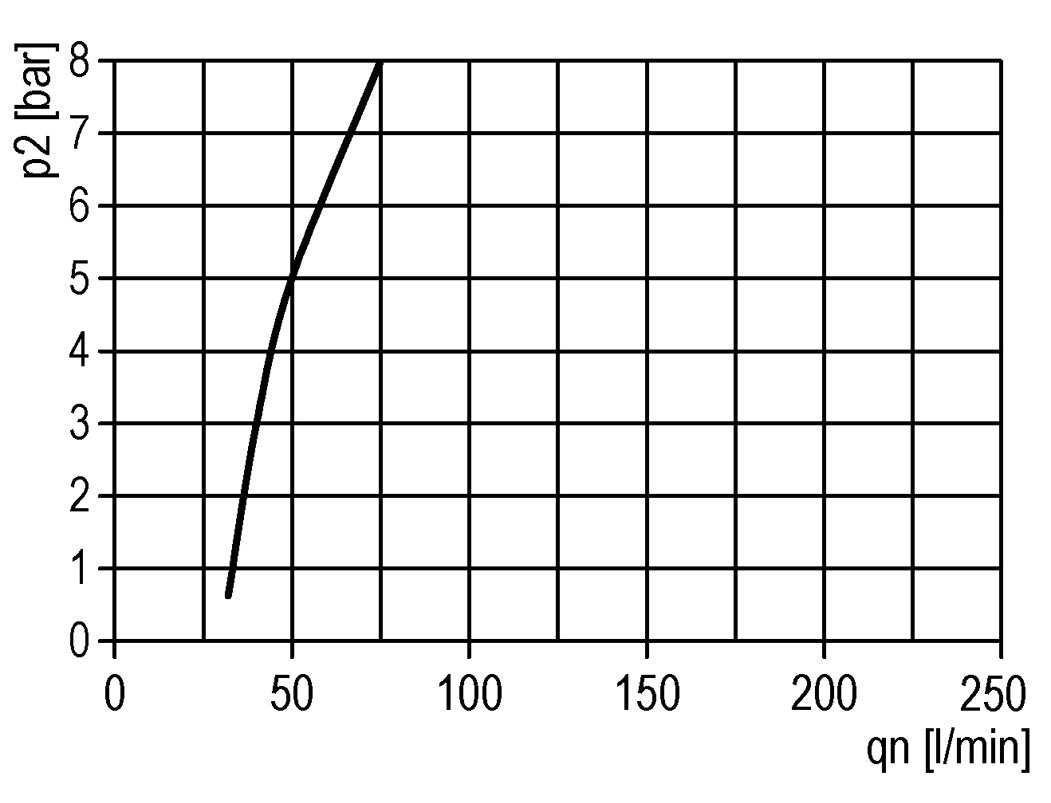

The maximum input pressure is 16.0 bar (232 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). The lubricator requires a minimal flow rate of 60 l/min and can hold 50 cm3 of oil. The housing material is made out of zinc die-cast and the lubricator has a bowl made of polycarbonate (PC).

Mounting brackets need to be ordered separately.
