Reference: P263P
Brand: Knocks
Mfr. Part: DO.35 M

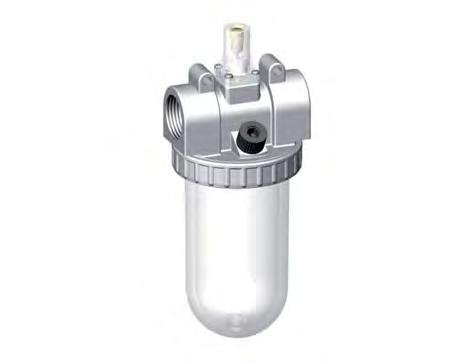

This G 1 inch pneumatic lubricator introduces a fine mist of oil into the air to reduce internal friction in components. Suitable for a 25.0 bar (363 psi) max input and temperatures between -10 and 60 °C (14 and 140 °F). The min flow for oil drip is 50 l/min. The oil capacity is 135 cm3.

View all
Regular price
$127.07 USD
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

Description
Specifications
Downloads
Related products

The lubricator introduces a fine mist of oil into the pneumatic air to reduce internal friction of pneumatic parts. Most modern pneumatic equipment doesn't need lubrication, only use a lubricator if downstream equipment requires it. The recommended lubricating oil type is ISO-VG32 turbine oil. This model has G 1 inch ports.

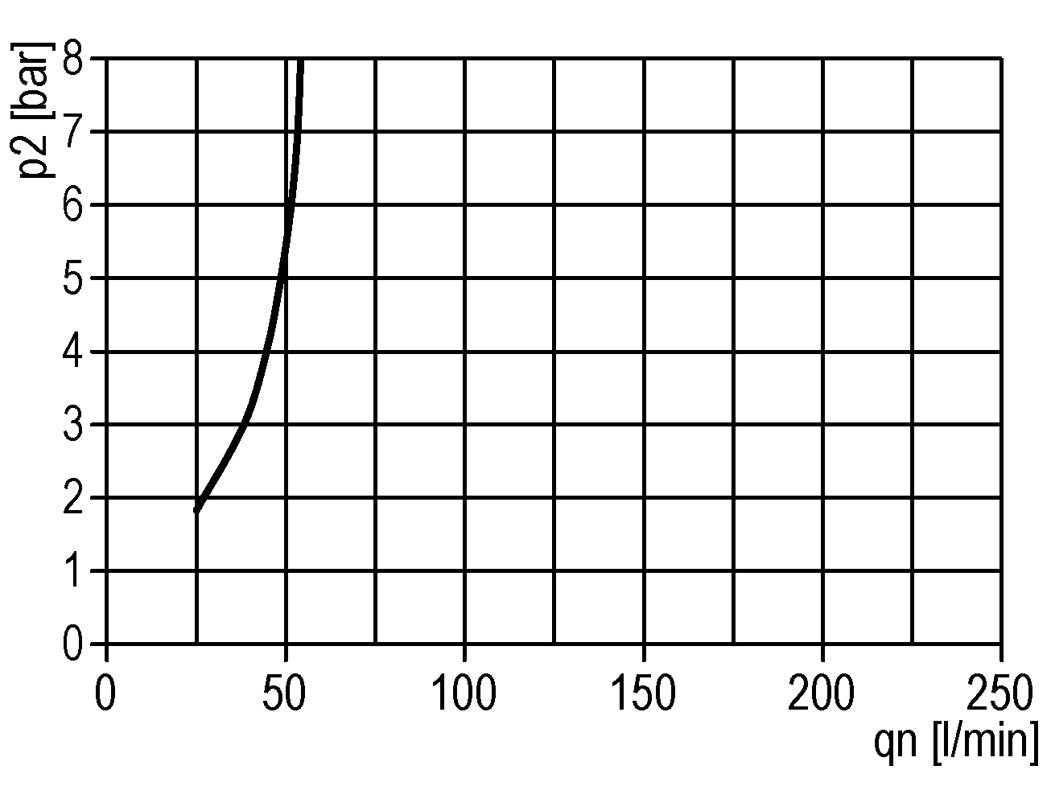

The maximum input pressure is 25.0 bar (363 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). The lubricator requires a minimal flow rate of 50 l/min and can hold 135 cm3 of oil. The housing material is made out of zinc die-cast and the lubricator has a bowl made of metal.

Mounting brackets need to be ordered separately.
