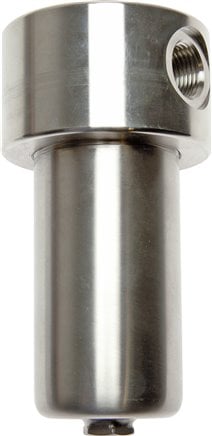

Lubricator Stainless Steel G1/2''
This G 1/2 inch pneumatic lubricator introduces a fine mist of oil into the air to reduce internal friction in components. Suitable for a 50.0 bar (725 psi) max input and temperatures between -20 and 80 °C (-4 and 176 °F).
- Regular price
- $530.19 USD
Description
The lubricator introduces a fine mist of oil into the pneumatic air to reduce internal friction of pneumatic parts. Most modern pneumatic equipment doesn't need lubrication, only use a lubricator if downstream equipment requires it. The recommended lubricating oil type is ISO-VG32 turbine oil. This model has G 1/2 inch ports.
The maximum input pressure is 50.0 bar (725 psi) and the temperature range is between -20 and 80 °C (-4 and 176 °F). The lubricator requires a minimal flow rate of 2400 l/min and can hold cm3 of oil. The housing material is made out of stainless steel and the lubricator has a bowl made of stainless steel.
Mounting brackets need to be ordered separately.
