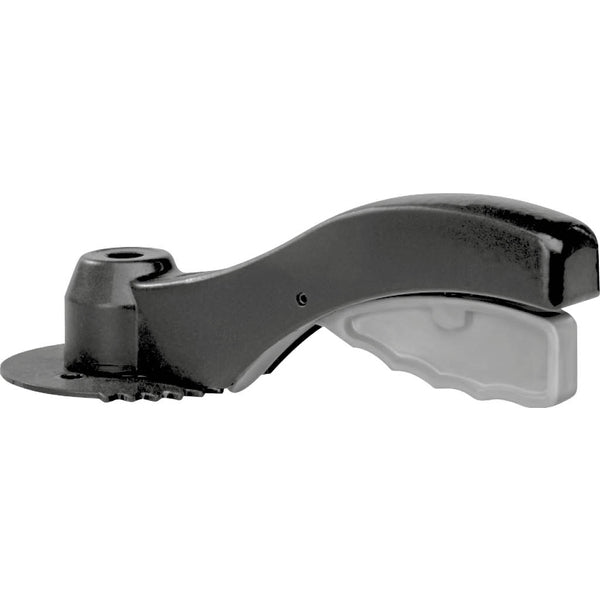

Belimo Lever for Butterfly Valves DN 25-100 ZD6N-H100

Belimo Lever for Butterfly Valves DN 25-100 ZD6N-H100
Belimo Lever for Butterfly Valves DN 25-100 ZD6N-H100
Image may vary slightly
See specifications for accurate information.
Reference: V2VYM
Brand: Belimo
Mfr. Part: ZD6N-H100

Belimo lever for butterfly valves DN 25-100.

View all
Note: product cannot be returned
$42.17
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

Belimo lever for butterfly valves DN 25-100.

Downloads

Technical data sheet \u2013 ZD6N-..
pdf
Download
Installation instructions - ZD6N-H..
pdf
Download
Flyer \u2013 Efficient planning with BIM
pdf
Download
CAD 3d-cad-step-zd6n-h100.zip
zip
Download

Specifications

Type of accessory/spare part
The type of accessory or spare part for a buttefly valve.
Handle
Nominal butterfly valve bore (mm)
The standardized size of the valve's internal passage, often measured in millimeters or inches.
25 mm to 100 mm
ISO 5211 Flange type
Standard flange design to mount an actuator, the size is expressed in F-xx. Note that not every valve is suitable to directly mount an actuator, sometimes an adapter is required.
Flange F05
ISO 5211 Square head size (mm)
Size of the valve's square head according to ISO 5211.
14
