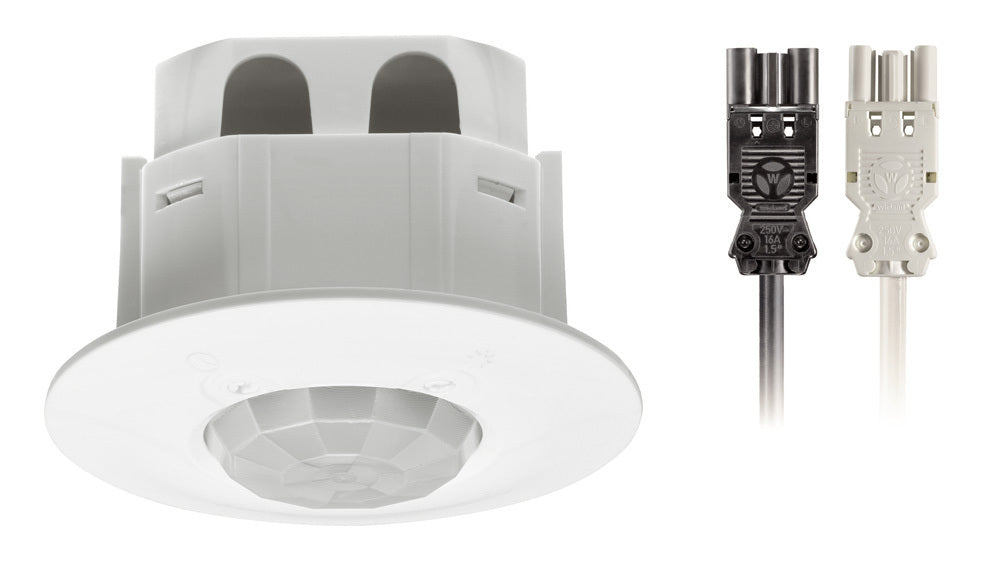

Legrand Motion Switch (Complete) - 8496101

Legrand Motion Switch (Complete) - 8496101
Legrand Motion Switch (Complete) - 8496101
Image may vary slightly
See specifications for accurate information.
Reference: E32ZF
Brand: Legrand
Mfr. Part: 8496101

Legrand motion switch (complete), white, diameter 78mm, recessed, motion detector version, protection rating (IP) IP41, optimal mounting height 2.5m, suitable for ceiling mounting, transducer type passive infrared, max. Range frontal 8m, remote control, max. Range sideways 8m.

View all
$103.79
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 27 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 42 - 43 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Legrand motion switch (complete), white, diameter 78mm, recessed, motion detector version, protection rating (IP) IP41, optimal mounting height 2.5m, suitable for ceiling mounting, transducer type passive infrared, max. Range frontal 8m, remote control, max. Range sideways 8m.

Downloads

Specifications

Model
Movement sensor
Sensor type
Passive infrared
With DALI interface
No
Constant light control
Yes
Forced switch on
No
Forced switch off
Yes
Animal zone
No
Creep-under protection
Yes
Networkable
No
Scan angle (°)
48
Optimum mounting height (m)
2.5
Staircase monitoring
No
Max. transmission range sideways (m)
8
Max. presence range (m²)
50
Max. transmission range frontally (m)
8
Diameter detection range on floor (m)
8
Suitable for wireless transmission
Yes
Remote operation
Yes
With remote control
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
Yes
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Dim function with dimmer basic element
No
Mounting method
Flush mounted (plaster)
Connection type
Other
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Halogen free
Yes
Surface protection
The type of surface protection of the component.
Other
Surface finishing
Glossy
Anti-bacterial treatment
No
Color
White
RAL-number (similar)
9006
Transparent
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP41
Voltage-type
AC
Frequency (Hz)
50 Hz to 60 Hz
Nominal voltage (V)
230
Min. switch-on time (s)
10
Max. duty cycle (min)
10
Switch-off delay (s)
0
Switching-on delay (s)
0
Detection angle horizontal (°)
360 ° to 360 °
Response value luminosity (lx)
10 lx to 1275 lx
Suitable for C-load
Yes
Temperature (°C)
-5 °C to 45 °C
Number of switching zones
1
Min. starting current (A)
0
Substation input
No
With alarm function
No
Depth (mm)
The product's depth without packaging.
50.5
Diameter size (mm)
78
Built-in depth (mm)
49
Built-in diameter (mm)
65
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
