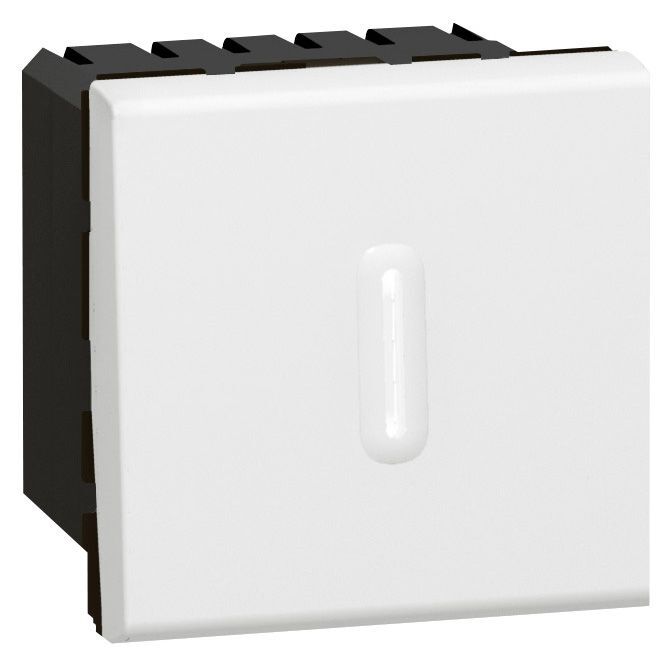

Legrand Mosaic Staircase Switch - 078420

Legrand Mosaic Staircase Switch - 078420
Legrand Mosaic Staircase Switch - 078420
Image may vary slightly
See specifications for accurate information.
Reference: E2AN6
Brand: Legrand
Mfr. Part: 078420

This Mosaic timer from Legrand is made for automating stairwell lighting using a timer. Therefore, the switch is electrically adjustable with a time between 1 and 20 minutes to flip again. This Mosaic timer is the size of 2 modules and can be built in. Furthermore, Legrand's white-colored changeover switch has a supply voltage of 210-250 volts and a rated switching current of 8 amps. However, the LED lighting for the switch is not included with this product.

View all
$87.21
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 11 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

This Mosaic timer from Legrand is made for automating stairwell lighting using a timer. Therefore, the switch is electrically adjustable with a time between 1 and 20 minutes to flip again. This Mosaic timer is the size of 2 modules and can be built in. Furthermore, Legrand's white-colored changeover switch has a supply voltage of 210-250 volts and a rated switching current of 8 amps. However, the LED lighting for the switch is not included with this product.

Downloads

Specifications

Function
Electronic
Width in number of modular spacings
2
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1 (V)
210 V to 250 V
Type of control voltage 1
AC
Control voltage 2 (V)
210 V to 250 V
Type of control voltage 2
AC
Frequency control voltage 2 (Hz)
50 Hz to 60 Hz
Rated switch current (A)
8
Max. switching current (cos phi = 0.6) (A)
1
Wiring system
3 wire configuration
Pre-warning of switching-off
None
Repetitive
Repetitive
Voltage type of supply voltage
AC
Max. incandescent lamp load (W)
1200
Max. load fluorescent lamp (VA)
1000
Max. load fluorescent lamp (Duo circuit) (VA)
1000
Max. load fluorescent lamp (parallel compensated) (VA)
1000
