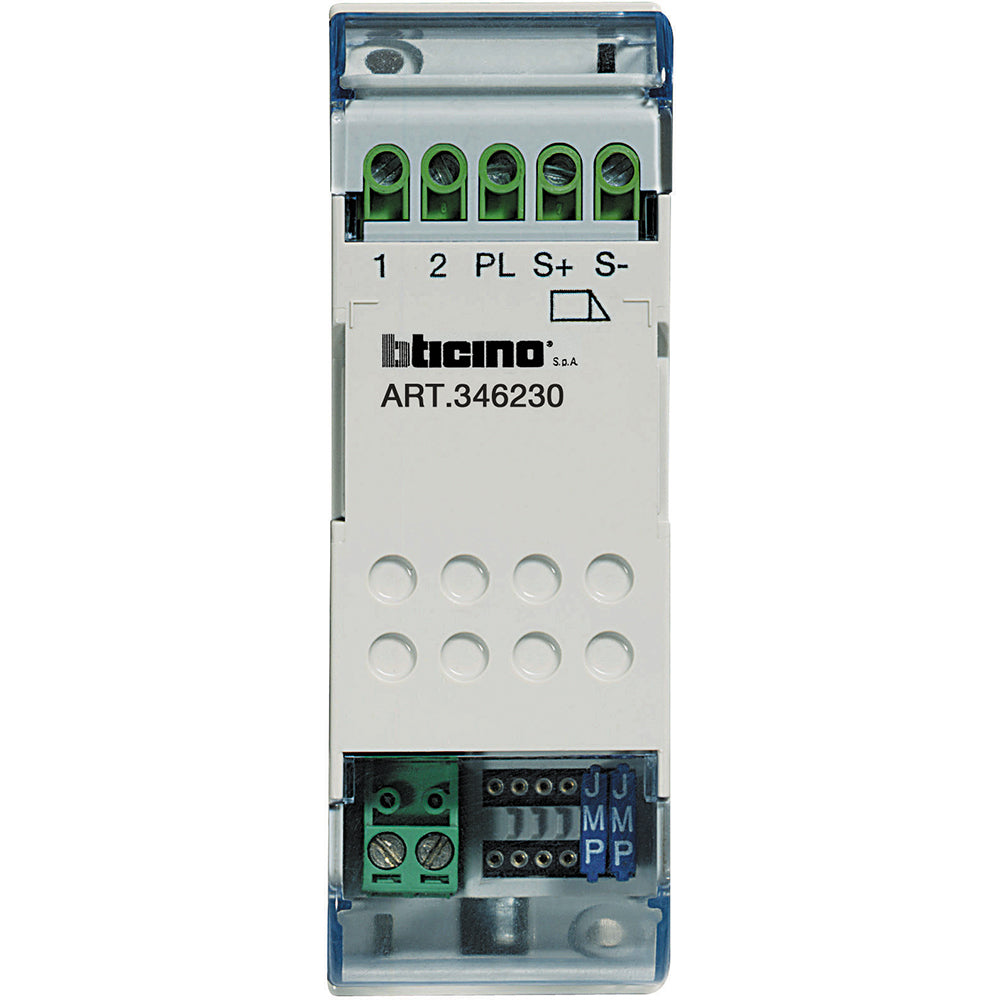

Legrand Bticino Switch Actuator Bus System - BT346230

Legrand Bticino Switch Actuator Bus System - BT346230
Legrand Bticino Switch Actuator Bus System - BT346230
Image may vary slightly
See specifications for accurate information.
Reference: E2CM4
Brand: Legrand
Mfr. Part: BT346230

Legrand Bticino Sfera switching actuator bus system, DRA (DIN-rail adapter), C-load, max. Number of switching outputs 1, other bus systems other, 1 digital inputs, operating voltage (measurement voltage) 18 - 27V, degree of protection (IP) IP20, width in module units 2, bus connection incl.

View all
$173.93
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 16 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Legrand Bticino Sfera switching actuator bus system, DRA (DIN-rail adapter), C-load, max. Number of switching outputs 1, other bus systems other, 1 digital inputs, operating voltage (measurement voltage) 18 - 27V, degree of protection (IP) IP20, width in module units 2, bus connection incl.

Downloads

Specifications

Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
2
Local operation/hand operation
No
With LED indication
No
Number of digital inputs
1
Max. switching power (W)
144
Suitable for C-load
Yes
Max. number of switching contacts
1
Rated current (A)
6
Rated operating voltage (V)
18 V to 27 V
Different phases connectable
No
With bus connection
Yes
Modular expandability
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
