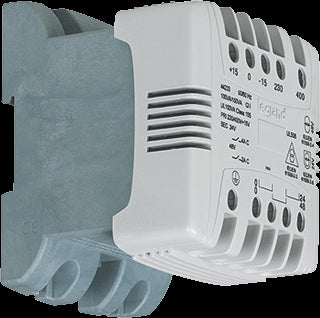

Image may vary slightly
See specifications for accurate information.
Reference: E23VC
Brand: Legrand
Mfr. Part: 44222

This safety transformer by Legrand is intended to be used as a safety transformer. The primary voltage is between 230 and 400V, the secondary voltage between 12-24V, and the apparent power (measuring) of 63VA. The safety transformer comes with an electrostatic screen. It can be mounted on DIN rails measuring 7.5mm without mounting plates or 15mm with mounting plates. The transformer comes with two connection terminals. Conform to EC EN 61558-2-6.

View all
$102.25
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 31 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 42 - 43 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This safety transformer by Legrand is intended to be used as a safety transformer. The primary voltage is between 230 and 400V, the secondary voltage between 12-24V, and the apparent power (measuring) of 63VA. The safety transformer comes with an electrostatic screen. It can be mounted on DIN rails measuring 7.5mm without mounting plates or 15mm with mounting plates. The transformer comes with two connection terminals. Conform to EC EN 61558-2-6.

Downloads

Specifications

Primary voltage 1 (V)
215 V to 215 V
Primary voltage 2 (V)
230 V to 230 V
Primary voltage 3 (V)
245 V to 245 V
Primary voltage 4 (V)
385 V to 385 V
Primary voltage 5 (V)
400 mm to 400 mm
Primary voltage 6 (V)
415 V to 415 V
Secondary voltage 1 (V)
12 V to 12 V
Secondary voltage 2 (V)
24 V to 24 V
Rated apparent power (VA)
63
Short-circuit-proof
No
Type of insulation material according to IEC 85
B
Relative short circuit voltage (%)
9.09
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP2X
Built as energy saving transformer
No
Built as isolating transformer
No
Built as safety transformer
Yes
Ring core
No
Modular version
Yes
Suitable for mounting on PCB
No
