Ledvance LED driver - 4058075239852

Ledvance LED driver - 4058075239852
Ledvance LED driver - 4058075239852
Ledvance LED driver - 4058075239852
Image may vary slightly
See specifications for accurate information.
Reference: E3AJJ
Brand: Ledvance
Mfr. Part: 4058075239852

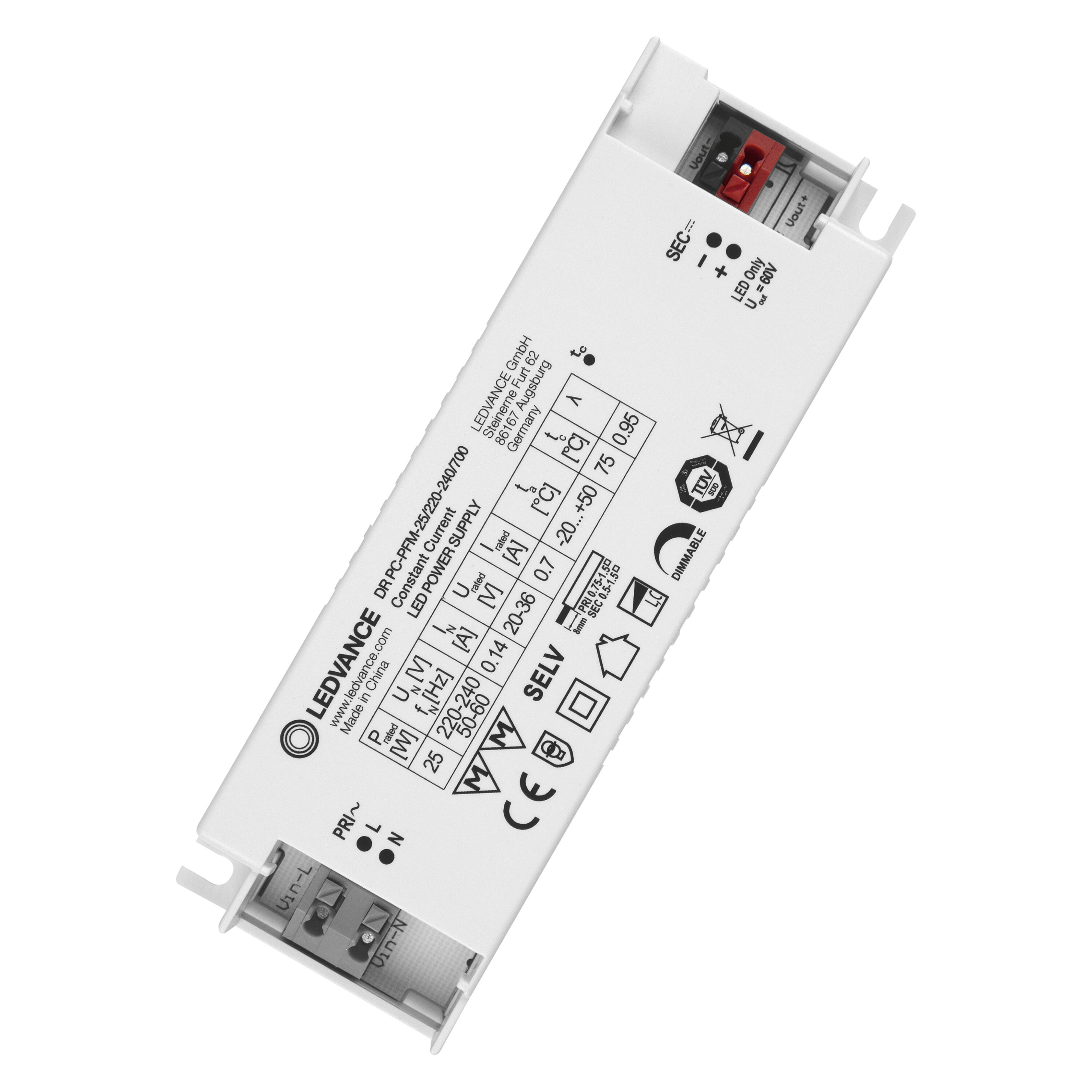

Ledvance led driver dynamic, output voltage 20 - 36V, output power 25W, output current 700mA, dimmable phase cut, dimmable phase cut, dimmable with push-button, dimming manufacturer specific, suitable for constant current, housing plastic housing, degree of protection (IP) IP20.

View all
Regular price
$22.37 USD
excl VAT

In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 12 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 5 - 6 business days

Description
Specifications
Downloads

Constant current LED driver with phase-cut dimming interface. Product features include availability in 13 W, 18 W, 25 W, and 35 W. It has an independent installation with an optional Cable Clamp Kit. The product is dimmable on the leading edge and trailing edge, and from 10 to 100 %. Its lifetime is up to 50,000 h at maximum tc temperature. It has a type of protection: IP20. Dedicated with constant output current, it operates on low ripple current of less than 5%. It operates on a supply voltage of 220 to 240 V and an operating frequency of 50/60 Hz. It is operated with less than 60 V: Safety extra-low voltage (SELV). It has reversible overtemperature, overload, short-circuit, and open-circuit protection.

Product benefits include enabling installation with commonly used leading-edge and trailing-edge dimmers. It comes with a 5-years guarantee and has a slim housing for narrow installations. It has high efficiency and reliability.

Areas of application include its suitability for LED luminaires and LED modules, being applicable for luminaires of protection classes I and II, and for indoor SELV installations. It can be used in offices, shopping centers, hospitals, restaurants, and hotels. The equipment comes with accessories like a Cable Clamp Kit to ensure proper strain relief.
