Ledvance LED driver - 4058075239791
Notice: This product will be discontinued in the future
Ledvance led driver static, output voltage 25 - 40V, output power 40W, output current 1050mA, without dimming function, suitable for constant current, housing plastic housing, degree of protection (IP) IP20.
Notice: This product will be discontinued in the future
Description

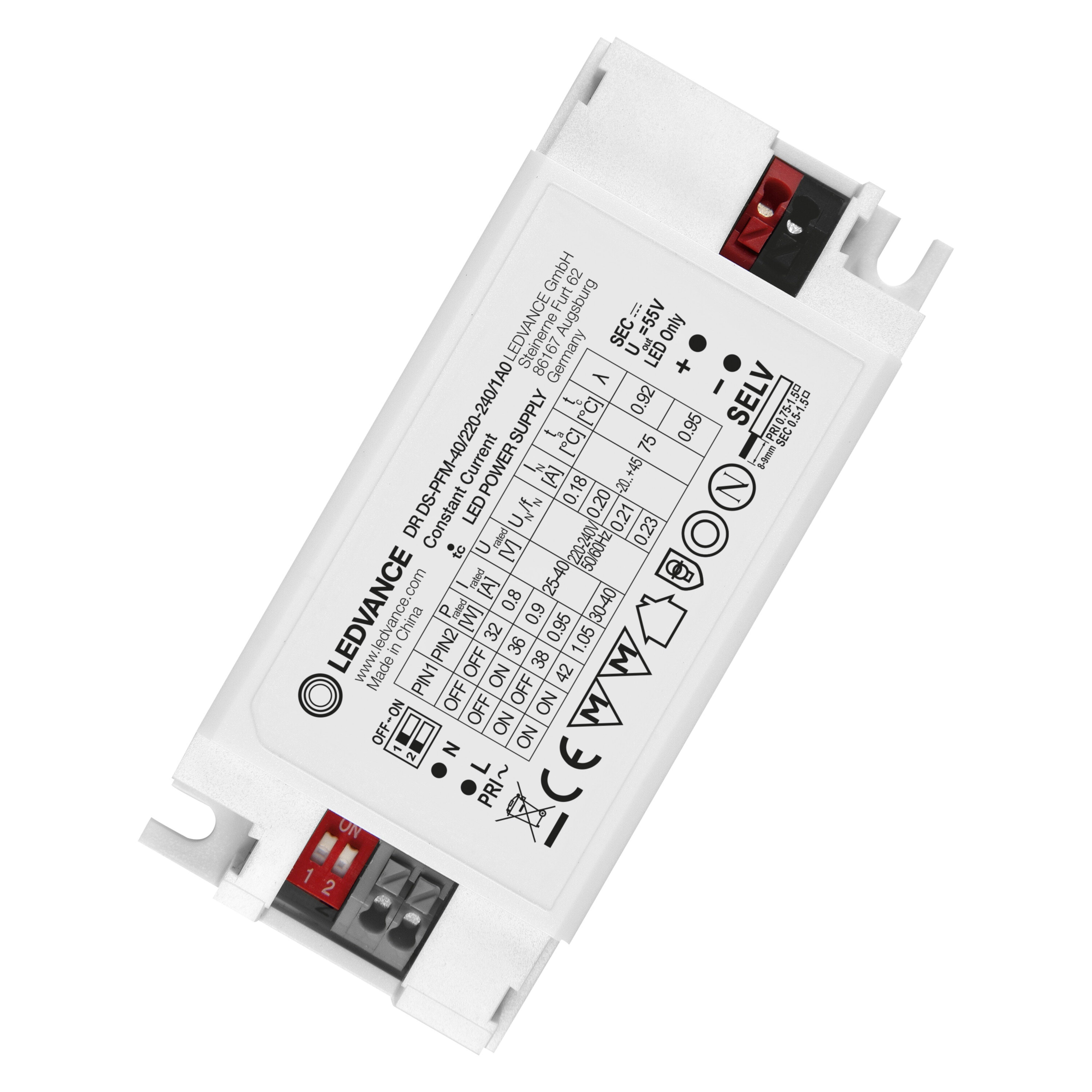

Constant current LED driver with dip-switch current setting. Product features include availability in 20 W, 30 W, 40 W. There is an option for independent installation with a Cable Clamp Kit. The product's lifespan extends up to 50,000 hours at a maximum temperature. It has a protection type of IP20 and a low ripple current of less than 5%. It operates on a supply voltage of 220…240 V and a frequency of 50/60 Hz. This product ensures safety according to EN 61347-1, 61347-2-3, 61347-2-13, and 62384. It also assures immunity according to EN 61547.
The product benefits include high flexibility due to adjustable output currents via dip switch and low flickering, enabling high light quality and good visual comfort. It also comes with a 5-year guarantee. The slim housing makes it suitable for narrow installations. It is characterized by high efficiency and reliability.
This product is suitable for LED luminaires and LED modules. It can be applied to luminaires of protection classes I and II and is suitable for indoor SELV installations. It can be used in:
- Offices
- Shopping Centers
- Hospitals
- Restaurants
- Hotels
and it is suitable for a broad range of luminaires due to a wide range of dip switch currents. The equipment comes with a Cable Clamp Kit to ensure proper strain relief.
