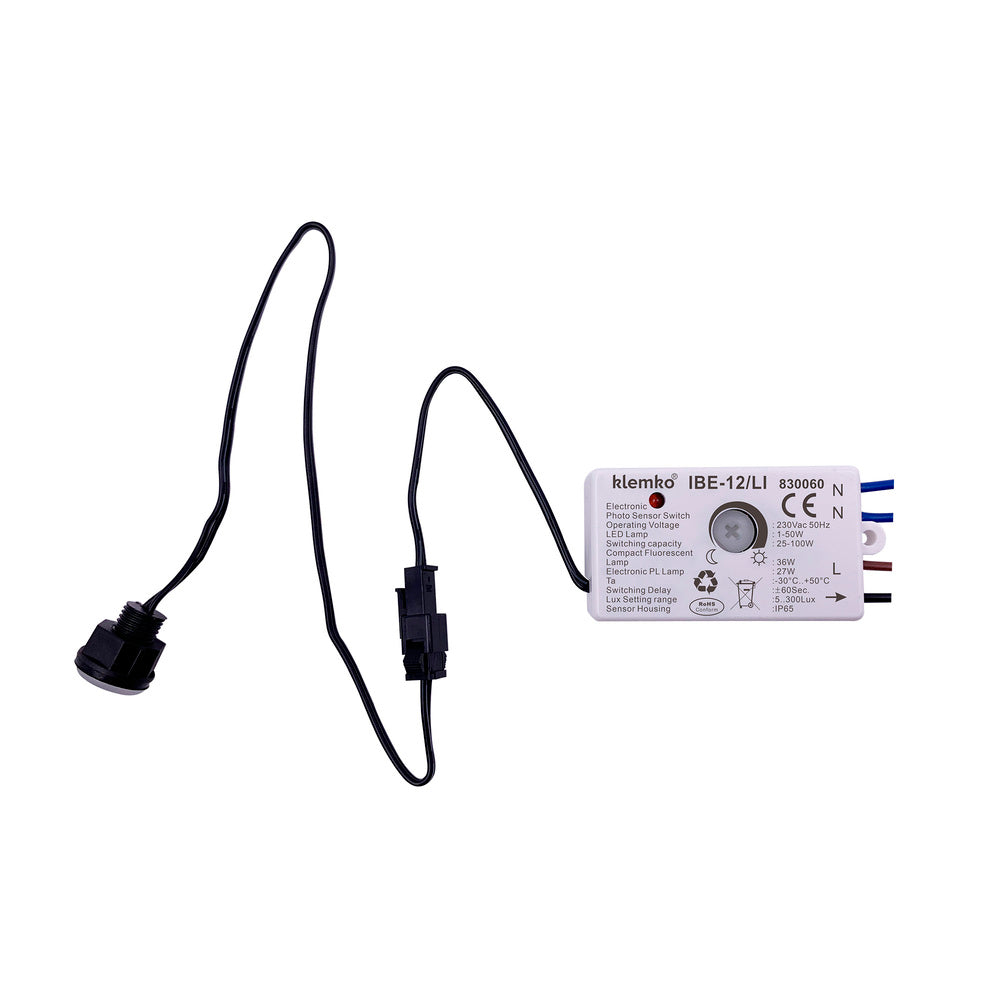

Klemko IB Twilight Switch - 830060

Klemko IB Twilight Switch - 830060
Klemko IB Twilight Switch - 830060
Image may vary slightly
See specifications for accurate information.
Reference: E28CB
Brand: Klemko
Mfr. Part: 830060

The Klemko twilight switch IBE-12/LI is ideally suited for installation in lighting fixtures, wall boxes and switch boxes, among other things. The maximum switching power is 100W. The sensor cable may be extended to a maximum of 100 meters. In addition, the IBE recessed switches are applicable for virtually any light source. The turn-on and turn-off delay allows you to set the light brightness at which the switch should turn on and off. Dimensions (LxWxH): 50x26x24mm. Power: LED lighting: 1 - 50W. Inductive load: 5 - 36W.

View all
$34.17
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 89 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Klemko twilight switch IBE-12/LI is ideally suited for installation in lighting fixtures, wall boxes and switch boxes, among other things. The maximum switching power is 100W. The sensor cable may be extended to a maximum of 100 meters. In addition, the IBE recessed switches are applicable for virtually any light source. The turn-on and turn-off delay allows you to set the light brightness at which the switch should turn on and off. Dimensions (LxWxH): 50x26x24mm. Power: LED lighting: 1 - 50W. Inductive load: 5 - 36W.

Downloads

Specifications

Type of sensor
Separate light sensor
Contacts
1 make contact (NO)
Engaging brightness (lx)
5 lx to 300 lx
Switching-off brightness (lx)
10 lx to 600 lx
Switch-off delay (s)
30
Switching-on delay (s)
30
Max. switching power (W)
100
Max. switching power LED (W)
50
With automatic night switch-off
No
Mounting method
Flush mounted (plaster)
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Halogen free
No
Color
White
Nominal voltage (V)
230
Max. switching current (resistive load) (A)
0.45
Operating temperature (°C)
-30 °C to 50 °C
Suitable for degree of protection (IP)
IP65
With DALI interface
No
Width (mm)
The product's width without packaging.
32
Height (mm)
The product's height without packaging.
15
