Jung WG800 Wall Outlet Box (WCD Switchgear) - 822N

Jung WG800 Wall Outlet Box (WCD Switchgear) - 822N
Jung WG800 Wall Outlet Box (WCD Switchgear) - 822N
Image may vary slightly
See specifications for accurate information.
Reference: E2U5E
Brand: Jung
Mfr. Part: 822N

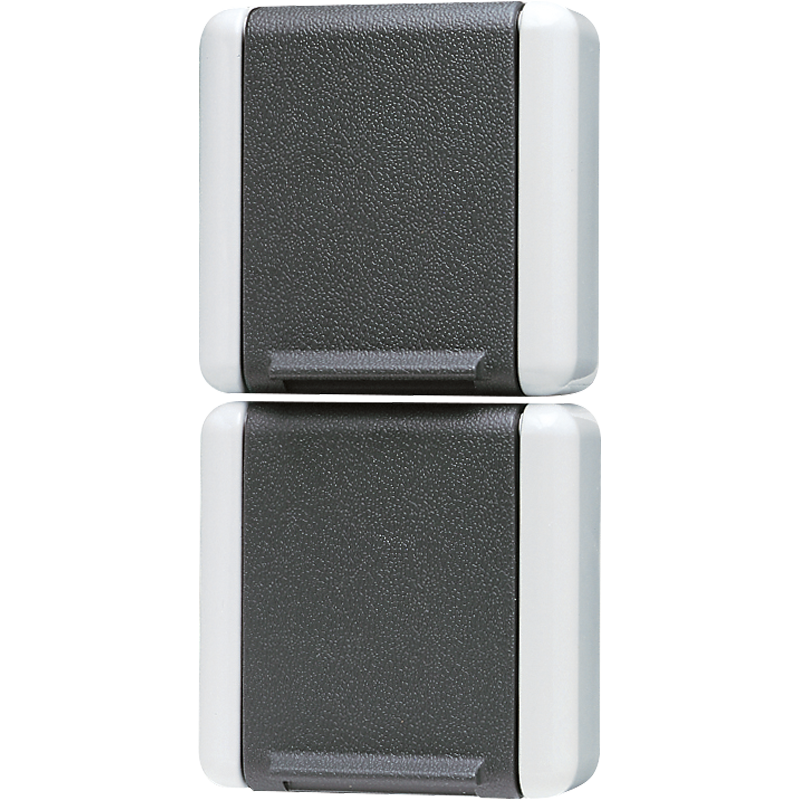

This double socket outlet from Jung's WG 800 series features hinged lids and protective earth. By means of plug-in clips, the socket is attached to its substrate. The socket is suitable for vertical mounting. Furthermore, the housing of this socket outlet is gray in color and the hinged lids have an anthracite color. Please note that this socket outlet is only a top section and must still be combined with a base. An under tray should be ordered separately.

View all
$22.53
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.96 / 5

515 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This double socket outlet from Jung's WG 800 series features hinged lids and protective earth. By means of plug-in clips, the socket is attached to its substrate. The socket is suitable for vertical mounting. Furthermore, the housing of this socket outlet is gray in color and the hinged lids have an anthracite color. Please note that this socket outlet is only a top section and must still be combined with a base. An under tray should be ordered separately.

Downloads

pdf
Download

Specifications

Model
Protective contact (SCHUKO)
Protective contact
Yes
Protective earth pin round
No
Number of active pins (round)
2
With signal lamp
No
With built-in USB power supply
No
Number of units
2
Number of socket outlets switchable
0
Number of phases
1
Connection type
Push-in clamp
With hinged lid
Yes
With enhanced contact protection
No
Label space/information surface
No
Color
Grey
RAL-number (similar)
7035
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
No special power supply
Mounting method
Surface mounted (plaster)
Type of fastening
Mounting with screw
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Halogen free
Yes
Surface protection
The type of surface protection of the component.
Other
Surface finishing
Glossy
Anti-bacterial treatment
No
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current (A)
16
Nominal voltage (V)
250
Suitable for degree of protection (IP)
IP44
Width of device (mm)
75
Height of device (mm)
151
Depth of device (mm)
0
