Jung Motion Sensor Element - DWPM17360WW

Notice: This product is discontinued

Discontinued

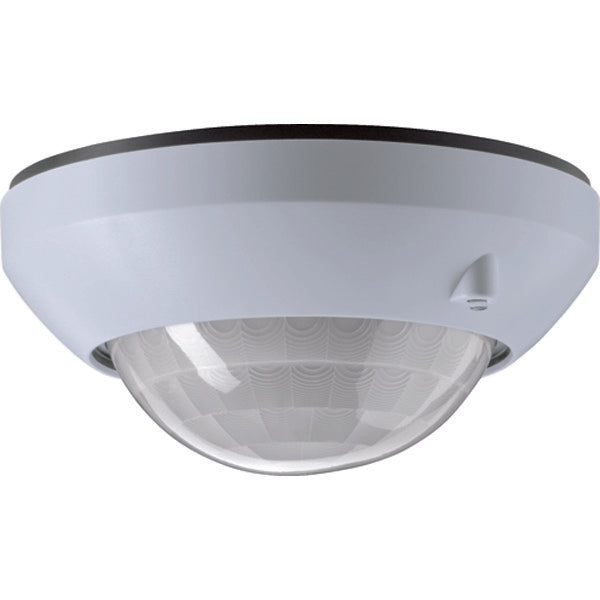

Jung Motion Sensor Element - DWPM17360WW
Jung Motion Sensor Element - DWPM17360WW
Image may vary slightly
See specifications for accurate information.
Reference: E2WDE
Brand: Jung
Mfr. Part: DWPM17360WW

Jung motion sensor element, plastic, white, surface-mounted, presence detector version, protection category (IP) IP20, response sensitivity adjustable, response brightness adjustable, diameter range on floor 20m, halogen-free, angle range horizontal 360°, quality class other.

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Jung motion sensor element, plastic, white, surface-mounted, presence detector version, protection category (IP) IP20, response sensitivity adjustable, response brightness adjustable, diameter range on floor 20m, halogen-free, angle range horizontal 360°, quality class other.

Downloads

Compliance and Certification (EN)
pdf
Download

Specifications

Mounting method
Surface mounted (plaster)
Constant light control
No
HVAC-control
No
Networkable
No
Suitable for wireless transmission
No
Creep-under protection
No
Mounting height (m)
3
Max. transmission range sideways (m)
10
Diameter detection range on floor (m)
20
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
Yes
Dim function with dimmer basic element
No
Animal zone
No
Staircase monitoring
No
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Other
Halogen free
Yes
Detection angle horizontal (°)
360 ° to 360 °
RAL-number (similar)
9010
