Jung ENet Switch Actuator Bus System - FMASPF10UP

Jung ENet Switch Actuator Bus System - FMASPF10UP
Jung ENet Switch Actuator Bus System - FMASPF10UP

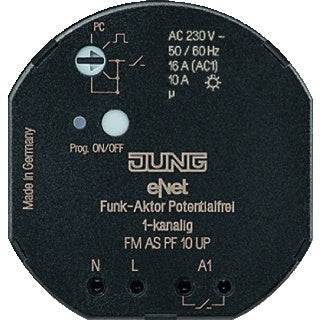

Image may vary slightly
See specifications for accurate information.
Reference: E343J
Brand: Jung
Mfr. Part: FMASPF10UP

This eNet switch/pulse actuator from Jung is suitable for switching v lighting. The 1-gang switching actuator is operated with suitable wireless eNet transmitters. Furthermore, this radio switch/pulse actuator must be mounted in a flush-mounting box according to DIN 49073 in combination with a suitable cover. The Jung eNet switch/pulse actuator features the following functionalities: Operating mode switch for switching to switch/pulse actuator or parameterization via the eNet server. State feedback to radio transmitter. Scene operation possible. Status display with LED.

View all
$123.32 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 13 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

This eNet switch/pulse actuator from Jung is suitable for switching v lighting. The 1-gang switching actuator is operated with suitable wireless eNet transmitters. Furthermore, this radio switch/pulse actuator must be mounted in a flush-mounting box according to DIN 49073 in combination with a suitable cover. The Jung eNet switch/pulse actuator features the following functionalities: Operating mode switch for switching to switch/pulse actuator or parameterization via the eNet server. State feedback to radio transmitter. Scene operation possible. Status display with LED.

Downloads

Compliance and Certification (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
eNet
Radio frequent bidirectional
Yes
Mounting method
Flush mounted (plaster)
Width in number of modular spacings
1
Local operation/hand operation
No
With LED indication
No
Number of digital inputs
0
Max. switching power
2300 W
Suitable for C-load
Yes
Max. number of switching contacts
1
Max. switching current
16 A
Rated operating voltage
230..230 V
Different phases connectable
No
With bus connection
Yes
Modular expandability
No
