Reference: E343K
Brand: Jung
Mfr. Part: FMAS26UP

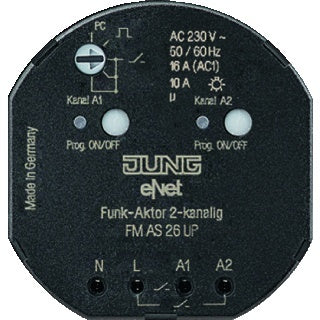

This eNet switch/pulse actuator from Jung is suitable for switching lights and motors. The 2-gang switching actuator is operated with suitable wireless eNet transmitters. Furthermore, this radio switch/pulse actuator must be installed in a flush-mounted box in accordance with DIN 49073 in combination with a suitable cover. The Jung eNet switch/pulse actuator features the following functionalities: Operating mode switch for switching to switch/pulse actuator together for both outputs or parameterization via the eNet server. Independent switching of two electrical loads.

View all
Note: product cannot be returned
$159.10
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 18 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This eNet switch/pulse actuator from Jung is suitable for switching lights and motors. The 2-gang switching actuator is operated with suitable wireless eNet transmitters. Furthermore, this radio switch/pulse actuator must be installed in a flush-mounted box in accordance with DIN 49073 in combination with a suitable cover. The Jung eNet switch/pulse actuator features the following functionalities: Operating mode switch for switching to switch/pulse actuator together for both outputs or parameterization via the eNet server. Independent switching of two electrical loads.

Downloads

Compliance and Certification (EN)
pdf
Download

Specifications

Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
eNet
Radio frequent bidirectional
Yes
Mounting method
Flush mounted (plaster)
Width in number of modular spacings
1
Local operation/hand operation
No
With LED indication
No
Number of digital inputs
0
Max. switching power (W)
1380
Suitable for C-load
Yes
Max. number of switching contacts
2
Max. switching current (A)
16
Rated operating voltage (V)
230 V to 230 V
Different phases connectable
No
With bus connection
Yes
Modular expandability
No
