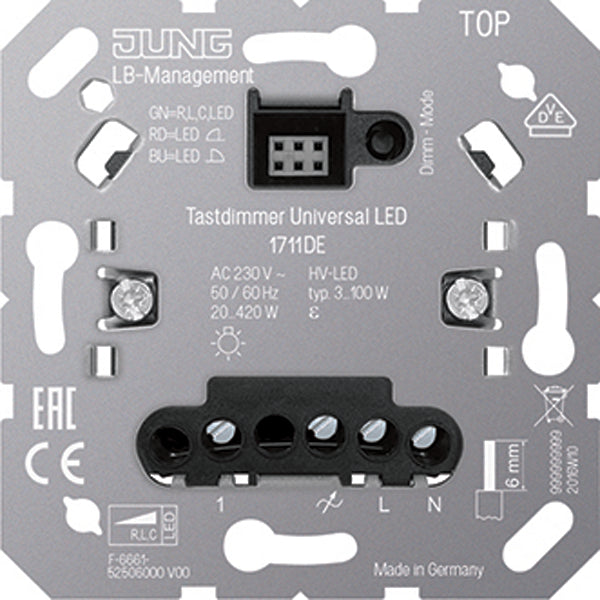

Jung Dimmer - 1711DE

Jung Dimmer - 1711DE
Jung Dimmer - 1711DE
Image may vary slightly
See specifications for accurate information.
Reference: E2WCJ
Brand: Jung
Mfr. Part: 1711DE

Jung dimmer, aluminum, control mode push button, load type universal, rated power 20 - 420VA, composition basic element, flush mount, dimmable phase cut, suitable for application with busy, dimmable phase cut, rated voltage 230V, connection mode screw terminal, conductor cross section 0.5 - 4mm².

View all
$124.95
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 23 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

Jung dimmer, aluminum, control mode push button, load type universal, rated power 20 - 420VA, composition basic element, flush mount, dimmable phase cut, suitable for application with busy, dimmable phase cut, rated voltage 230V, connection mode screw terminal, conductor cross section 0.5 - 4mm².

Downloads

Compliance and Certification (EN)
pdf
Download

Specifications

Assembly arrangement
Basic element
Method of operation
Push button
App control via Bluetooth
No
Dimming phase cut-on
Yes
Dimming phase cut-off
Yes
Serial dimmer
No
Type of load
Universal
Substation input
Yes
Light value memory
Yes
Applicable with button
Yes
Applicable with movement sensor
Yes
Applicable with presence indicator
Yes
Applicable with time switch/timer
Yes
Applicable with transmission button
Yes
Applicable with infrared button
No
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with claw and screw
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Other
Halogen free
Yes
Surface protection
The type of surface protection of the component.
Other
Transparent
No
Nominal voltage (V)
230 V to 230 V
Frequency (Hz)
50 Hz to 60 Hz
Connection type
Screwed terminal
Core cross section (mm²)
0.5 mm² to 4 mm²
Width of device (mm)
72
Height of device (mm)
72
Depth of device (mm)
35
