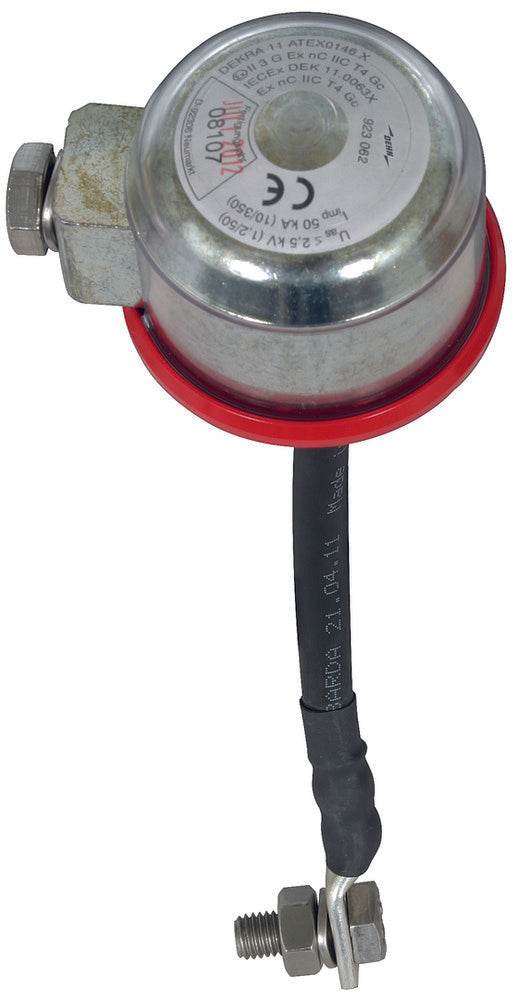

Isolating Spark Gap For Ex Area With Connecting Cable Cu 25mm2 L 300mm - 923062

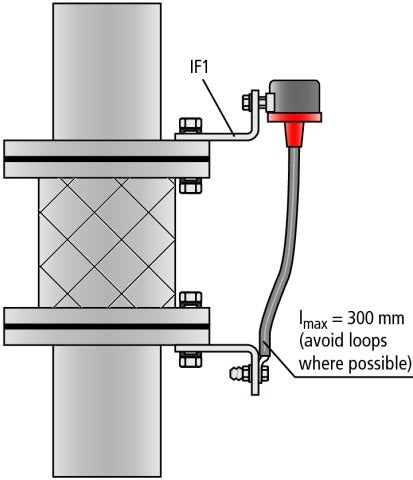

This is an Ex isolating spark gap designed for indirectly connecting or earthing functionally isolated installation parts under lightning conditions. It is suitable for safe installation in Ex zone 2 areas with gases. The device is ATEX-certified and is used for lightning equipotential bonding compliant with IEC 62305 in hazardous areas (Zone 2). It features a nominal discharge lightning impulse current (8/20) of 50kA, a lightning impulse current (10/350) of 2.5kA, a nominal spark-over voltage of 300kV, a nominal power frequency follow current interrupting rating of 300V, and a stainless steel 304 (RVS 304 V2A) flange connection. It is explosion-proof with an IP rating of IP54.
- Regular price
- $292.98 USD
We sell only to registered businesses
Description
This is an Ex isolating spark gap designed for indirectly connecting or earthing functionally isolated installation parts under lightning conditions. It is suitable for safe installation in Ex zone 2 areas with gases. The device is ATEX-certified and is used for lightning equipotential bonding compliant with IEC 62305 in hazardous areas (Zone 2). It features a nominal discharge lightning impulse current (8/20) of 50kA, a lightning impulse current (10/350) of 2.5kA, a nominal spark-over voltage of 300kV, a nominal power frequency follow current interrupting rating of 300V, and a stainless steel 304 (RVS 304 V2A) flange connection. It is explosion-proof with an IP rating of IP54.
