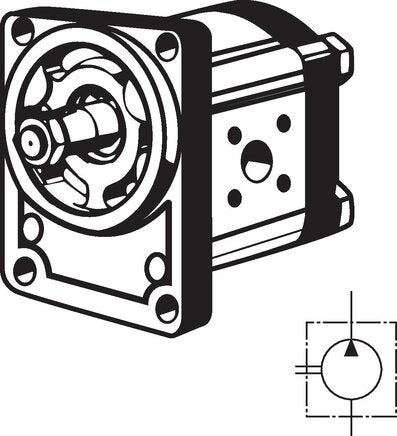

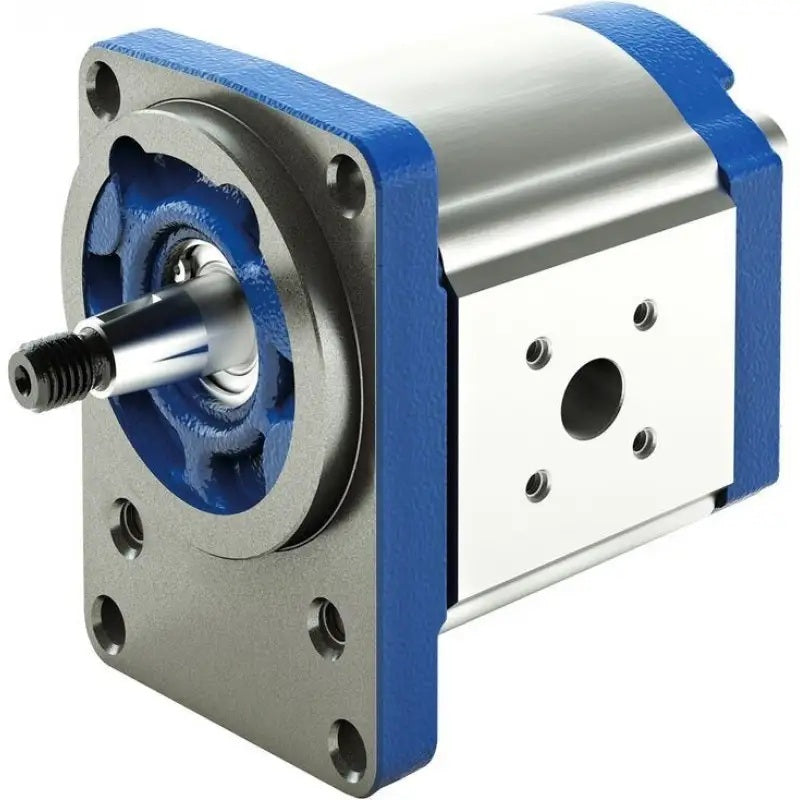

Hydraulic Gear Pump 5.5cm³ 250bar Bosch Flange Size 2 - Rexroth
External gear pump with Bosch flange size 2, 5.5 cm³ per revolution. Continuous pressure up to 250 bar. Delivers about 7.5 l/min at 1450 rpm. Clockwise rotation. Aluminium body and NBR seals, for mineral-oil hydraulics from -15 to +80 °C at ambient temperatures of -15 to +60 °C. For industrial and mobile hydraulics.
- Regular price
- $728.33 USD
We sell only to registered businesses
Description

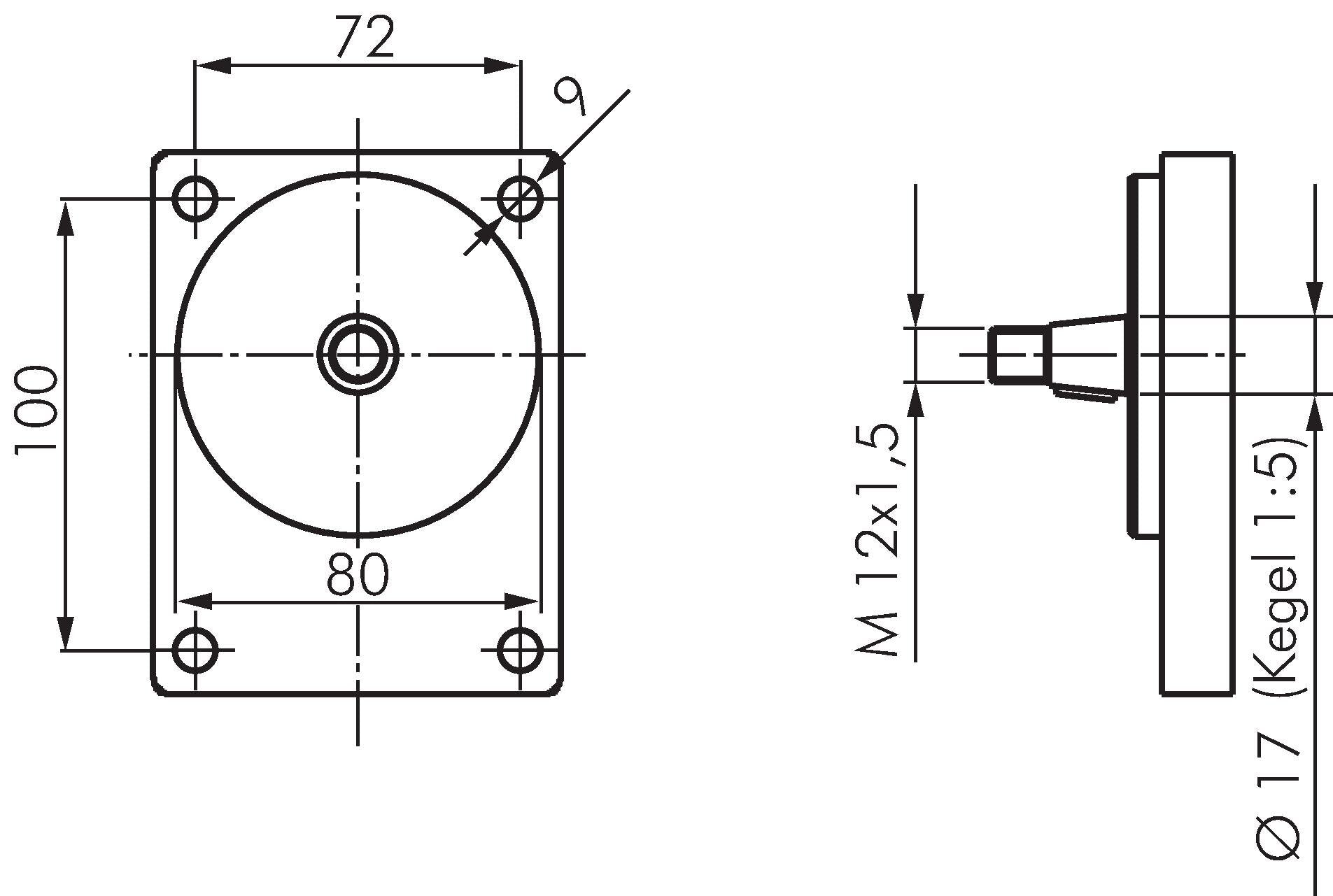

It fits drives with the German standard flange: 4-hole flange 72 x 100 mm, centring diameter 80 mm and a taper 1:5 with M12x1.5 thread (Ø 17 mm at the shaft exit). The suction port is a flange port LK 40 (4x M6) and the pressure port LK 35 (4x M6), in German hole arrangement. The flow of 7.5 l/min is a guide value for unit design, calculated at 1450 rpm with 95 % volumetric efficiency. The mounting flange is aluminium or steel, depending on supply.
Pros:
- Standard Bosch flange size 2, fits common motors and pump carriers
- For industrial and mobile hydraulics
- Same mounting flange across the whole size range
Cons:
- Pump flange fittings for the ports are not included - order them separately
Series:
Bosch Rexroth external gear pumps with Bosch flange size 2 (German standard flange, 4-hole 72 x 100 mm), for industrial and mobile hydraulics. Displacements from 4 to 22.5 cm³ per revolution deliver about 5.5 to 31 l/min at 1450 rpm, with continuous pressures of 180 to 250 bar depending on size. All pumps rotate clockwise and have a taper 1:5 with M12x1.5 thread (Ø 17 mm at the shaft exit), a centring diameter of 80 mm and flange ports for the suction and pressure lines in German hole arrangement. Aluminium body, mounting flange in aluminium or steel, NBR seals, for mineral-oil hydraulic fluids from -15 to +80 °C at ambient temperatures of -15 to +60 °C. Flow figures are guide values for unit design, calculated with 95 % volumetric efficiency.
