HVI Power Conductor 27mm Cu Preassembled Head Unit L6M Black - 819160

HVI Power Conductor 27mm Cu Preassembled Head Unit L6M Black - 819160
HVI Power Conductor 27mm Cu Preassembled Head Unit L6M Black - 819160
Image may vary slightly
See specifications for accurate information.
Reference: E3PWQ
Brand: DEHN

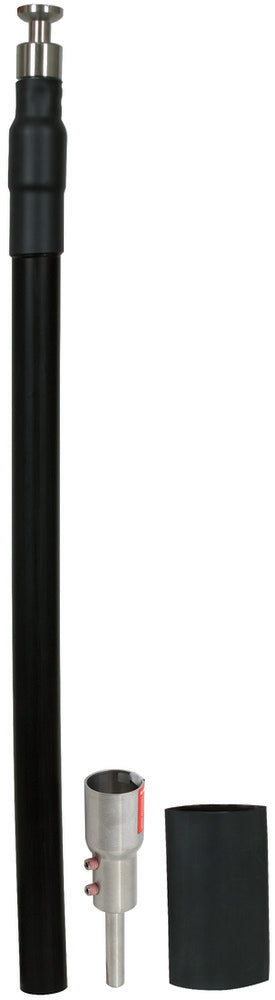

The HVI Power Air-Termination Mast is a high-voltage-resistant, insulated down conductor for lightning protection. It retains separation from conductive components as per IEC/EN 62305-3 to prevent dangerous flashover between the external lightning protection system and indoor conductive parts. It features a special sheath that discharges high lightning impulse voltages, aiding the prevention of creeping discharge. The pre-assembled unit (in black) comes with a head piece and a loose connection element. It ensures a separation distance of ≤ 90 cm in air and ≤ 180 cm in solid material. The conductor, made from copper, has a cross-section of 25mm², composed of seven wires, and the exterior is covered with XLPE (VPE).

View all
Note: product cannot be returned
Regular price
$721.55
excl VAT

In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Description
Downloads

The HVI Power Air-Termination Mast is a high-voltage-resistant, insulated down conductor for lightning protection. It retains separation from conductive components as per IEC/EN 62305-3 to prevent dangerous flashover between the external lightning protection system and indoor conductive parts. It features a special sheath that discharges high lightning impulse voltages, aiding the prevention of creeping discharge. The pre-assembled unit (in black) comes with a head piece and a loose connection element. It ensures a separation distance of ≤ 90 cm in air and ≤ 180 cm in solid material. The conductor, made from copper, has a cross-section of 25mm², composed of seven wires, and the exterior is covered with XLPE (VPE).
