HVI Ex P85 Holder StSt For Conductor D 27mm Dist 85mm - 275454 [10 Pieces]

HVI Ex P85 Holder StSt For Conductor D 27mm Dist 85mm - 275454 [10 Pieces]
HVI Ex P85 Holder StSt For Conductor D 27mm Dist 85mm - 275454 [10 Pieces]
HVI Ex P85 Holder StSt For Conductor D 27mm Dist 85mm - 275454 [10 Pieces]
HVI Ex P85 Holder StSt For Conductor D 27mm Dist 85mm - 275454 [10 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3MN7-X10
Brand: DEHN
Mfr. Part: 275454

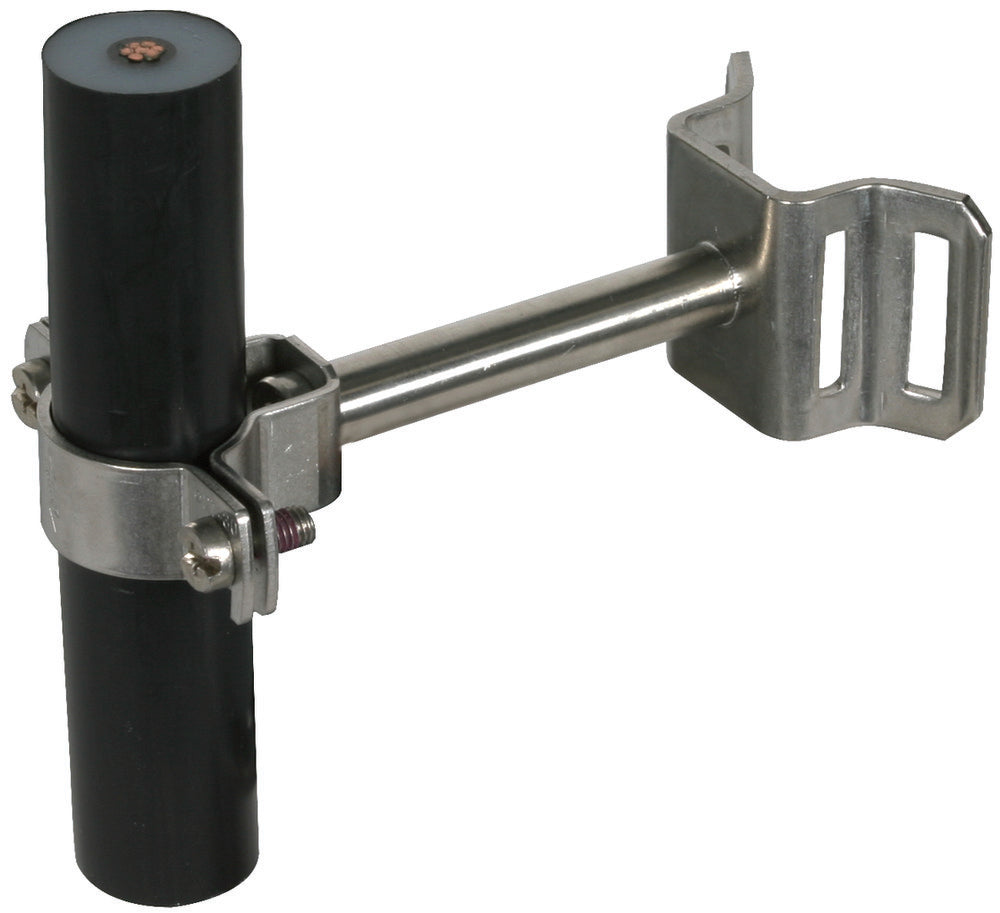

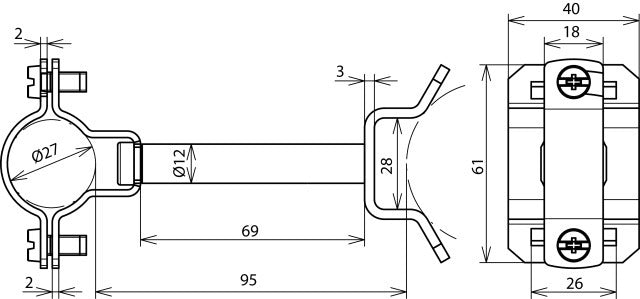

This is a conductor holder for fixing to pipes, suitable for HVI power conductor installation in explosion hazardous areas such as Ex zone 1 (gases, vapours, mists), and Ex zone 21 (dusts). It is designed to safely prevent electric sparks to adjacent metal parts when lightning current flows through the HVI power conductor. The holder features a spacer bar distance of 95mm, making it ideal for fixing on metal construction parts like facades. It is suitable for a conductor diameter of 27mm, has an installation height of 16mm and can clamp pipes with a range from 50 to 300mm. It is constructed from stainless steel (RVS 304, V2A).

Contains 10 pieces

View all
Note: product cannot be returned
$539.78
excl VAT
In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 63 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This is a conductor holder for fixing to pipes, suitable for HVI power conductor installation in explosion hazardous areas such as Ex zone 1 (gases, vapours, mists), and Ex zone 21 (dusts). It is designed to safely prevent electric sparks to adjacent metal parts when lightning current flows through the HVI power conductor. The holder features a spacer bar distance of 95mm, making it ideal for fixing on metal construction parts like facades. It is suitable for a conductor diameter of 27mm, has an installation height of 16mm and can clamp pipes with a range from 50 to 300mm. It is constructed from stainless steel (RVS 304, V2A).

Contains 10 pieces

Downloads

Specifications

Mounting type conductor
With screw clamp
Suitable for diameter round conductor (mm)
27 mm to 27 mm
Material of holder
Stainless steel V2A
Mounting type holder
Other
Material of carrier
Stainless steel V2A
Material of saddle clamp
Stainless steel V2A
Material base part
Stainless steel V2A
Pipe chucking range (mm)
50 mm to 300 mm
Wall distance (mm)
95 mm to 95 mm
Assembly height conductor holder (mm)
16
Suitable for EX-applications
Yes
