HVI Ex P240 Stainless Steel Conductor Holder D27mm 240mm With Bracket - 275455 [10 Pieces]

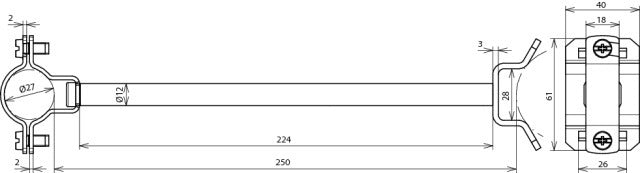

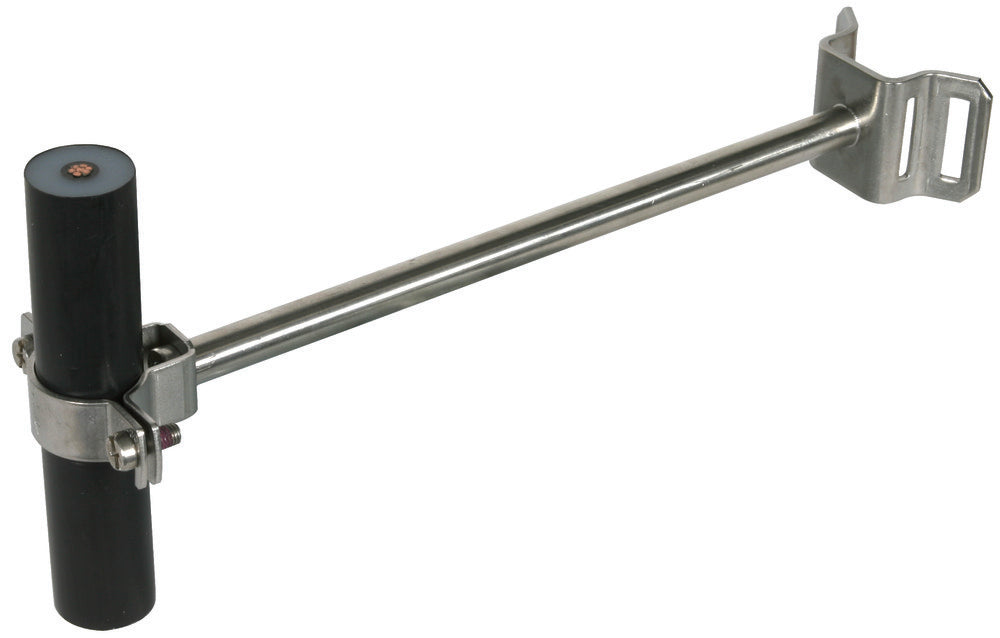

The Dehn HVI Conductor Holder is designed for securing to pipes, with an inclusive pipe clamp suitable for HVI power conductors. It is appropriate for use in explosion hazardous areas such as Ex zones 1 for gases, vapors, & mists, and Ex zone 21 for dusts. The design prevents electric sparks to adjacent metal parts when lightning current passes through the HVI power conductor. The holder has a spacer bar distance of 250mm suitable for fixing on metal construction parts. Other specifications include a construction height of 16mm, a pipe clamp range of 50 - 300mm, and is compatible with a conductor diameter of 27mm. It is made from stainless steel RVS 304 (V2A) for both the holder and carrier.
Contains 10 pieces
- Regular price
- $782.46
Description
The Dehn HVI Conductor Holder is designed for securing to pipes, with an inclusive pipe clamp suitable for HVI power conductors. It is appropriate for use in explosion hazardous areas such as Ex zones 1 for gases, vapors, & mists, and Ex zone 21 for dusts. The design prevents electric sparks to adjacent metal parts when lightning current passes through the HVI power conductor. The holder has a spacer bar distance of 250mm suitable for fixing on metal construction parts. Other specifications include a construction height of 16mm, a pipe clamp range of 50 - 300mm, and is compatible with a conductor diameter of 27mm. It is made from stainless steel RVS 304 (V2A) for both the holder and carrier.
Contains 10 pieces
