Hirschmann Multimedia CA3 Round (Industrial) Connector - 932322100

Hirschmann Multimedia CA3 Round (Industrial) Connector - 932322100
Hirschmann Multimedia CA3 Round (Industrial) Connector - 932322100
Image may vary slightly
See specifications for accurate information.
Reference: E2YA7
Brand: Hirschmann Multimedia
Mfr. Part: 932322100

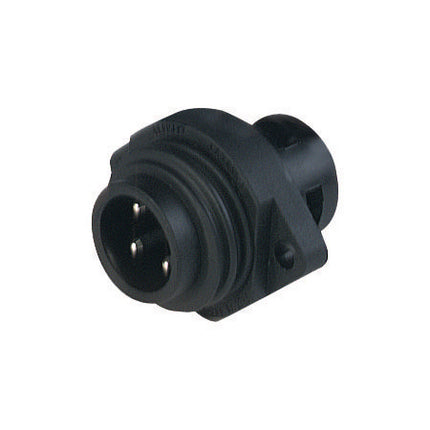

This black plug from the CA series from Hirschmann Multimedia has a pin (male) socket with 3 poles. The plug has a flange and is suitable for panel mounting. The connector can withstand a variety of temperatures from -40°C to 90°C, oil, has a protection rating of IP67 and is UL and VDE approved. The rated measurement voltage is 400V AC/250V DC and the rated measurement current is 10A DC/16A AC.

View all
Note: product cannot be returned
$7.17
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 42 - 43 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This black plug from the CA series from Hirschmann Multimedia has a pin (male) socket with 3 poles. The plug has a flange and is suitable for panel mounting. The connector can withstand a variety of temperatures from -40°C to 90°C, oil, has a protection rating of IP67 and is UL and VDE approved. The rated measurement voltage is 400V AC/250V DC and the rated measurement current is 10A DC/16A AC.

Downloads

Specifications

Contact type
Pin
Diameter connector (mm)
21.5
Number of data contacts
3
Number of power contacts
3
Type of housing
Straight
Rated current In (A)
10
Ambient temperature (°C)
-40 °C to 90 °C
Rated voltage (V)
400
Pollution degree
3
Connectable conductor cross section multi-wired (mm²)
2.5 mm² to 2.5 mm²
Electrical connection
Type of electric connection.
Screw connection
Material of contact surface
Silver
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Coating housing
Other
Material thread ring
Other
Locking mechanism
Gland nut
Inflammability class of insulation material according to with UL94
V0
Degree of protection (IP), mounted
IP67
Screened
No
Status indication
No
