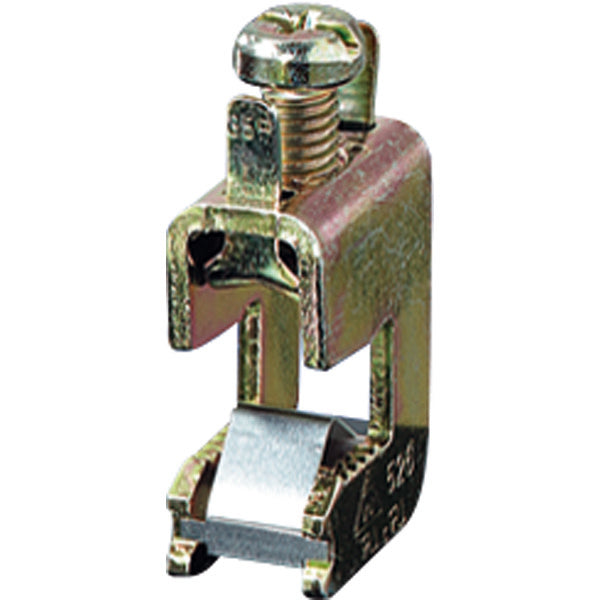

Hensel Rail Connection Terminal 35mm CU4-35MM 10MM - KS 35 Z
The Hensel Mi-distributor connector is designed for current rails with a maximum capacity of 160A. It accommodates a current rail thickness of 10mm and a width of 12 - 30mm. The connector itself has a width of 16mm, and it is suitable for the connection of band conductors, round conductors, and sector conductors. It can house 1 conductor with a maximum cross-sectional area of 35mm². This product is also compatible with direct connection terminals for a 10mm copper rail system, accepting copper lines between 4-35mm² and flexible copper rails VS 100 and VS 160.
- Regular price
- $8.37 USD
We sell only to registered businesses
Description
The Hensel Mi-distributor connector is designed for current rails with a maximum capacity of 160A. It accommodates a current rail thickness of 10mm and a width of 12 - 30mm. The connector itself has a width of 16mm, and it is suitable for the connection of band conductors, round conductors, and sector conductors. It can house 1 conductor with a maximum cross-sectional area of 35mm². This product is also compatible with direct connection terminals for a 10mm copper rail system, accepting copper lines between 4-35mm² and flexible copper rails VS 100 and VS 160.
