Hensel ENYCASE Surface mounted Wall/Ceiling Box - KF 1610 G

Hensel ENYCASE Surface mounted Wall/Ceiling Box - KF 1610 G
Hensel ENYCASE Surface mounted Wall/Ceiling Box - KF 1610 G
Image may vary slightly
See specifications for accurate information.
Reference: E35MT
Brand: Hensel
Mfr. Part: KF 1610 G

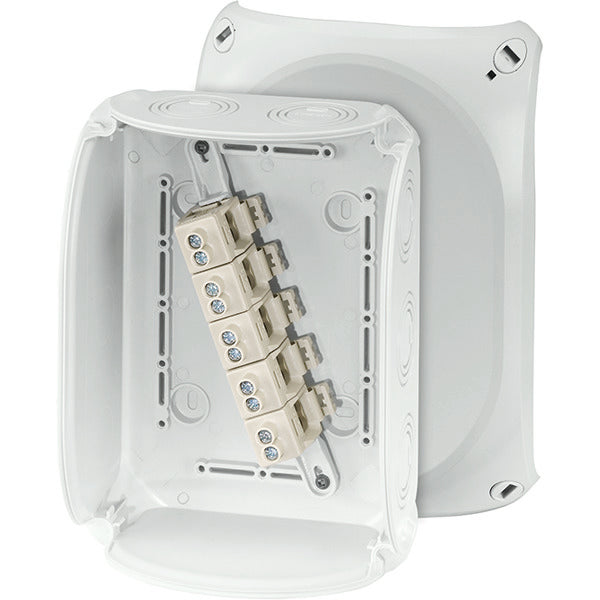

Hensel ENYCASE KF surface-mounted wall/ceiling box, plastic, gray, (lxwxh) 210x155x92mm, depth 92mm, wall/ceiling mounting, equipped with terminal, rectangular, max. Conductor cross-section 16mm², rated insulation voltage Ui 690V, for pipe diameter other, housing penetration type breakout port, rear entry, 10 entries.

View all
$70.52
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 24 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Hensel ENYCASE KF surface-mounted wall/ceiling box, plastic, gray, (lxwxh) 210x155x92mm, depth 92mm, wall/ceiling mounting, equipped with terminal, rectangular, max. Conductor cross-section 16mm², rated insulation voltage Ui 690V, for pipe diameter other, housing penetration type breakout port, rear entry, 10 entries.

Downloads

Specifications

Max. conductor cross section (mm²)
16
Shape
Rectangular
Mounting method
Wall-/ceiling mounting
For tube diameter
Other
Inlet from the rear
Yes
Length (mm)
210
Width (mm)
The product's width without packaging.
155
Depth (mm)
The product's depth without packaging.
92
Tackable
No
Number of inlets
10
Type of housing feed-through
Preembossing
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Halogen free
Yes
Surface protection
The type of surface protection of the component.
Untreated
Color
Grey
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP66/IP67
Cover model
Other
Cover attachment
Screwed
Castable
No
With casting compound
No
Sealable
Yes
Rated insulation voltage Ui (V)
690
Circuit integrity
None
With screening
No
Weatherproof
Yes
Working temperature (°C)
-25 °C to 70 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
