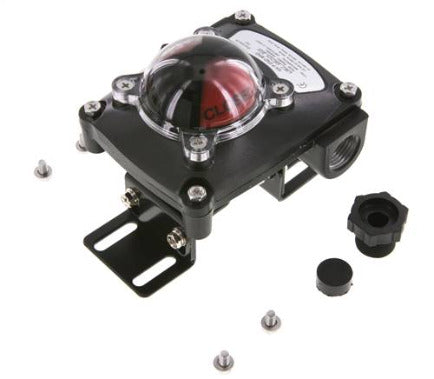

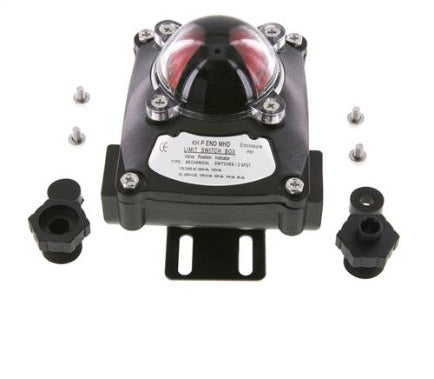

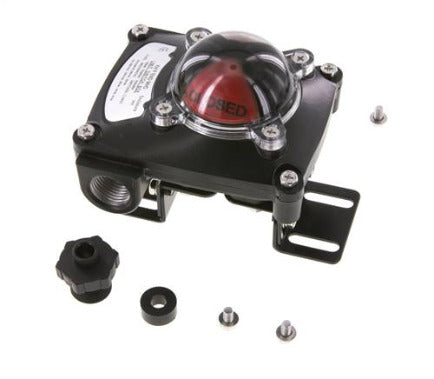

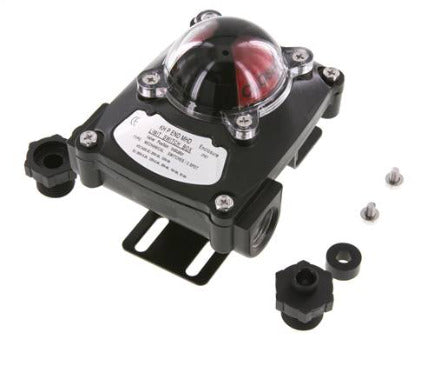

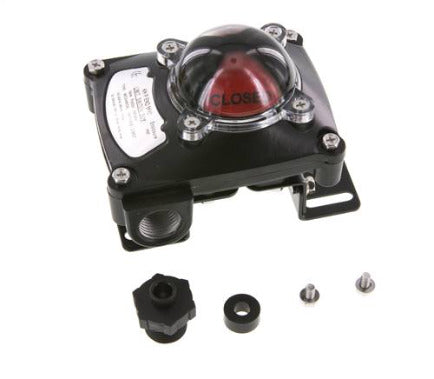

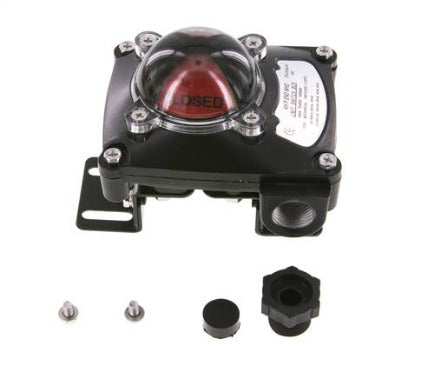

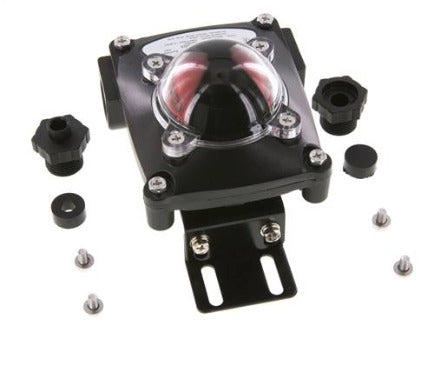

Heavy-Grade Limit Switch Box DPDT Micro Switch 8-250V(AC/DC)/5A
This limit switch box checks the end positions for pneumatic actuated quarter-turn valves. The box is mounted on top of the actuator and detects the shaft position with built-in switches. The housing is made of die-cast aluminum, the cover is polycarbonate, the selector shaft is stainless steel, seals are NBR, the assembly bridge is painted steel, and screws are stainless steel/zinc-plated steel. Suited for temperatures between -25 and +85 °C (-13 and +185 °F). The switch box is suitable for various mounting holes patterns and utilizes a micro-switch with a 8 - 250 V (AC/DC) / 5 A capacity.
- Regular price
- $155.68 USD
We sell only to registered businesses
Description
This limit switch box checks the end positions for pneumatic actuated quarter-turn valves. The box is mounted on top of the actuator and detects the shaft position with built-in switches. The housing is made of die-cast aluminum, the cover is polycarbonate, the selector shaft is stainless steel, seals are NBR, the assembly bridge is painted steel, and screws are stainless steel/zinc-plated steel. Suited for temperatures between -25 and +85 °C (-13 and +185 °F). The switch box is suitable for various mounting holes patterns and utilizes a micro-switch with a 8 - 250 V (AC/DC) / 5 A capacity.
Pros:
- Fits mounting hole patterns 80 x 30 and 130 x 30 mm
- Shaft height adjustable from 15 to 25 mm
- Simple and robust micro switch
- Dust-tight and temporary submersible (IP67)
- Large red and black visual position indicator
S-TC7P series
Engineered with a robust metal housing, the Heavy-Grade series is suitable for temperatures ranging from -25 to +85°C. Compatible with mounting hole patterns of 50 x 25, 80 x 30, and 130 x 30 mm, this series offers adjustable shaft height (15-25 mm). Offering resilience and precision, it incorporates a dependable micro-switch for enhanced performance in demanding environments.
