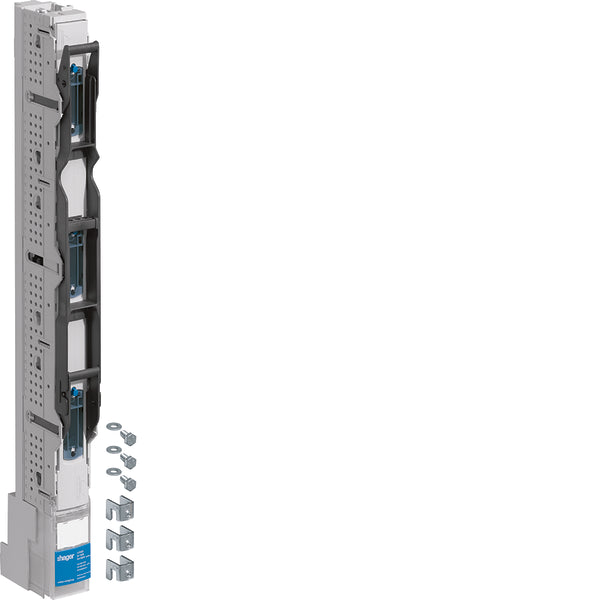

Hager Weber Pattern Load Separation Strip - LVSG00SPX

Hager Weber Pattern Load Separation Strip - LVSG00SPX
Hager Weber Pattern Load Separation Strip - LVSG00SPX
Image may vary slightly
See specifications for accurate information.
Reference: E33HC
Brand: Hager
Mfr. Part: LVSG00SPX

Hager Weber pattern load disconnect strip, fuse switch design, DIN size fuse pattern NH00, center distance rail 185 mm, rated continuous current Iu 160A, main circuit connection type screw terminal, 3 poles, max rated operating voltage Ue at A 690V.

View all
Note: product cannot be returned
$233.15
excl VAT
In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 15 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

Hager Weber pattern load disconnect strip, fuse switch design, DIN size fuse pattern NH00, center distance rail 185 mm, rated continuous current Iu 160A, main circuit connection type screw terminal, 3 poles, max rated operating voltage Ue at A 690V.

Downloads

Other Documentation (EN)
pdf
Download

Specifications

Model
Fuse switch disconnector
Double interrupting
No
Rated permanent current Iu (A)
160
Distance between rail centre, 40 mm
No
Distance between rail centre, 50 mm
No
Distance between rail centre, 60 mm
No
Distance between rail centre, 100 mm
No
Distance between rail centre, 185 mm
Yes
Max. rated operation voltage Ue AC (V)
690
Conditioned rated short-circuit current Iq (kA)
120
Type of electrical connection of main circuit
Screw connection
Number of poles
3
Construction size fuse insert
NH00
Release indication
None
