Hager Tehalit Outer Corner Piece Wall channel - BR6510039016

Hager Tehalit Outer Corner Piece Wall channel - BR6510039016
Hager Tehalit Outer Corner Piece Wall channel - BR6510039016
Image may vary slightly
See specifications for accurate information.
Reference: E2QSS
Brand: Hager
Mfr. Part: BR6510039016

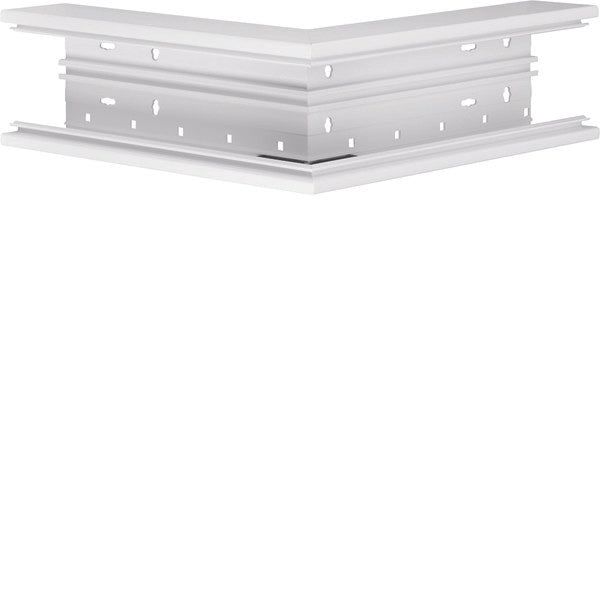

This exterior corner from Hager's BR65 series is a fixed exterior corner of 100 x 68mm (WxH) suitable for a cover width of 80mm. The angle range is 90°. Furthermore, the Hager BR65 exterior corner has a traffic white color.

View all
$53.80
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This exterior corner from Hager's BR65 series is a fixed exterior corner of 100 x 68mm (WxH) suitable for a cover width of 80mm. The angle range is 90°. Furthermore, the Hager BR65 exterior corner has a traffic white color.

Downloads

Specifications

Width (mm)
The product's width without packaging.
100
Depth (mm)
The product's depth without packaging.
68
Number of covers
1
Cover width 1 (mm)
80
Cover width 2 (mm)
0
Cover width 3 (mm)
0
Symmetric
Yes
Model
Base unit
Angle (°)
90 ° to 90 °
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Polyvinyl chloride (PVC)
Halogen free
No
Anti-bacterial treatment
No
Surface protection
The type of surface protection of the component.
Untreated
Color
White
RAL-number
9016
With protective foil
Yes
With duct connector
No
Mounting perforation in bottom
Yes
Mounting method cover
Inner lying
With cable fixing clip
No
Working temperature (°C)
-5 °C to 60 °C
