Hager Tebis Twilight Switch For DIN-Rail - EEN101

Notice: This product is discontinued

Discontinued

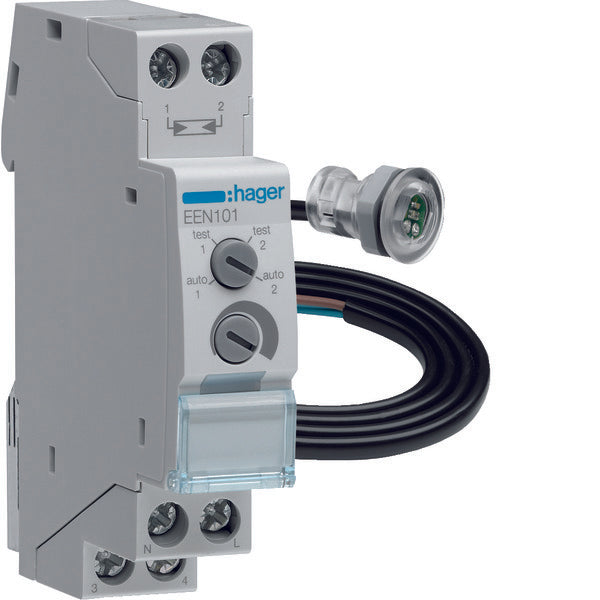

Hager Tebis Twilight Switch For DIN-Rail - EEN101
Hager Tebis Twilight Switch For DIN-Rail - EEN101
Image may vary slightly
See specifications for accurate information.
Reference: E35F7
Brand: Hager
Mfr. Part: EEN101

Hager Tebis twilight switch for din-rail, mounting type light sensor other, degree of protection (IP) IP20, degree of protection (IP) light sensor IP54, protection class light sensor II, width in module units 1, installation depth 17.8mm, adjustment range brightness value 5 - 2000lx.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Hager Tebis twilight switch for din-rail, mounting type light sensor other, degree of protection (IP) IP20, degree of protection (IP) light sensor IP54, protection class light sensor II, width in module units 1, installation depth 17.8mm, adjustment range brightness value 5 - 2000lx.

Downloads

Specifications

Rated voltage (V)
230
Rated frequency (Hz)
50 Hz to 60 Hz
Max. incandescent lamp load (W)
2300
Max. load fluorescent lamp (VA)
1000
Max. load fluorescent lamp (Duo circuit) (VA)
1000
Max. load fluorescent lamp (parallel compensated) (VA)
1000
Max. switching current (cos phi = 0.6) (A)
16
Rated switch current (A)
16
Adjustment range brightness value (lx)
5 lx to 2000 lx
With programmable overnight shutoff
No
Push button input
No
Rated voltage light sensor (V)
230
Max. conductor length light sensor (m)
0.05
Protection class light sensor
II
Mounting method light sensor
Other
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth (mm)
17.8
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Degree of protection (IP) light sensor
IP54
