Hager EPN Bistable Relay - EPN520

Notice: This product is discontinued

Discontinued

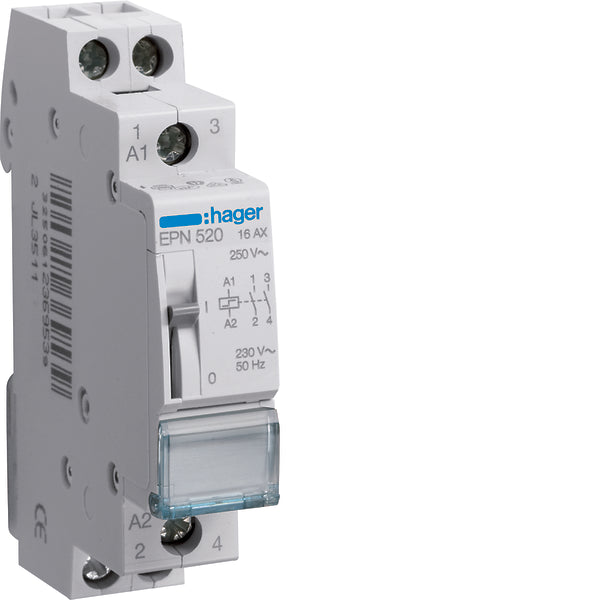

Hager EPN Bistable Relay - EPN520
Hager EPN Bistable Relay - EPN520
Image may vary slightly
See specifications for accurate information.
Reference: E2ZNS
Brand: Hager
Mfr. Part: EPN520

This Hager EPN impulse relay is suitable for controlling lighting groups up to 16A. In addition, the EPN impulse relay features contact status indication and manual switching. The auxiliary elements can be easily mounted without tools. This Hager impulse relay has 2 make contacts. Hager EPN impulse relays are available in several variations.

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

This Hager EPN impulse relay is suitable for controlling lighting groups up to 16A. In addition, the EPN impulse relay features contact status indication and manual switching. The auxiliary elements can be easily mounted without tools. This Hager impulse relay has 2 make contacts. Hager EPN impulse relays are available in several variations.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

Function
Mechanical switch
Mounting method
DIN rail
Width in number of modular spacings
17.5
Built-in depth (mm)
63
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1 (V)
230 V to 230 V
Type of control voltage 1
AC
Frequency control voltage 1 (Hz)
50 Hz to 60 Hz
Control voltage 2 (V)
110 V to 110 V
Type of control voltage 2
DC
Frequency control voltage 2 (Hz)
50 Hz to 60 Hz
Rated switch current (A)
16
Supply voltage (V)
250 V to 250 V
Voltage type of supply voltage
AC
Max. switching current (cos phi = 0.6) (A)
16
Manual override
Yes
