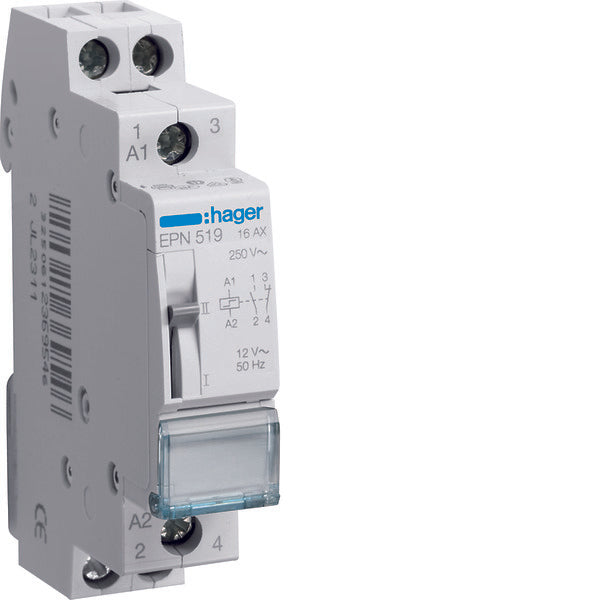

Hager EPN Bistable Relay - EPN519

Hager EPN Bistable Relay - EPN519
Hager EPN Bistable Relay - EPN519
Image may vary slightly
See specifications for accurate information.
Reference: E2ZNR
Brand: Hager
Mfr. Part: EPN519

This Hager EPN impulse relay is suitable for controlling lighting groups up to 16A. In addition, the EPN impulse relay features contact status indication and manual switching. The auxiliary elements can be easily mounted without tools. This Hager impulse relay has 1 make and 1 break contact. Hager EPN impulse relays are available in several varieties.

View all
$53.98
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 53 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 42 - 43 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

This Hager EPN impulse relay is suitable for controlling lighting groups up to 16A. In addition, the EPN impulse relay features contact status indication and manual switching. The auxiliary elements can be easily mounted without tools. This Hager impulse relay has 1 make and 1 break contact. Hager EPN impulse relays are available in several varieties.

Downloads

Specifications

Function
Mechanical switch
Mounting method
DIN rail
Width in number of modular spacings
17.5
Built-in depth (mm)
63
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Control voltage 1 (V)
12 V to 12 V
Type of control voltage 1
AC
Frequency control voltage 1 (Hz)
50 Hz to 60 Hz
Control voltage 2 (V)
0 V to 0 V
Type of control voltage 2
DC
Frequency control voltage 2 (Hz)
50 Hz to 60 Hz
Rated switch current (A)
16
Supply voltage (V)
250 V to 250 V
Voltage type of supply voltage
AC
Max. switching current (cos phi = 0.6) (A)
16
Manual override
Yes
