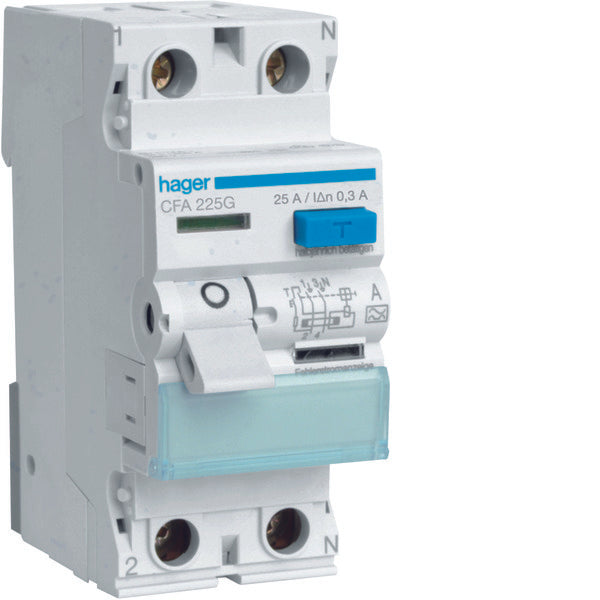

Hager Class A Ground Fault Circuit Interrupter - CFA225G

Hager Class A Ground Fault Circuit Interrupter - CFA225G
Hager Class A Ground Fault Circuit Interrupter - CFA225G
Image may vary slightly
See specifications for accurate information.
Reference: E2ZN6
Brand: Hager
Mfr. Part: CFA225G

This Hager Class A ground fault circuit interrupter features mounting-friendly Bi-Connect terminals. Removability through flexible attachment clip. This RCCB is short-circuit resistant up to 6kA with pre-insurance 63A/gL and pulse current sensitive and current surge resistant up to 250A. Using the test button, the proper functioning of the device can be verified. Hager Class A ground fault circuit breakers are available in several varieties.

View all
$156.53 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 4 - 5 business days

We sell only to registered businesses
Description
Specifications
Related products

Description

This Hager Class A ground fault circuit interrupter features mounting-friendly Bi-Connect terminals. Removability through flexible attachment clip. This RCCB is short-circuit resistant up to 6kA with pre-insurance 63A/gL and pulse current sensitive and current surge resistant up to 250A. Using the test button, the proper functioning of the device can be verified. Hager Class A ground fault circuit breakers are available in several varieties.

Specifications

Number of poles
2
Rated voltage (V)
230
Rated current (A)
25
Rated fault current (A)
0.3
Rated insulation voltage Ui (V)
500
Rated impulse withstand voltage Uimp (kV)
4
Mounting method
DIN rail
Leakage current type
A
Selective protection
No
Short-time delayed tripping
No
Short-circuit breaking capacity (Icw) (kA)
6
Surge current capacity (kA)
0.25
Voltage-type
AC
With interlocking device
No
Frequency
50 Hz
Additional equipment possible
Yes
Degree of protection (IP)i
IP20
Width in number of modular spacings
2
Built-in depth (mm)
70
Ambient temperature during operating (°C)
-25 to 40
